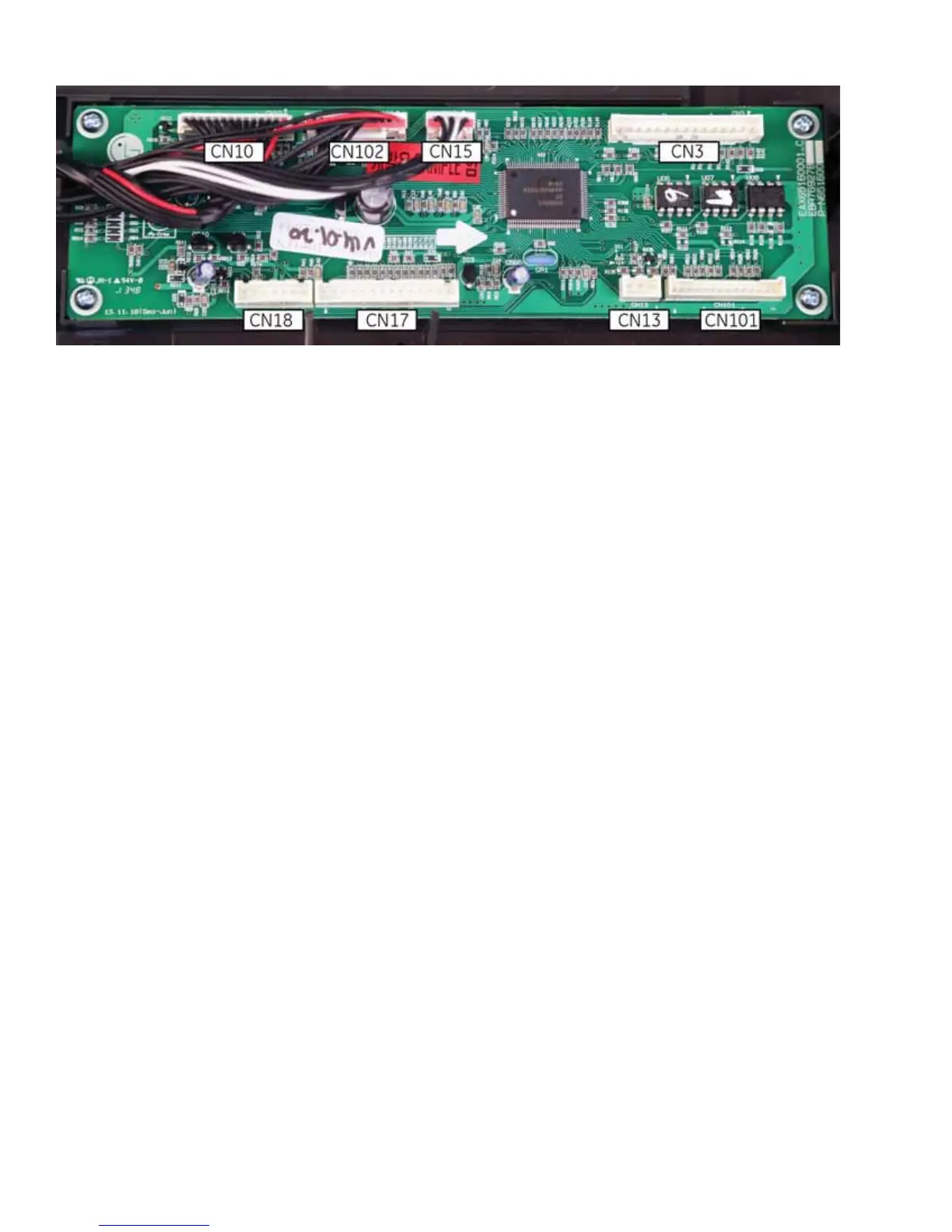

Control Board
CN3 To Relay board CN3
CN10 To Display board CN1
CN13 No Connections
CN15 To Encoder board
CN17 To Power Supply board CN17
CN18 To Power Supply board CN18
CN101 No Connections
CN102 To Keypanel CON 3
(Continued next page)
