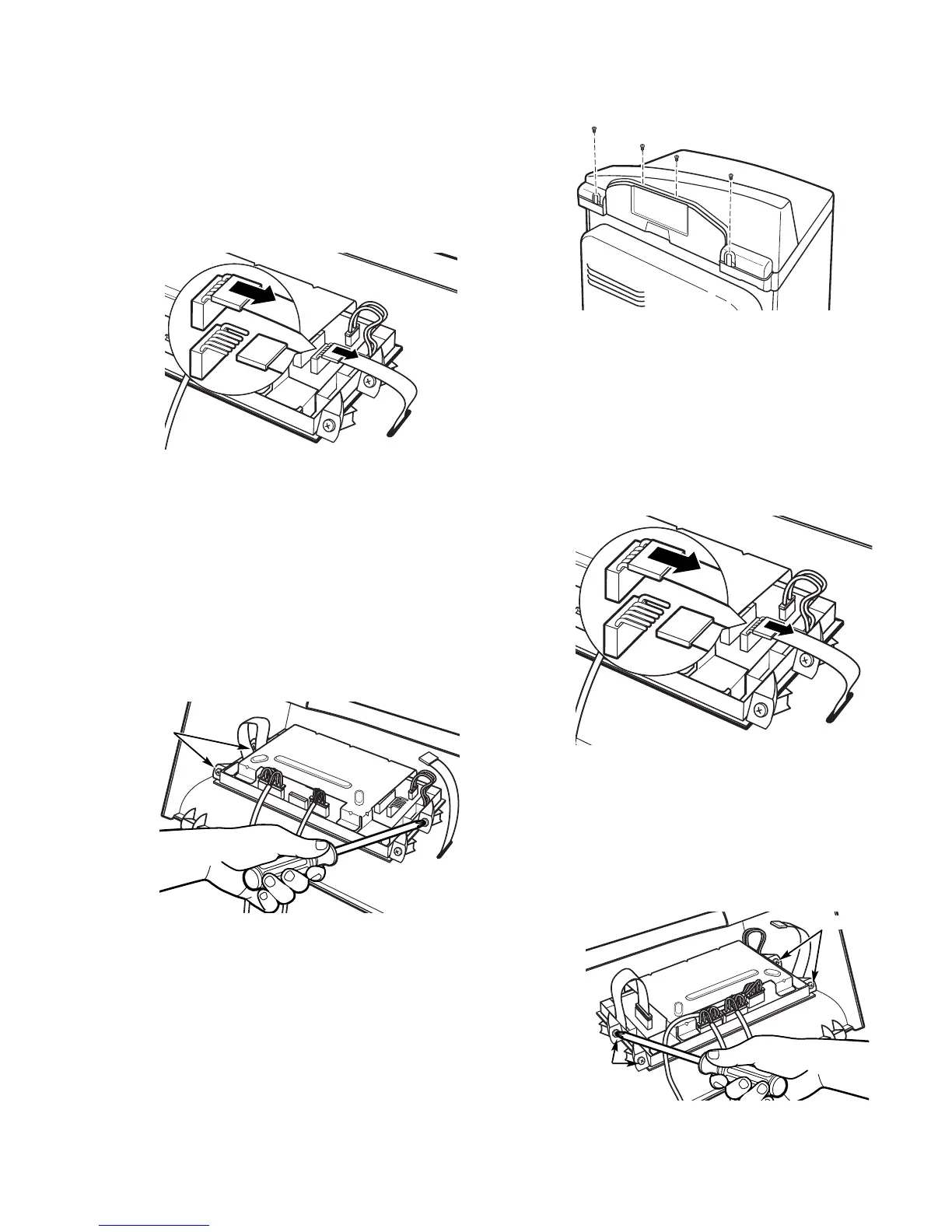

6. Remove the 4 Phillips head screws holding
the washer control board to the backsplash
then remove the control board and set it aside.
10. Remove the 4 Phillips head screws holding
the dryer control board to the backsplash.
11. Remove the dryer control board and set it
aside.
7. Place a towel over the top surface of the dryer
to prevent scratches to the surface.
9. Disconnect the ribbon at the right of the dryer
control board by pulling the connector at the
end of the ribbon off the metal pins.
Note: Do not disconnect any other wires from
the dryer control board.
Screws
Rear of Drye r
8. Remove the 4 Phillips head screws from the
dryer backsplash. Rotate backsplash forward
and lift off.
5. Disconnect the ribbon at the right of the
washer control board by pulling the connector
at the end of the ribbon off the metal pins.
Note: Do not disconnect any other wires from
the washer control board.
Rear of Washer
Screws
(Continued Next Page)
