– 56 –

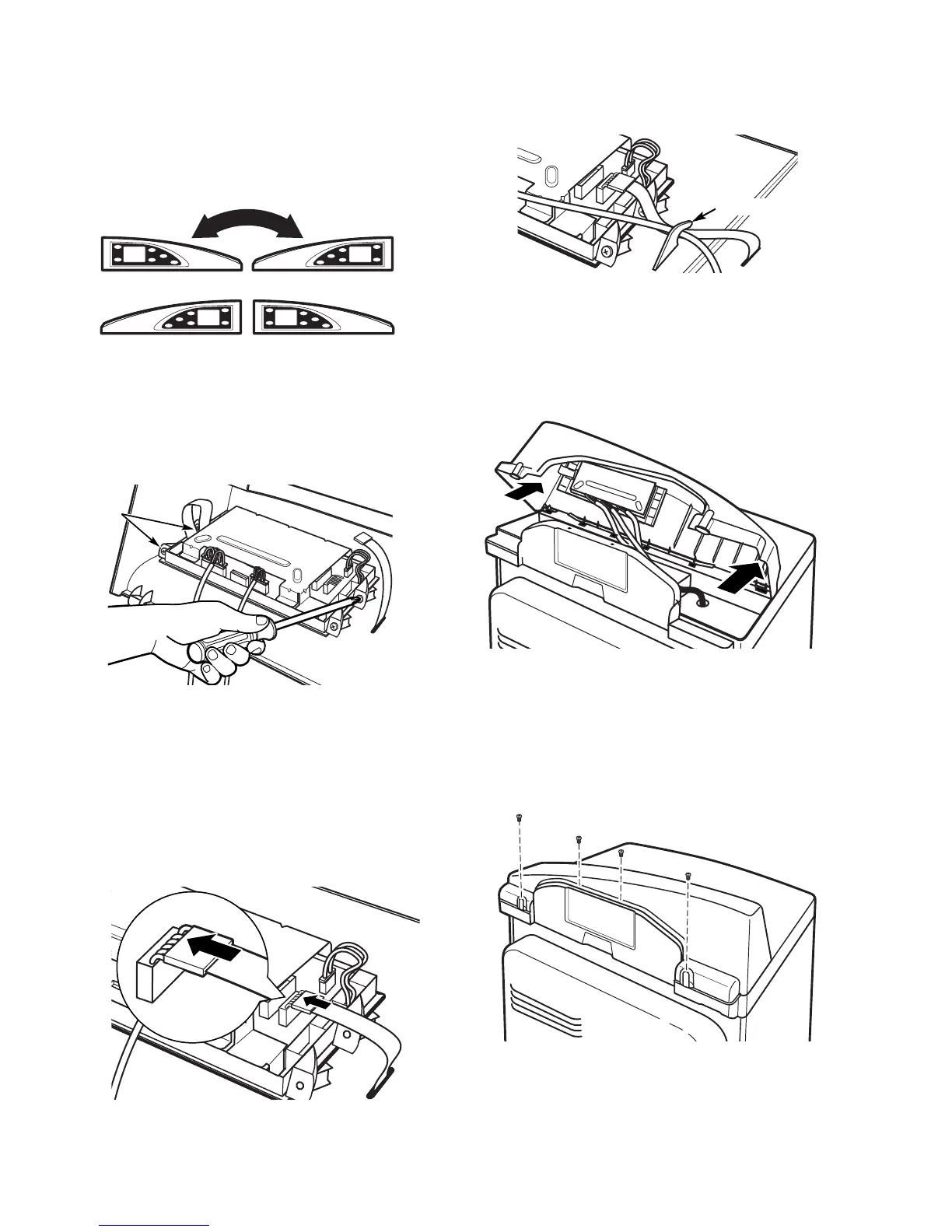

12. Place the backsplash from the dryer on top of
the washer and place the backsplash from the
washer on top of the dryer.
13. Attach the dryer control board to the new
backsplash by replacing the 4 Phillips head
screws removed from the dryer control board
earlier.
14. Connect the dryer control board to the new
backsplash by sliding the ribbon connector on
the new backsplash onto the metal pins on the
control board and pushing in. Make sure the
ribbon is not twisted before inserting the
connector.
15. Place the gray wire from the serial port under
the strain relief of the new backsplash.
16. Insert the tabs on the bottom front of the new
backsplash into the slots on the dryer and
rotate the backsplash into place.
17. Secure the new backsplash to the dryer using
the 4 Phillips head screws removed earlier.
Screws
Rear of Drye r
Screws
Strain Relief
To Next Page
