Design
22
Operating Instructions · VARIVENT
®
Vacuum Valve V
Edition 2016-06-30

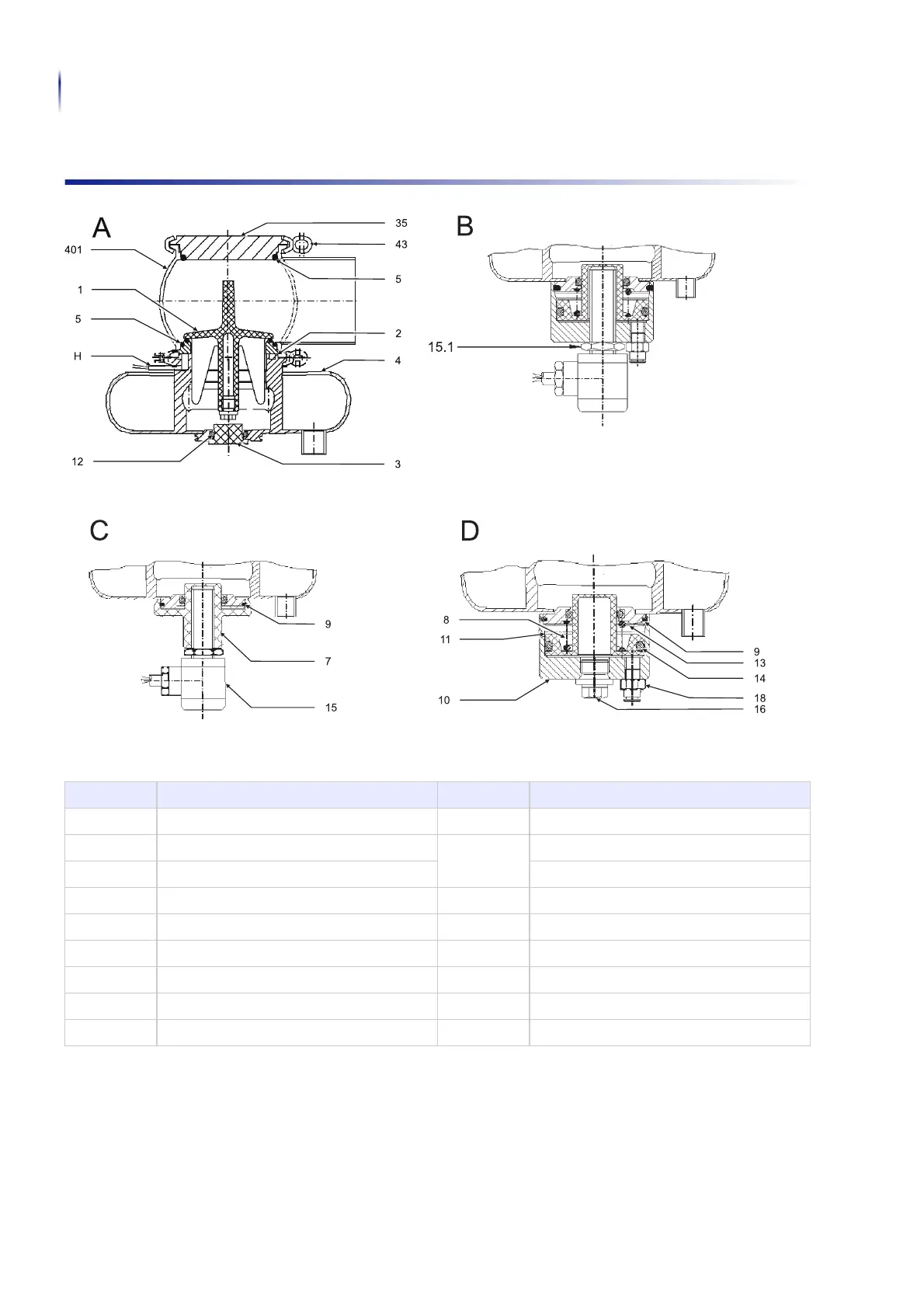

Design
Fig. A: Type V... without feedback
Fig. B: Type V...R with lifting actuator and feedback
Fig. C: Type V...E without lifting; with feedback
Fig. D: Type V...A with lifting; without feedback
Item Designation Item Designation
1 Valve disk V 13 Disk
2 Seat 14 Square profile ring
3 Cap V O-ring
4 Vacuum housing 15 Proximity switch
5 O-ring 15.1 Hex nut
7 Proximity switch mounting 16 Locking screw
8 Pressure spring 18 Screw connection 6 G1/8“
9 Snap ring 35 Cover
10 Cylinder A Heater
