Maintenance

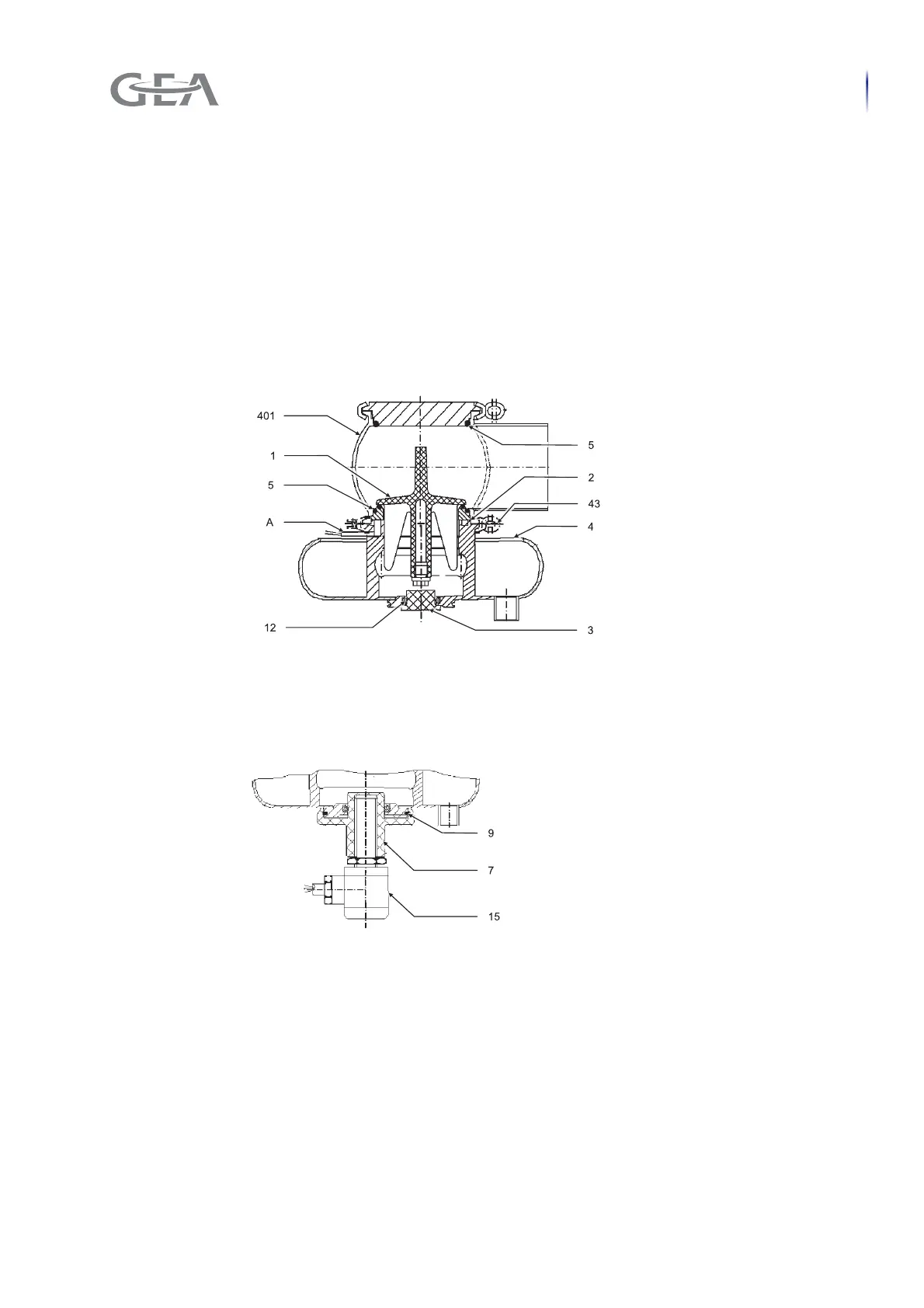

Disassembling the Valve
4. Take off the clamp joints (43).
5. Carefully pull the seat (2), the valve disk (1) and the complete vacuum housing (4)
down and out of the housing (401).

Done
Type V... Without Feedback
Carry out the following steps:
 Remove the cap V (3).

Type V...E With Feedback
Carry out the following steps:
 Press the snap ring (9) together and pull off the proximity switch mounting (7).

