GEA VARIVENT Vacuum Valve V - Type V

Maintenance
Disassembling the Valve
32
Operating Instructions · VARIVENT
®
Vacuum Valve V
Edition 2016-06-30

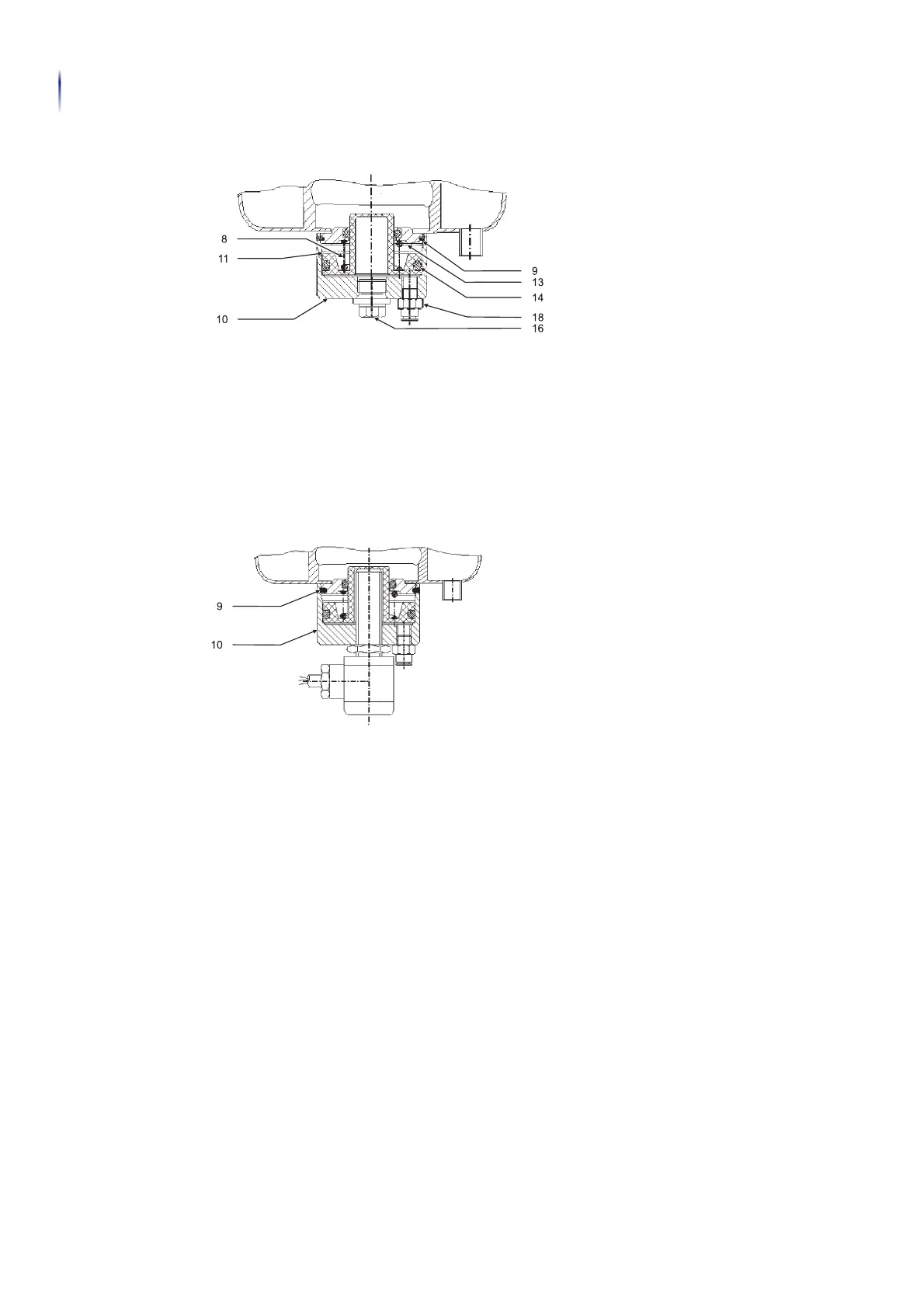

Type V...A With Lifting Actuator
Carry out the following steps:
 Press the snap ring (9) together and pull off cylinder V (10).

Type V...R With Lifting Actuator and Feedback
Carry out the following steps:
 Press the snap ring (9) together and pull off cylinder V (10).

