Maintenance
Disassembling the Valve
30
Operating Instructions · VARIVENT
®
Vacuum Valve V
Edition 2016-06-30
4. Take the valve, with all housings and housing connections if possible, out of the pipe
section.
Done
Disassembling the Valve
Disconnecting the Valve from the Housing
Type V... without feedback

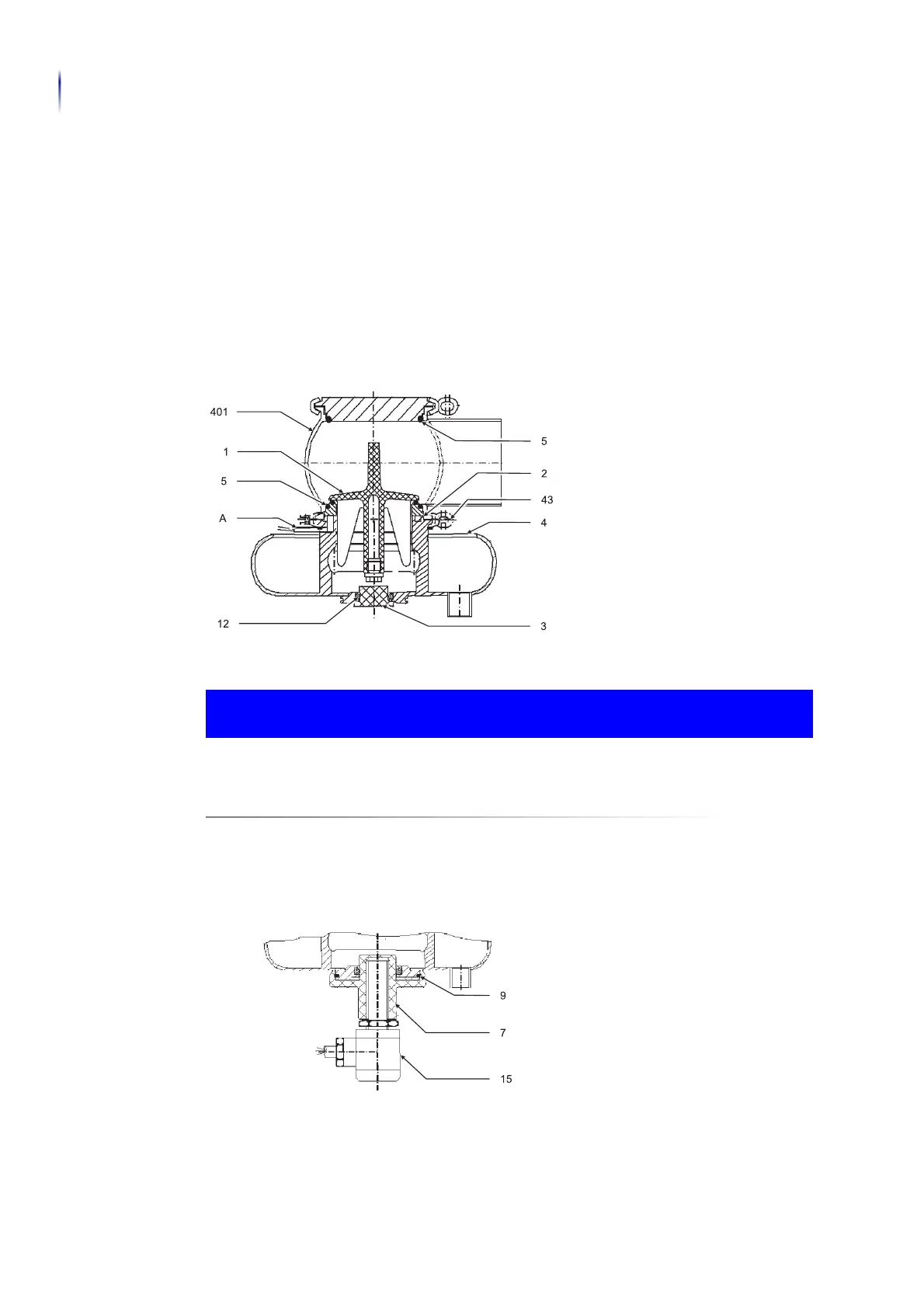

Valve disk (1) and seat (2) are loose once the clamp joints (43) have been
released.
They can get damaged when being pulled out.
Carefully pull the valve parts out of the housing (401) from the bottom.
Carry out the following steps:
1. Disconnect the heater (A) from the supply.
2. Disconnect the proximity switch (15) from the supply.
3. Remove the air hose.
To Next Page
