Spare Parts List
Vacuum Valve V
Spare Parts Lists
Vacuum Valve V

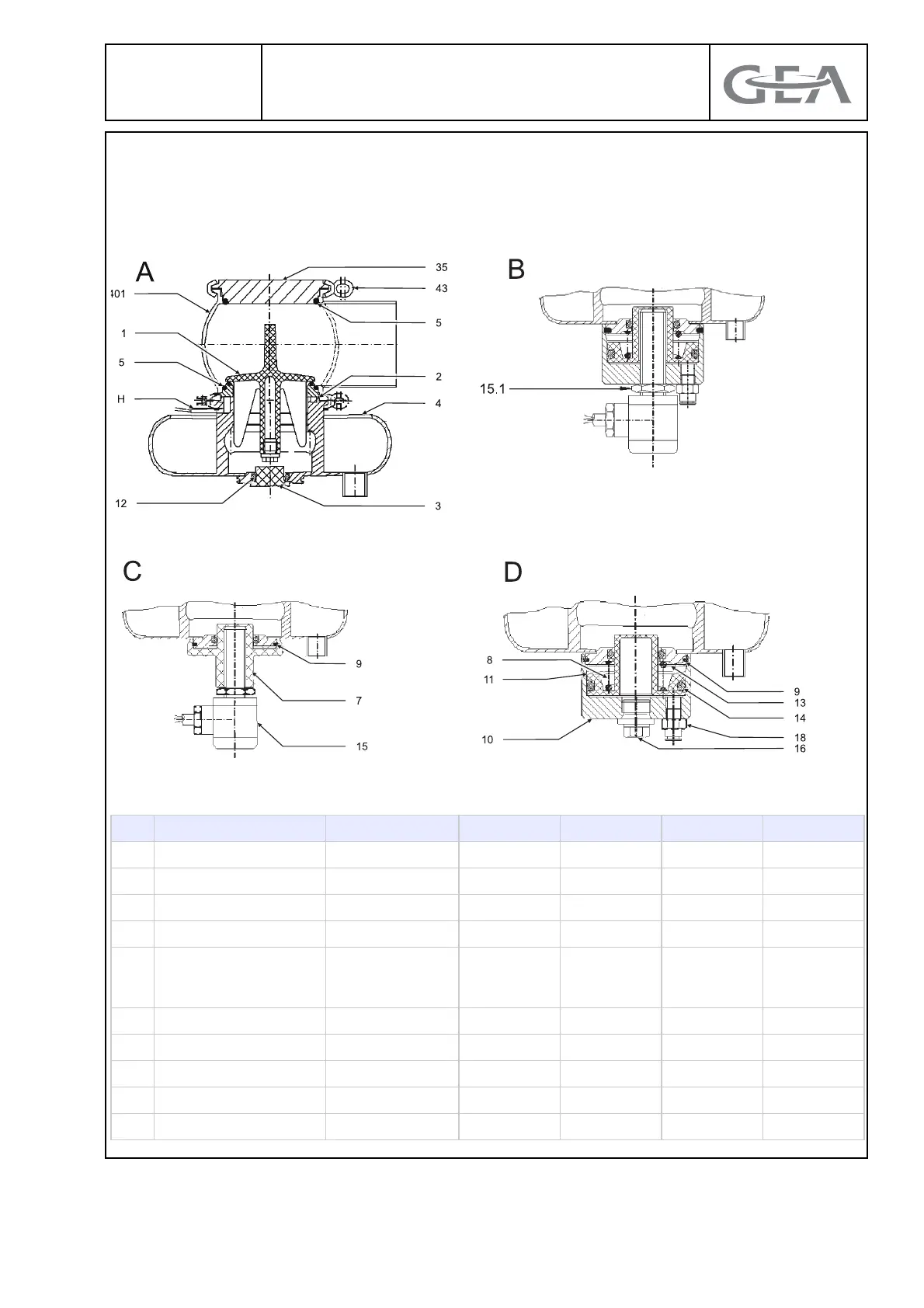

Fig. A: Type V... without lifting; without feedback
Fig. B: Type V...R with lifting; with feedback
Fig. C: Type V...E without lifting; with feedback
Fig. D: Type V...A with lifting; without feedback
Part no. of spare parts for metric sizes
Item Designation Material DN 65 DN 80 DN 100 DN 150
1 Valve disk V 221-253.03 221-253.04 221-253.01 221-253.21
2 Seat 1.4301/VMQ 221-468.04 221-468.04 221-468.05 221-468.06
3 Cap V RCH 1000 221-256.06 221-256.06 221-256.06 221-256.06
4 Vacuum housing 1.4301 221-590.01 221-590.01 221-590.02 221-590.06
5 O-ring EPDM
FKM
HNBR
930-150
930-176
930-634
930-150
930-176
930-634
930-156
930-178
930-863
930-260
930-259
--
7 Proximity switch mounting RCH 1000 221-256.02 221-256.02 221-256.02 221-256.04
8 Pressure spring 1.4310 931-004 931-004 931-004 931-004
9 Snap ring 1.4310 221-257.01 221-257.01 221-257.01 221-257.02
10 Cylinder V 1.4301 221-258.01 221-258.01 221-258.01 221-258.02
11 Piston V PVDF/AL 221-259.01 221-259.01 221-259.01 221-259.02
