11
SHENZHEN GETECH TECHNOLOGY CO., LTD

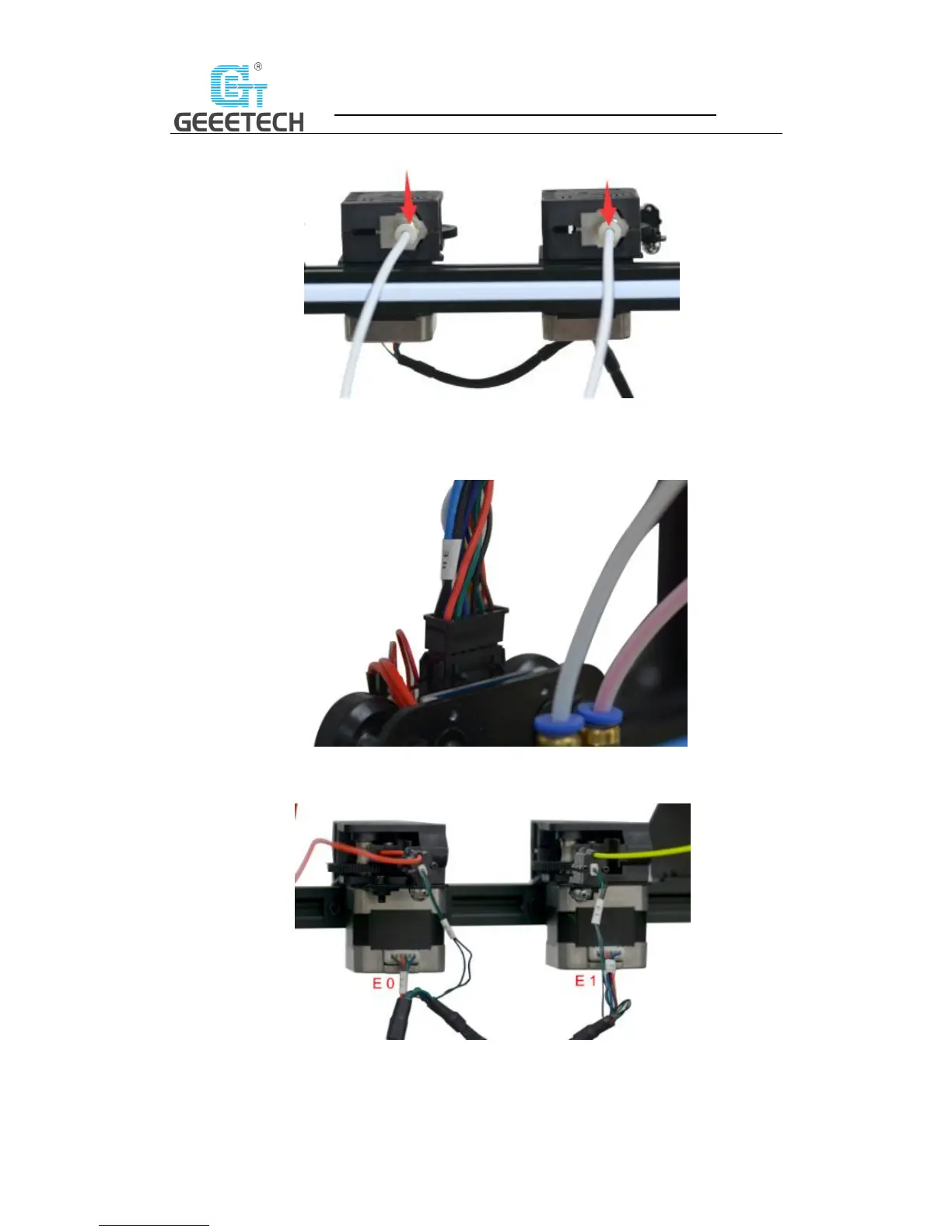

(Picture 3-5)
 Plug the extruder cables into the molex socket of the extruder head extension board firmly.
See picture (3-6).
(Picture 3-6)
 Connect the motor wires of E0 and E1. See picture (3-7).
(Picture 3-7)
 Connect the wires of X axis’ motor and end stop. See picture (3-8).
