12
SHENZHEN GETECH TECHNOLOGY CO., LTD

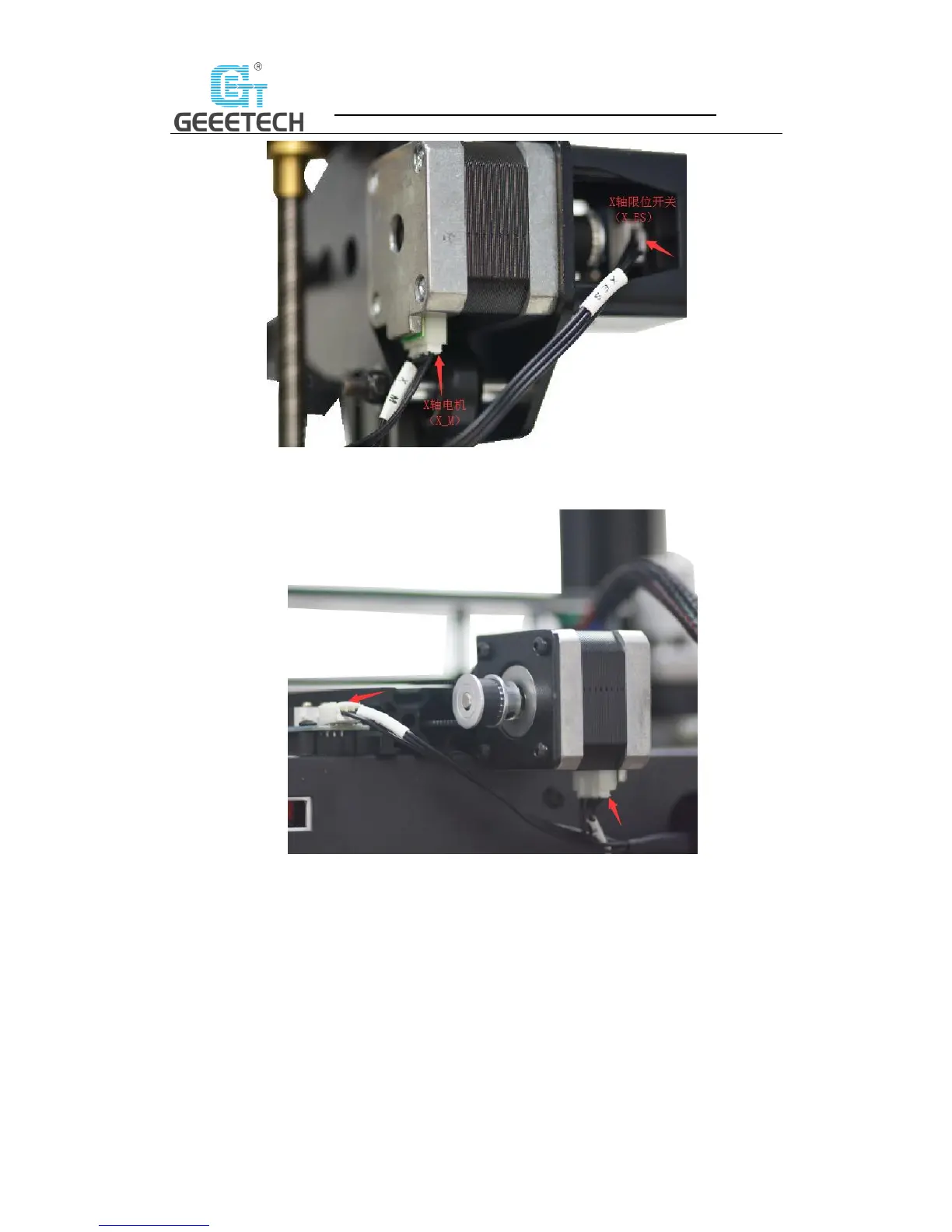

(Picture 3-8)
Connect the wires of Y axis’ motor and end stop. See picture (3-9).
(Picture 3-9)
Connect the wires of Z axis’ motor and end stop. See picture (3-10).
