Geeetech A20M User Manual

37
SHENZHEN GETECH TECHNOLOGY CO., LTD

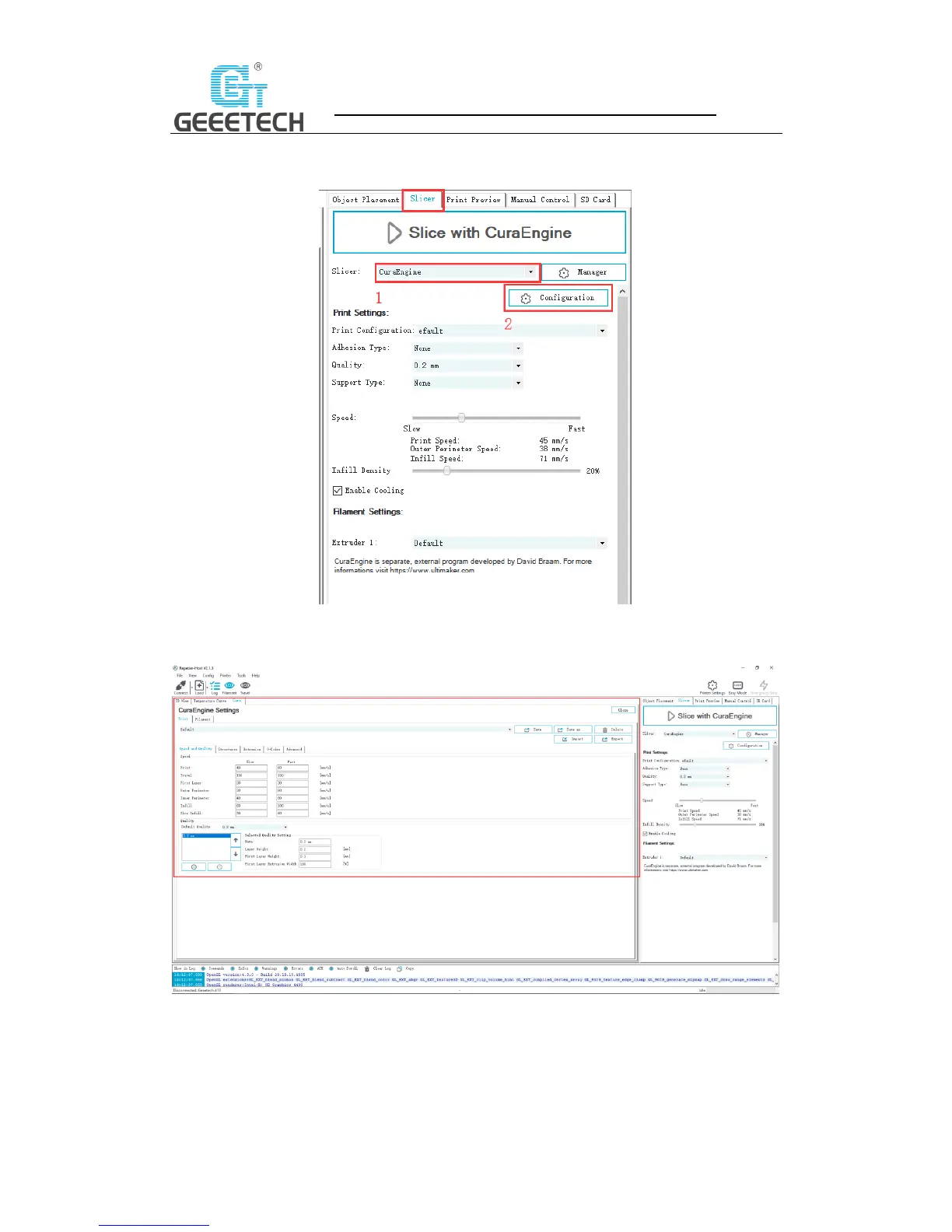

After successfully connected, choose “Slicer> CuraEngine” and open the configuration menu. See
picture (6-12).
(Picture 6-12)
It pops up dialog as picture below (6-13):
(Picture 6-13)
Printer parameters are important to print quality. Customers need to run tests to find the best
parameters for their printers. Here we provide a configuration file for your reference (“Geeetech
A20M PLA high.rcp”). You can import it according to the steps as follows. The following is an
example of parameters for PLA (Picture 6-14):

Geeetech A20M Specifications

General

Printing Technology	FDM (Fused Deposition Modeling)
Build Volume	255 x 255 x 255 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Print Speed	100 mm/s
Max Bed Temperature	100°C
Connectivity	SD Card, USB
Frame Material	Aluminum
Number of Extruders	2
Bed Leveling	Manual
Power Supply	24V/15A
Machine Dimensions	442 x 447 x 480 mm
Supported Materials	PLA, ABS, Wood, PVA, HIPS
Print Bed	Heated
Display	LCD
Max Nozzle Temperature	250°C
