25
SHENZHEN GETECH TECHNOLOGY CO., LTD

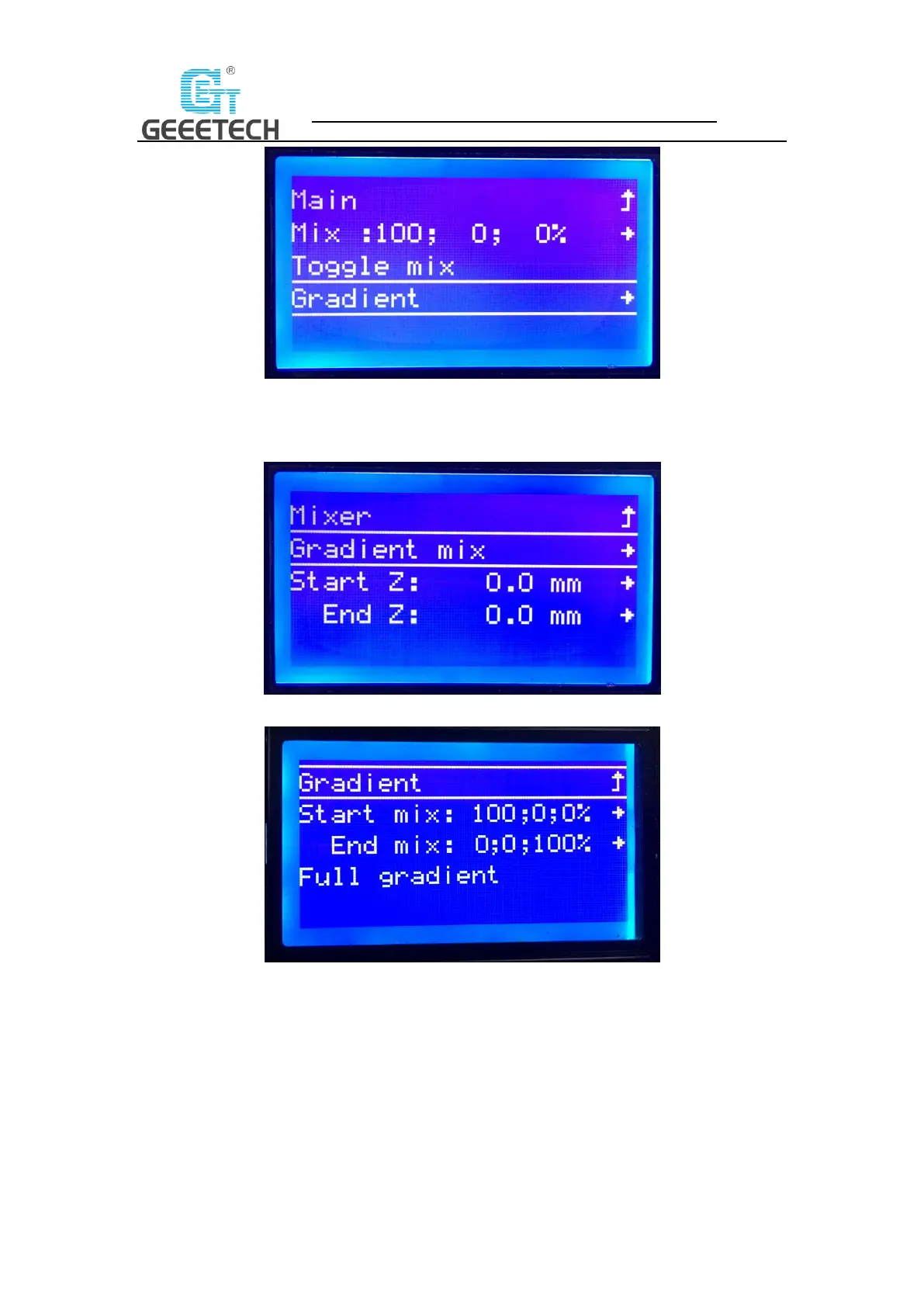

(Picture 7-16)
“Gradient mix”: Adjust the filament ratio of E0 、E1and E2. See picture (7-17and 7-18).
(Picture 7-17)
(Picture 7-18)
“start Z”: The starting position (z-axis height) of automatic change of mixing; automatically
change the mix based on the current Z height obtained in the previous step.
“end Z”: The end of automatic change of mixing (z-axis height).
Choose “start z” and “end z”, press and rotate the knob to set the starting and ending position of
mixing. Then select the model to print, the machine will automatically print according to the ratio
of the mixture just set, the above is the main function of the mixer menu. See picture (7-19).
