Shenzhen Getech Technology Co.,Ltd
23

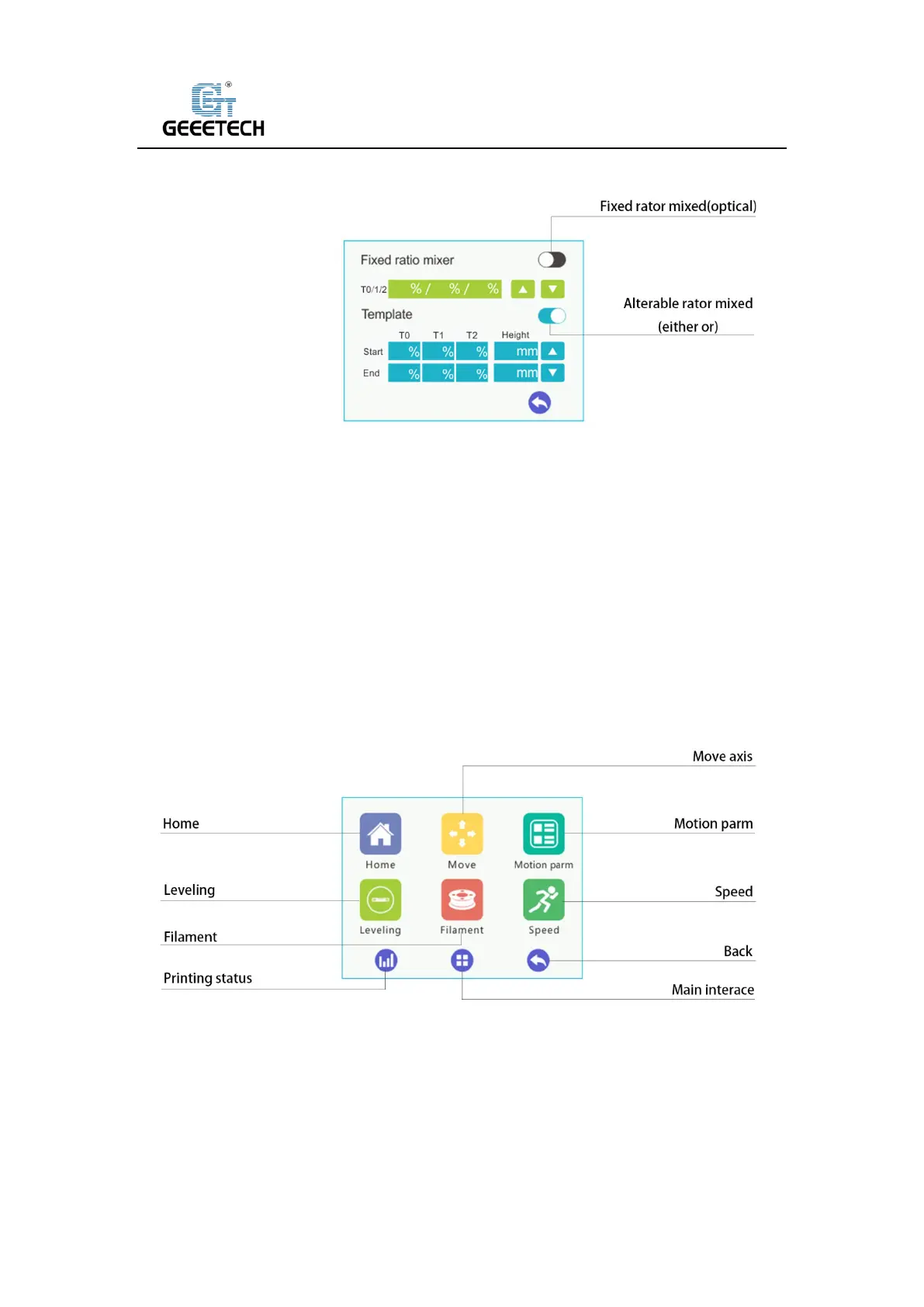

2) Click the “Fixed ratio mixer “to enter the interface of mixer setting, see picture (7-5).
（Picture 7-5）
The fixed scale of mixer and specified scale change or position mixer are not available to open at
the same time, either-o r.
The fixed scale of mixer : Please check the feeding scale of Extruder E0, E1 and E2 when adjust
printing, which could achieve the effect of mixed three-color printing.
Specified scale change or position mixer: Please adjust extruder feeding percentage and
corresponding height according to the direction of start /end, which can gradient from one color
to another in one height.
7.2.3Main functions of control menu:
（Picture 7-6）
Six submenus at Control menu homepage
1) Click “Home” to its interface, see picture (7-7).
