(b) Inspect the combination meter assembly speed input signal
1 Inspect voltage
 Hold the front wheels up
 Push the shift lever to NEUTRAL
 Turn the ignition switch to ON
 Slowly turn the front wheel, measure the voltage between terminal A9 and A11

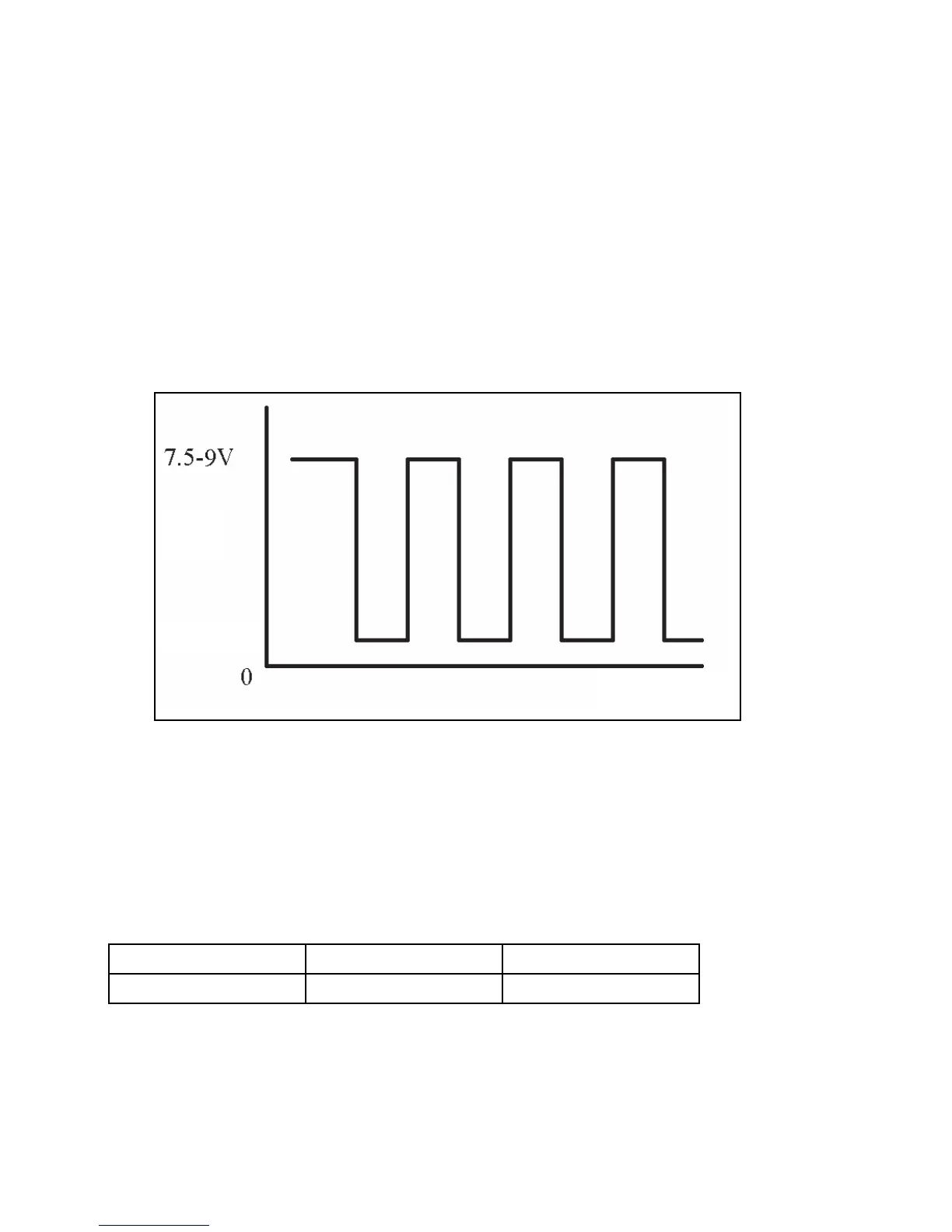

Standard voltage is as follows:
Voltage changes alternately
Result and solution:
Normal Replace the combination meter assembly
If abnormal, inspect the speed sensor
2 Inspect the speed sensor
 Inspect continuity
Inspect continuity between terminals
Standard:
Tester connection Condition Standard condition
2 - ground Normal condition Continuity
Turning Wheels
Below 0.5V
To Next Page
