(IV) Rear Back Panel Parts
Rear back panel assembly is mainly composed of parts such as rear back panel, rear back panel reinforcement,
trunk lock mounting plate, trunk lid cross member, etc., by welding them together. Figure 5-5 is the dismantle
diagram.

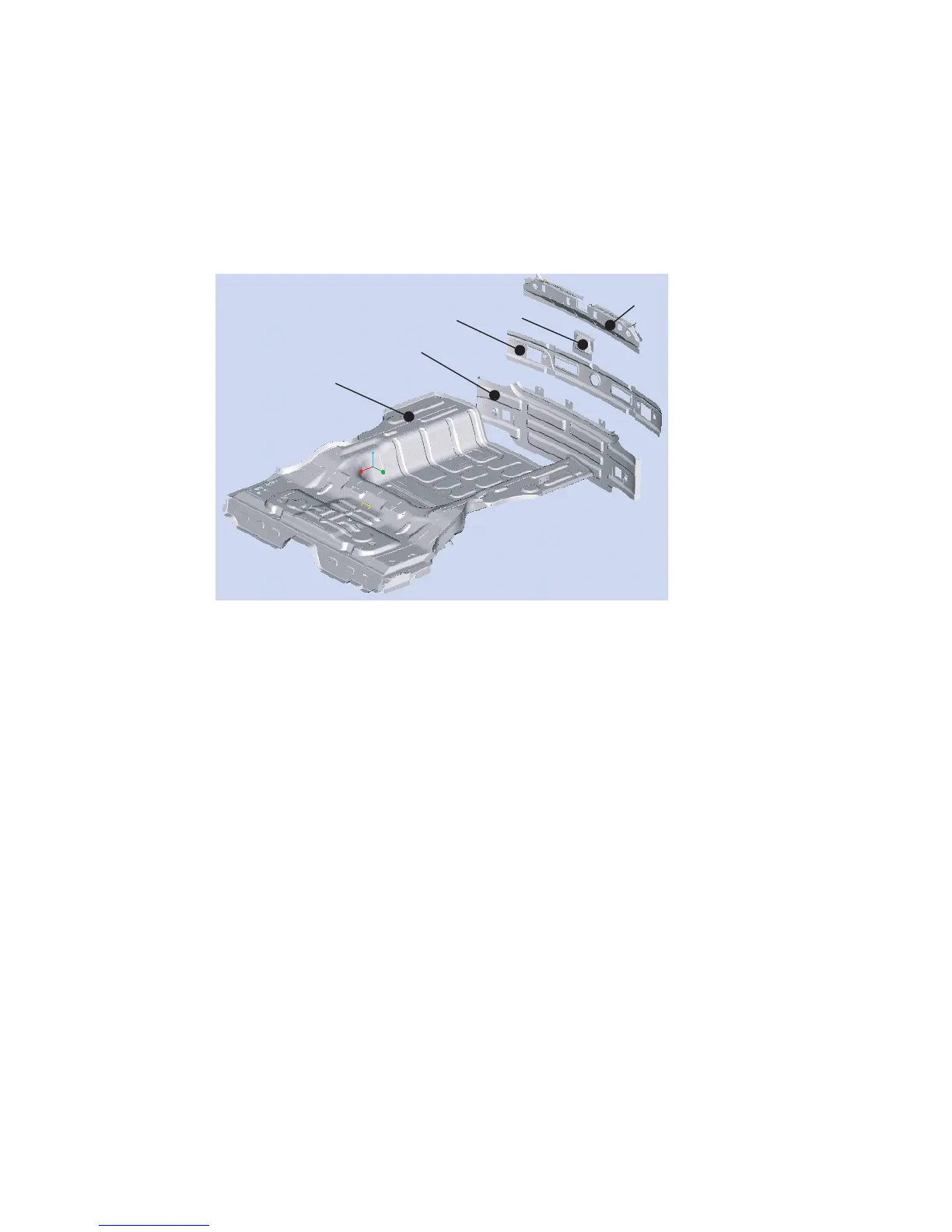

Figure 5-5 Dismantle Diagram of Rear Quarter Assembly
1 Rear Floor 2 Rear Back Panel 3 Rear Back Panel Reinforcement 4 Trunk Lid Lock Mounting
Plate 5 Trunk Lid Cross Beam
The rear back panel is used for effect of a cross member to strengthen the intensity of the rear part of the
body and form an opening of the trunk.
