(V) Roof Panel Assembly
Roof panel assembly is mainly composed of parts such as roof panel, roof front cross member, roof central
reinforcement, roof rear cross member, etc., by welding them together. Shown as the dismantle diagram 5-
6.Roof interior trim is mounted inside; and an insulation mat is pasted in its interlayer. Cohesive binder is
applied between the front/central/rear cross member and the roof panel in many points. The rainwater from
the roof panel flows out of the rear body through roof drip channel that are on the both sides of the roof panel.
Cross members and reinforcement members are used to strengthen the rigidity of the roof panel in trans-
verse direction.

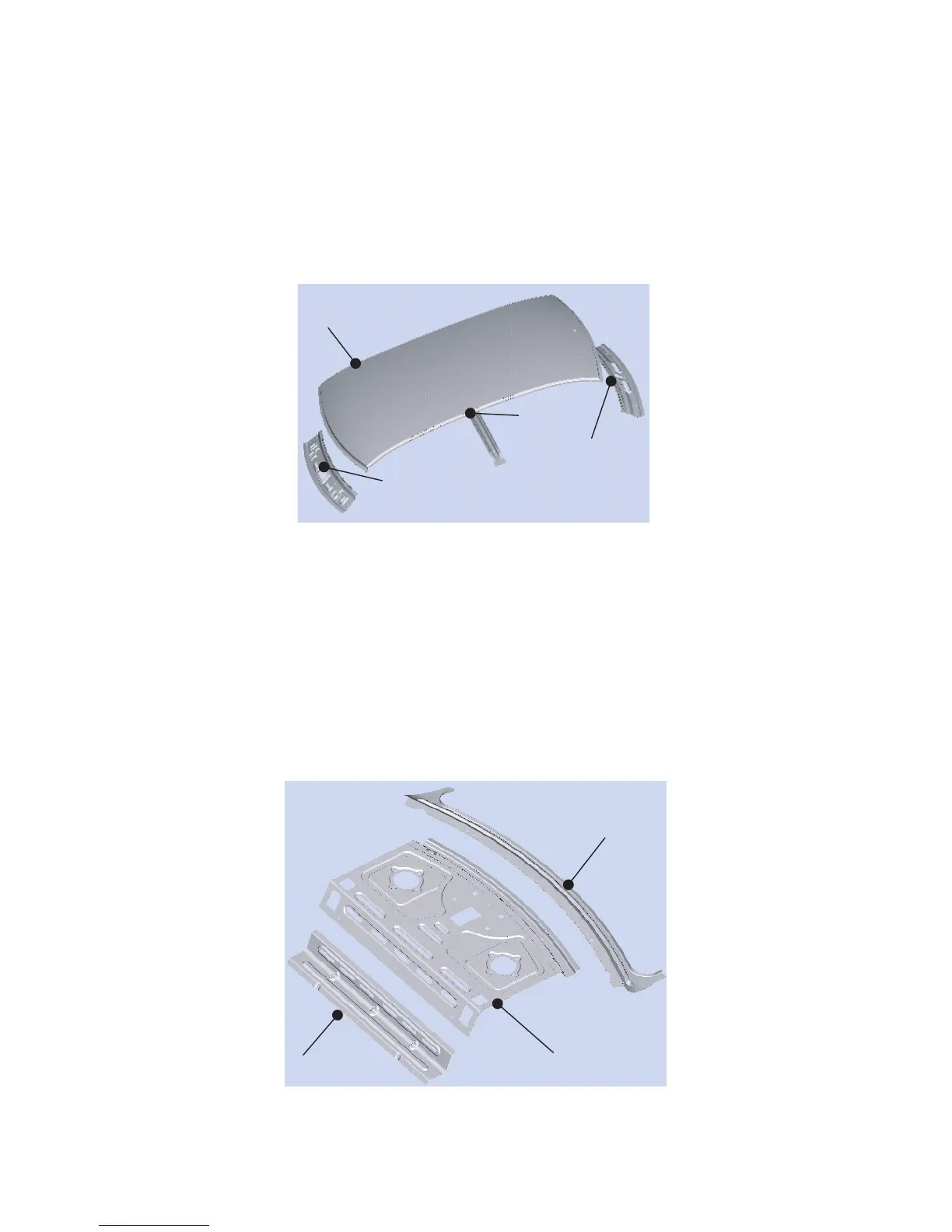

Figure 5-6 Decomposition Diagram of Roof
1 Roof Panel 2 Front Roof Cross Member 3 Roof Central Reinforcement
4 Rear Roof Cross Member
(VI) Trunk Shelf Assembly
Trunk shelf assembly is mainly composed of parts such as trunk shelf panel, trunk shelf front reinforcement
plate, drip channel etc., by welding them together.
Trunk shelf is welded to the LH/RH quarter, which and rear floor, the back of the quarter form a trunk.
Meanwhile, a frame that can resist to torsion is also generated. Figure 5-7 is the dismantle diagram.
Figure 5-7 Decomposition Diagram of Floor Parts.
1 Trunk Shelf Reinforcement Plate 2 Trunk Shelf Panel 3 Drip Channel
