Gefen EXT-DVIK-MV-41 User Manual

► Audio Output
6. Connect a 3.5mm mini-stereo cable from the L/R Out jack to a pair of powered
speakers.
► RS-232 (optional)
7. Connect an RS-232 cable from the automation control device to the RS-232 In port.
8. Connect another RS-232 cable from the RS-232 Out port to another 4x1 DVI KVM
Multiview Switcher. Up to eight 4x1 DVI KVM Multiview Switchers can be daisy-
chained together. See Cascading (page 73) for more information.
► USB (computer control)
9. Connect up to two USB devices (e.g. keyboard, mouse, USB drive, etc.) to these
ports. Depending upon which source is selected, the USB device can be used by
a different computer.
► Grounding
9. Connect a grounding wiring from the grounding terminal to an approved Earth ground.
► Power
10. Connect the included power supply to the 12V DC power receptacle on the 4x1 DVI
KVM Multiview Switcher.
11. Connect the included AC cable from the power receptacle to an available electrical
outlet.
Getting Started Getting Started

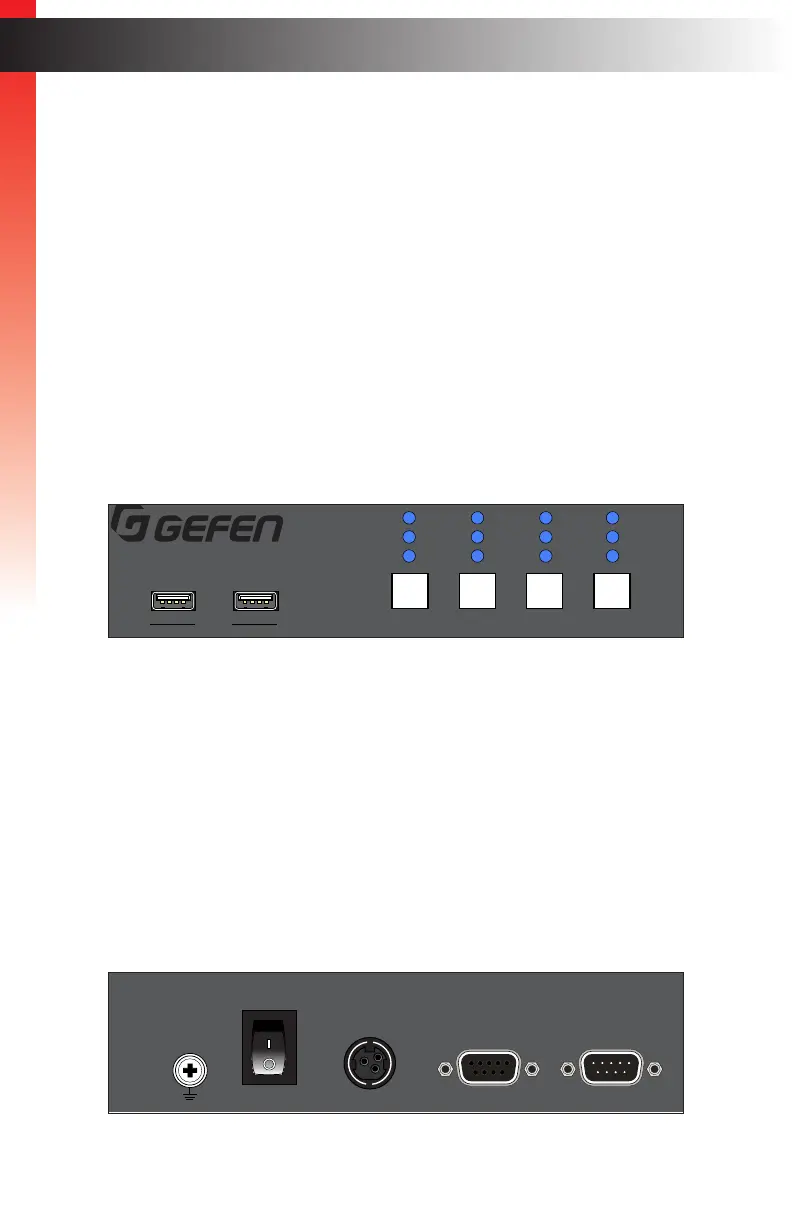

Installation
page | 8
4x1 DVI KVM Multiview Switcher
Menu/Back
Select
USB
Video B
Audio
USB
USB 1 2 3 4
Solo
Audio
Full PIP Quad
Reset Power
PAP
®
USB USB
Source 1 Source 2 Source 3 Source 4
EXT-DVIK-MV-41
RS-232 In12V DCMain RS-232 Out
Keyboard Mouse Mic L/R Out Mic L/R In USB Host Mic L/R In USB Host Mic L/R In USB Host Mic L/R In USB Host
Video A DVI-D Video B DVI-D DVI-D In DVI-D In DVI-D In DVI-D In
USB USB
Workstation
4x1 DVI KVM Multiview Switcher
Menu/Back
Select
USB
Video B
Audio
USB
USB 1 2 3 4
Solo
Audio
Full PIP Quad
Reset Power
PAP
®
USB USB
Source 1 Source 2 Source 3 Source 4
EXT-DVIK-MV-41
RS-232 In12V DCMain RS-232 Out
Keyboard Mouse Mic L/R Out Mic L/R In USB Host Mic L/R In USB Host Mic L/R In USB Host Mic L/R In USB Host
Video A DVI-D Video B DVI-D DVI-D In DVI-D In DVI-D In DVI-D In
USB USB
Workstation
