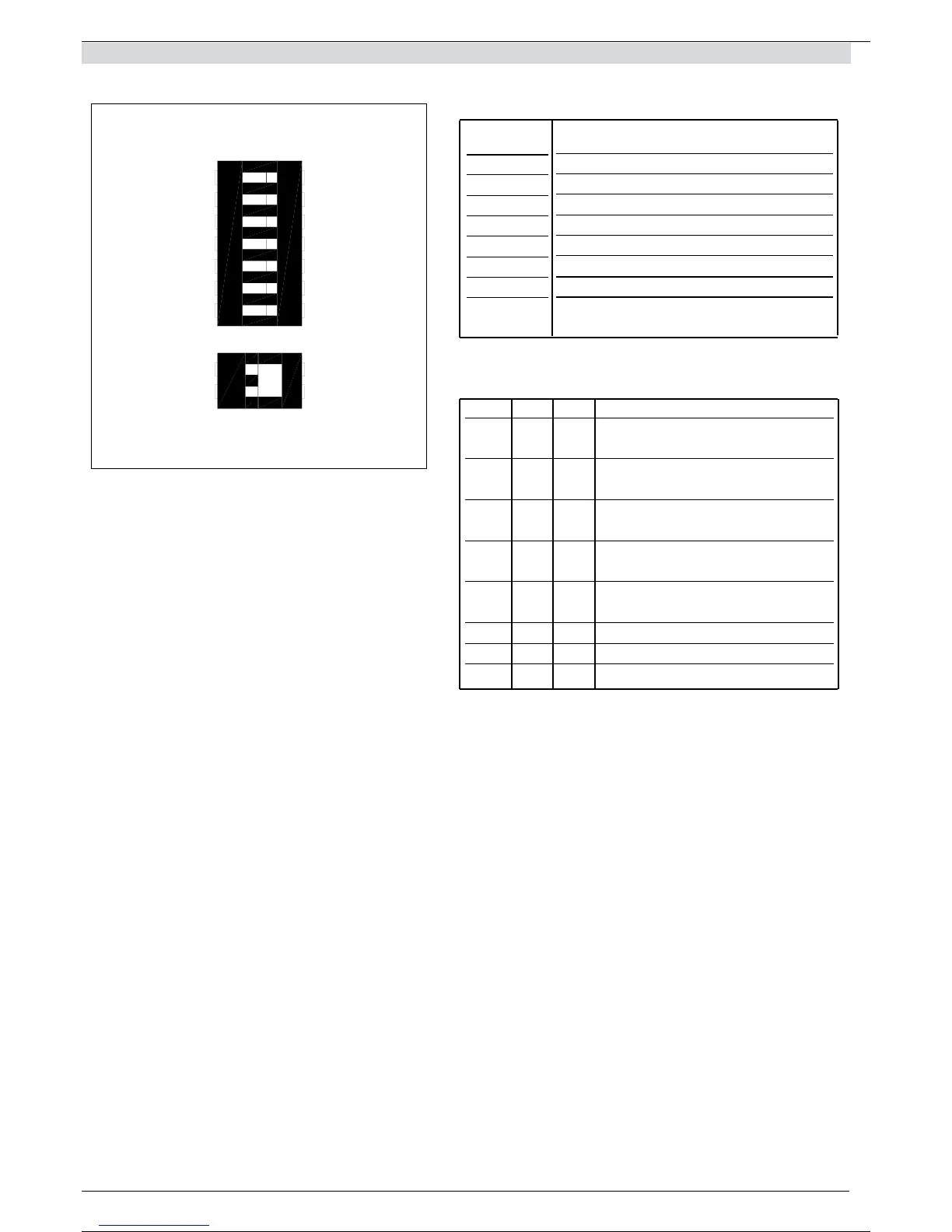

Figure 28
dip-switches
1
2
3
4
5
6
7
8
Description
Connection type: (see table 18-a)
Connection type: (see table 18-a)
Connection type: (see table 18-a)
= ON 60Hz (OFF 50Hz)
= ON reset factory configuration
= ON Geflex simulation function
= ON insert line termination for
Port1 / RS485
Table 18
3.7 Description of dip-switches
1 2 3 Connection type
OFF OFF OFF 4 independent zones /
4 loads single-phase
ON OFF OFF zone 1 with 3-phase load star
with neutral
OFF ON OFF zone 1 with 3-phase load open
triangle
ON ON OFF zone 1, 3 with double 3-phase load
star without neutral
OFF OFF ON zone 1, 3 with double 3-phase load
closed triangle
ON OFF ON -
OFF ON ON -
ON ON ON -
Table 18-a
123456
78
ON ON
18 / 35
