gefran GFX4 User Manual

8
80395G_MHW_GFX4_09-2010_ENG

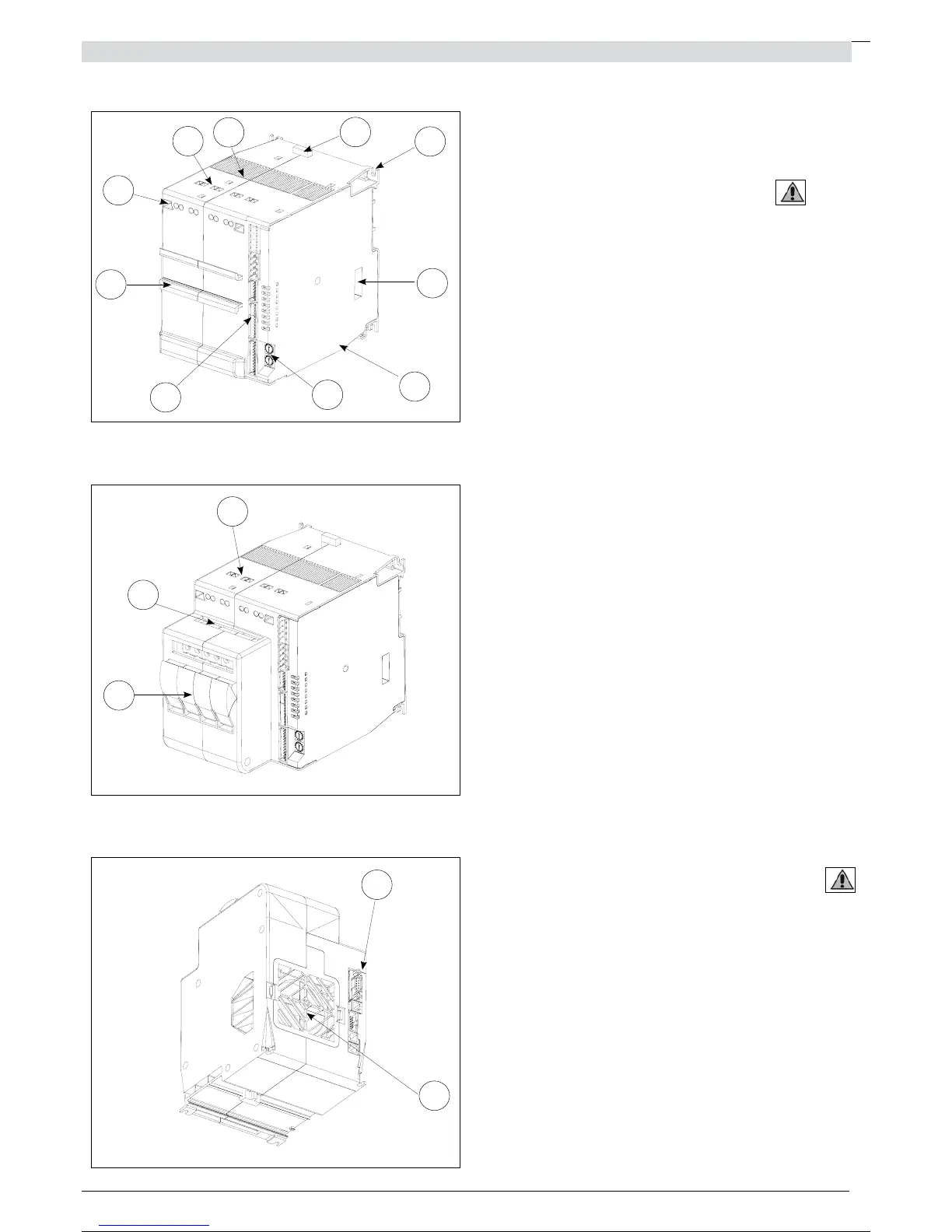

1 DIN bar for modules, for example, signal converters
(only on models without fuse holders).
2 access for screwdriver to power connector screws
3 power connection terminals
4 ventilation grill: DO NOT OBSTRUCT
5 cursor for insertion/removal of DIN bar
attachment
6 screw seats for fastening module on plate
7 dip switches for function configuration
8 connectors for communication ports (Port1, Port2)
9 rotary switches for setting node address or number
10 signal and power supply connectors (J1, J2, J3, J4)
11 fuse holder (only for models 30KW and 60KW)
12 terminals for fuse holder connection
(F1, F2, F3, F4)
13 terminals for load power connection
(U1, U2, U3, U4)
14 ventilation air intake grill: DO NOT OBSTRUCT
1
2
3
4
5
6
7
8
9
10
11
8
14
12
13
Figure 7
Figure 8
Figure 9
2.7
general Description
8 / 35
