gefran GFX4

34
80395G_MHW_GFX4_09-2010_ENG

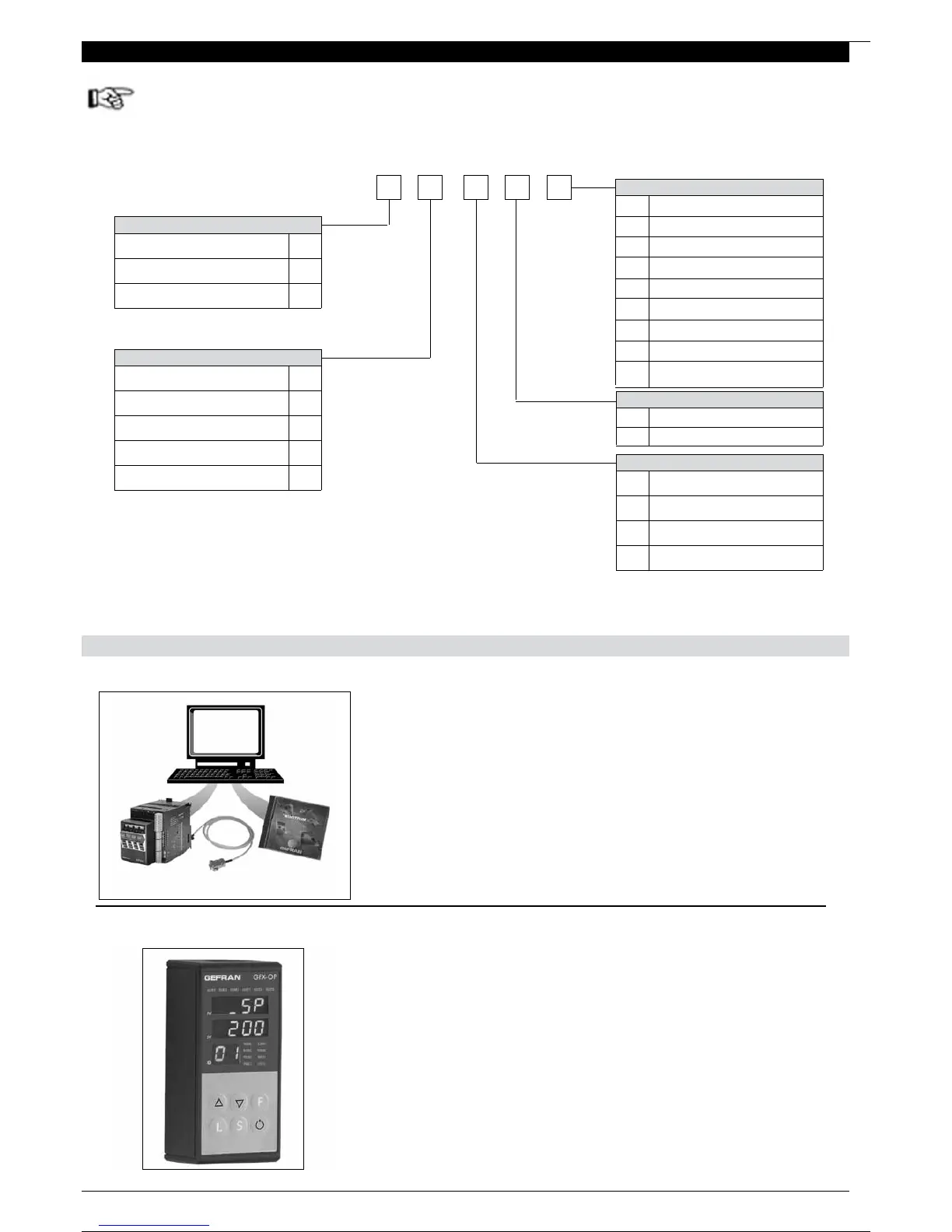

This section contains information on order codes for
the Controller and its main accessories
As mentioned in the Preliminary Instructions in this
User Manual, a correct reading of the Controller order code
immediately identifies the unit’s hardware configuration.
Therefore, you must always give the order code when
contacting Gefran Customer Care for the solution to any
problems.
6 • TECHNICAL / COMMERCIAL INFORMATION
Software for management / configuration of Geflex units
A simple and intuitive interface lets you change the most important parameters of all
Geflex models.
ORDER CODE
Winstrum Software on CD, RS232/485 converter complete
with cables for connection to PC and Geflex. ........................................ WSK - 1 - 1 - 0
KIT WINSTRUM
Operator terminal for in-field configuration of the entire Geflex line.
Two types of terminals:
- for installation on Geflex heatsink or on DIN guide
- for panel installation
Programming terminal for Geflex (installation on DIN guide or on heatsink), complete
with cables for connection to Geflex (L = 0.2m) ..............................................GFX-OP-D
[Note: for other connection cable lengths, see the cable section in the accessories catalog]
Programming terminal for Geflex (panel installation) ...................................... GFX-OP-P
[Note: for connection cable, see the cable section in the accessories catalog]
Kit consists of:
power supply, PC <--> GFX-OP-D connection cable (L=2 m),
adapter for Geflex power supply......................................................................GFX-OP-K
GFX-OP
ORDER CODE
6.1
accessories
GEFRAN spa reserves the right to make any aesthetic or functional changes at any time and without notice.
NOMINAL POWER
30KW 30
60KW 60
80KW 80
AUXILIARY OUTPUTS
Absent 0
Relay R
Logic D
Continuous C
Triac T
FUSES
Absent0
Fuses-holder + fuses extrarapid (*)F
AUXILIARY INPUTS
1 Current Transformer1
4 Current Transformers2
1 Current Transformer
+ 4 Linear inputs
3
4 Current Transformers
+ 4 Linear inputs (**)
4
GFX4
(*) Available only for 30, 60kW power.
FIELDBUS
Absent0
Modbus RTUM
Profibus DPP
CANopenC
DeviceNetD
Ethernet Modbus TCPE
Ethernet IP E1
Euromap 66
C1
EtherCATE2
(**) Option NOT available with Fieldbus E1 or E2
