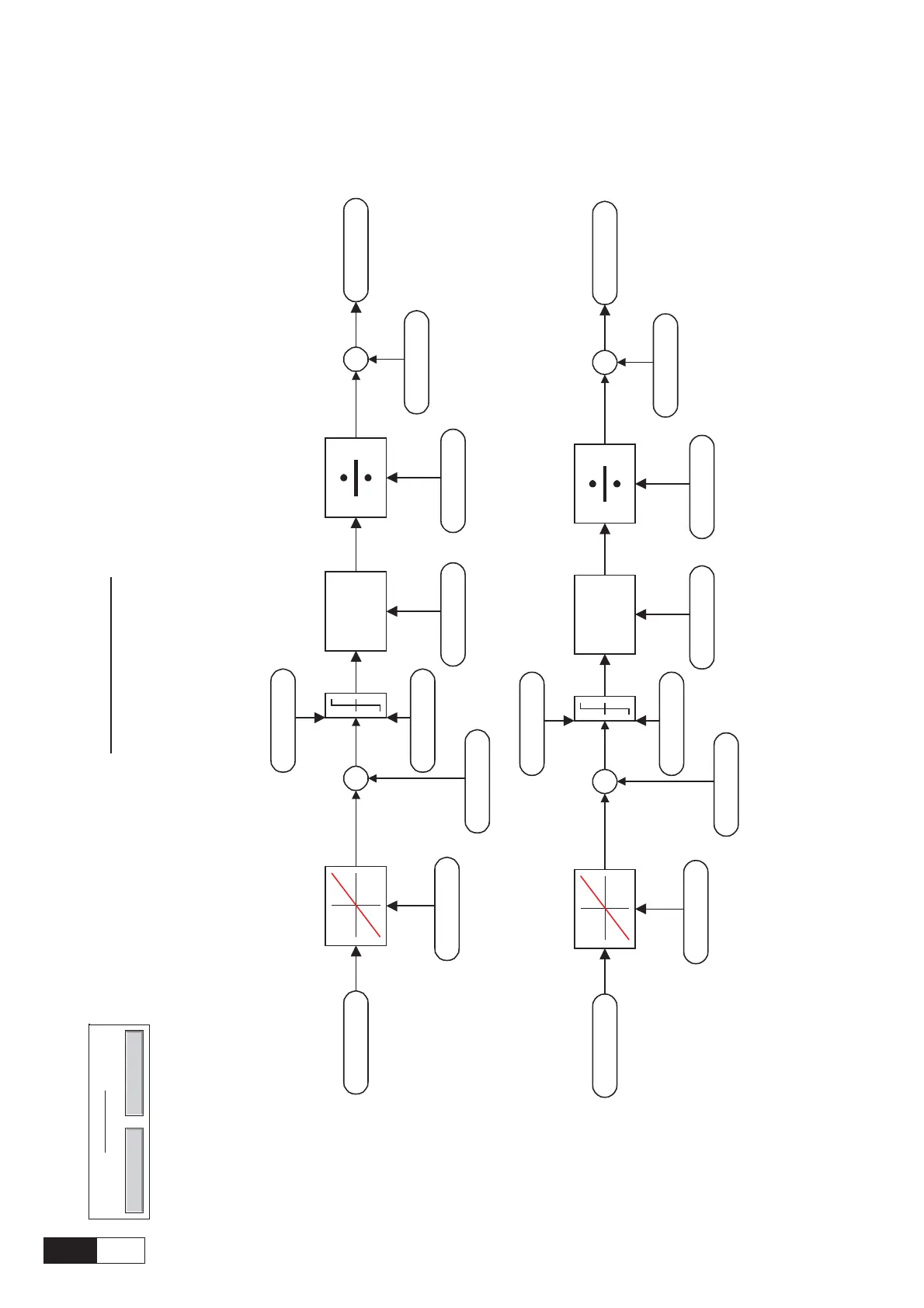

LINKS Function
+
+
X
S
+
+
LINK 1
+
+
X
+
+
LINK 2
AVy_Ovw
Overview
NAVIGATION
AVy_Funct
Go to functions
Source 1
0 par.n
Input absolute 1
Off
Input offset 1
0
Mul gain1
1
Divgain1
1
Output offset 1
0
Destination 1
0 par.n
Input min1
0
Input max 1
0
Source 2
0 par.n
Input absolute 2
Off
Input offset 2
0
Mul gain2
1
Divgain2
1
Output offset 2
0
Destination 2
0par.n
Input min2
0
Input max 2
0
S
SS
