140 50940193/DP0415
8. Check the inside of the housing for damage.
9. If applicable, install a new inner filter element (H). Make sure the sealing surfaces are
clean and the new element is properly seated.
10. Install a new outer filter element (G). Make sure the sealing surfaces are clean and the
new element is properly seated.
11. Replace air filter cover (L). Latch clamps (J). Make sure the cover is tightly secured
and is seated properly in the housing.
12. Check the air cleaner intake hose, clamps and mounting bracket hardware are properly
secured and tightened.

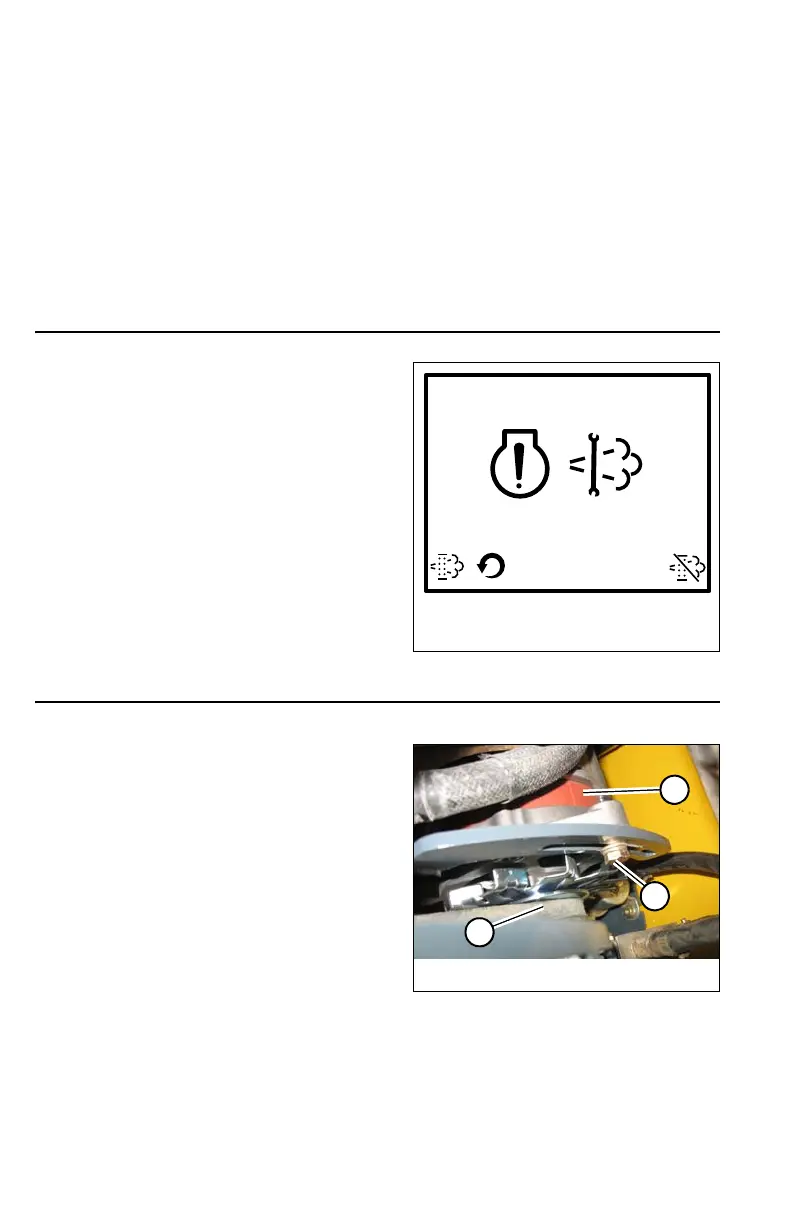

DPF Service (DPF Models)
DPF soot filter replacement is required when
the DPF (Diesel Particulate Filter) Service
Screen (Figure 102) displays.
Note: Contact your dealer when the DPF
Service screen displays.
V-Belt Maintenance
1. Perform the “Mandatory Safety Shutdown
Procedure” on page 14.
2. Wait until the engine has cooled.
3. Inspect V-belt (F, Figure 103) for damage.
If damaged, have belts replaced by an
authorized repair shop.
4. Press on V-belt (F) mid-way between
pulleys to check deflection. The belt
should not deflect more than 8 mm (5/16
in.).
5. If deflection is more than 8 mm (5/16 in.):
Loosen adjustment bolt (G) and rotate alternator (E) outward until V-belt tension is
correct. Tighten bolt (G) and re-check V-belt tension.
Figure 102 – Stationary Regenera-
tion In-Progress Screen
