Hand and Foot Controls
On hand and fool controlled-equipped machines, the hand controls are used to control the
travel drive, and the foot controls are used to control the attachment lift and tilt.
Table 10: Hand and Foot Controls
Ref. Control Description
A Left Hand Control
Controls travel drive forward, reverse, turn, and speed. See
“Drive Control (Hand Controls)” on page 68.
B Right Hand Control
Controls travel drive forward, reverse, turn, and speed. See
“Drive Control (Hand Controls)” on page 68.
C Two-Speed Selection Button
Toggles between high- and low-speed travel modes. See
“Two-Speed Drive (Option)” on page 69.
D Horn Button Activates horn.
E Hydraglide™ Button
Activates Hydraglide™. See “Hydraglide™ Ride Control
System (Option)” on page 73.
F INACTIVE Button is inactive on Hand and Foot Controls.

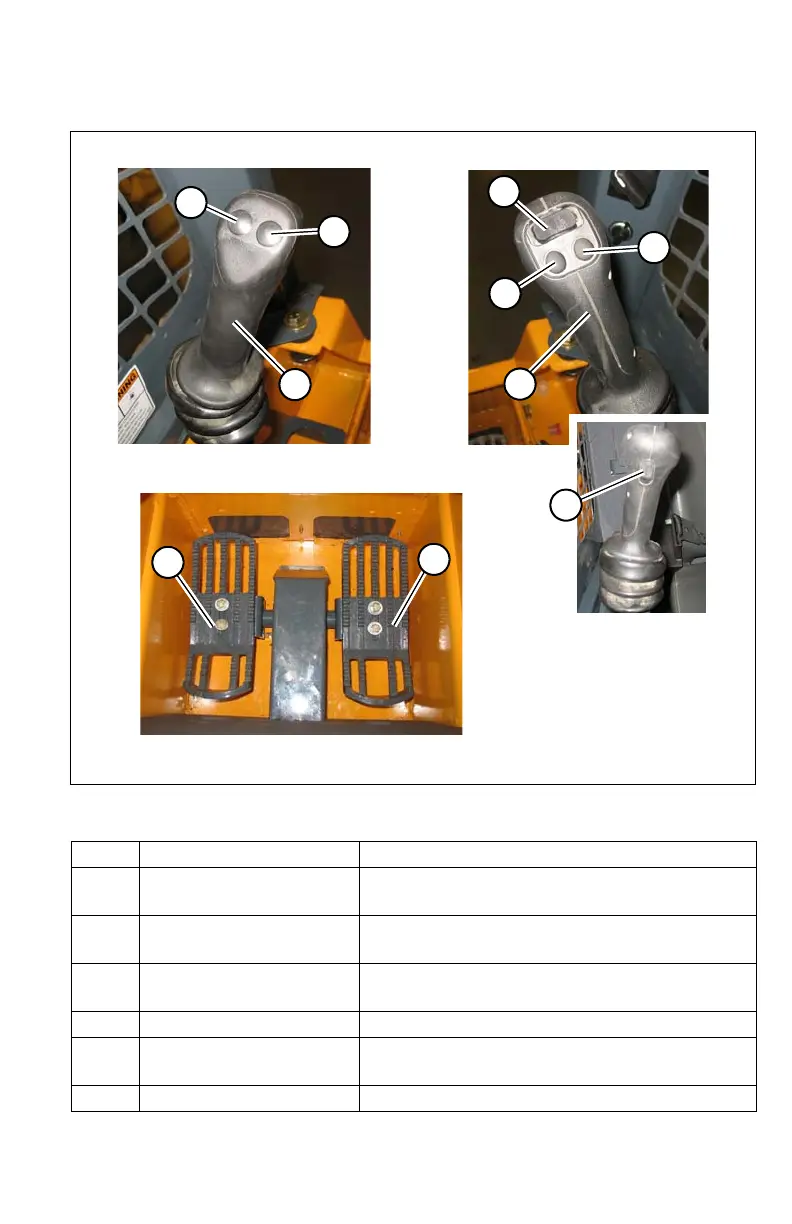

Figure 31 – Hand and Foot Controls
Left Hand Control
Right Hand Control
Foot Controls
D
C
A
G
F
E
B
I
J
H
