Locking pins (F) must be fully
extended through the holes in the
attachment frame before using the
attachment. The attachment could
fall off if it is not locked on the hitch
and cause serious injury or death.
Auxiliary Hydraulic System
Auxiliary hydraulics are used with attachments requiring hydraulic power.
Always be sure the auxiliary hydraulic control is in
neutral before starting the loader or disconnecting
the auxiliary hydraulic couplers.
Auxiliary Hydraulic Couplers
Auxiliary hydraulic couplers (Figure 48) are
located on top of the lift arm on the left side.
Note: Cover (G) is not present on all
machines.

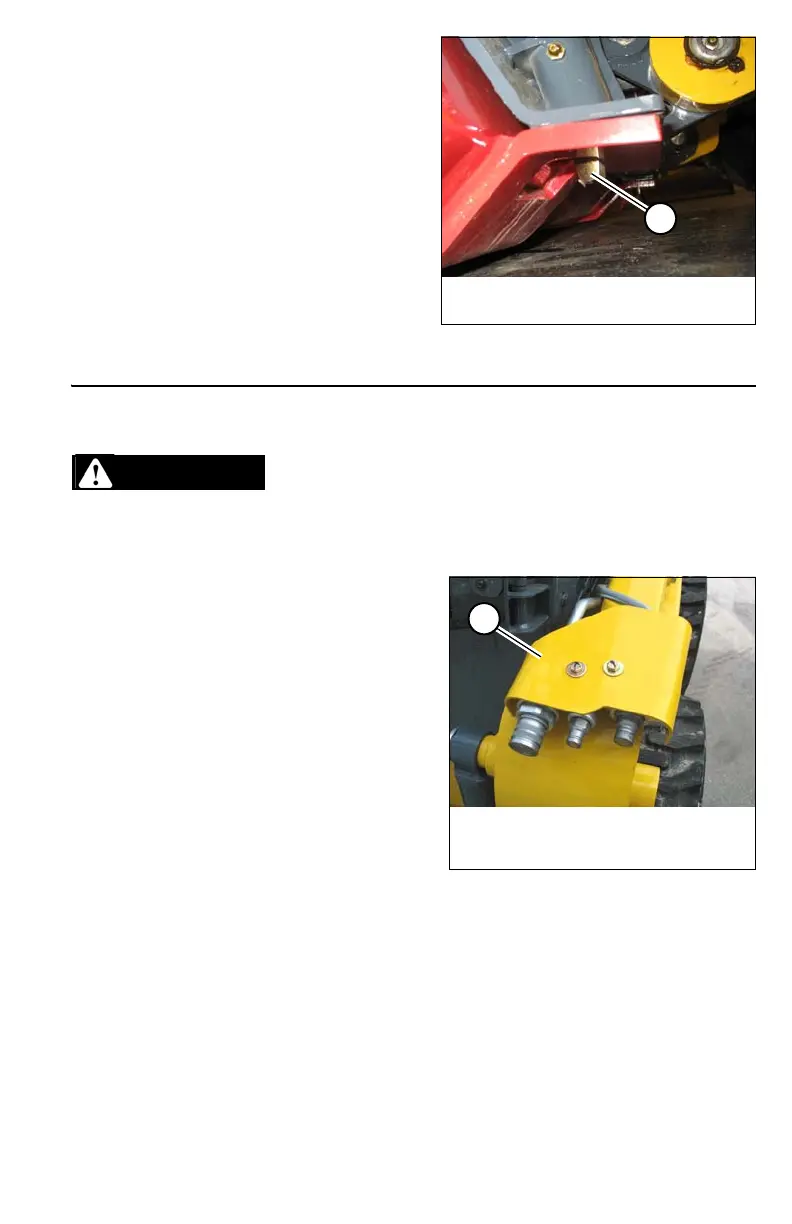

Figure 47 – Hitch Locking Pins
F
Figure 48 – Auxiliary Hydrau-
lics Couplers
G
