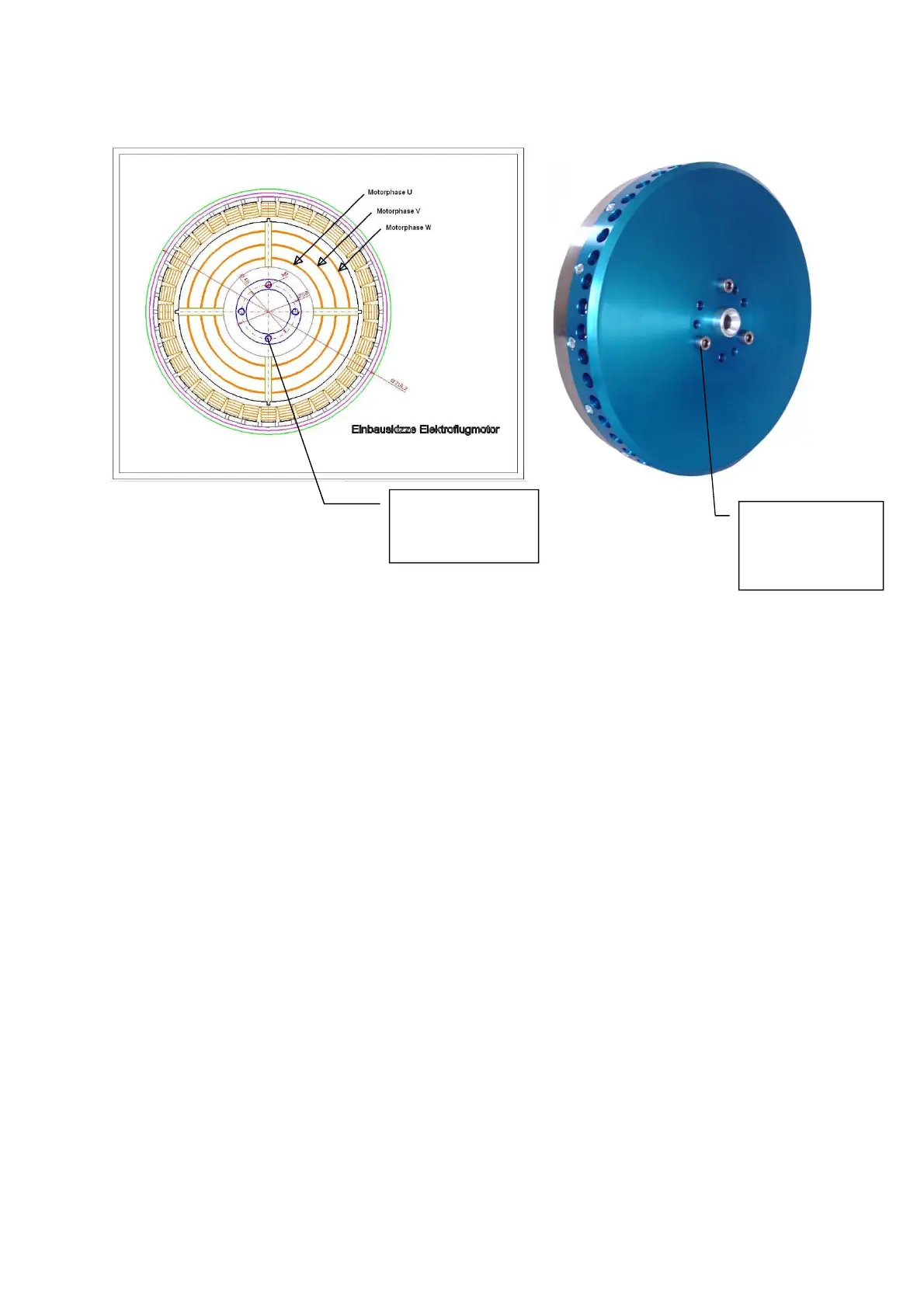

Montage / Mounting of the HPD12/16:
4 threads M6 for
motor fastening;
torque = 4-6Nm
6 Holes M6 for
propellerflange
mounting. torque
= 4-6Nm
Rueckansicht / Rear view
/
Motor phase U
/
Motor phase V
/
Motor phase W
