30

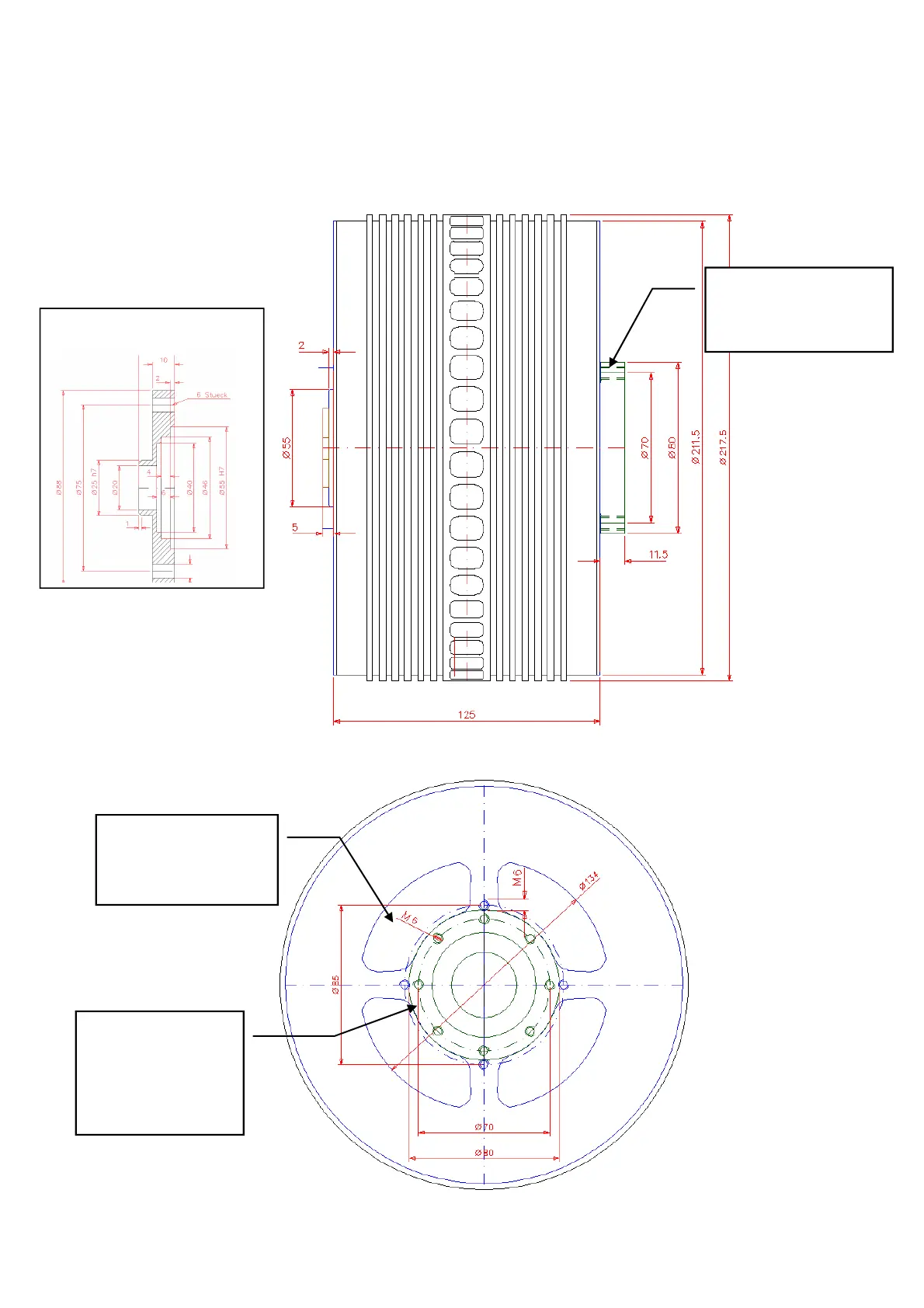

Einbauzeichnung/Abmessungen HPD32D / HPD40D: /
Installation drawing/dimensions HPD32D / HPD40D:
/
Rückansicht: / Rear view:
Propellernaben Adapter
Propellernaben Adapter /
Propeller hub adapter
Motor-
Befestigungsflansch
Motor mounting flange
4 Lufteinlasssegmente
für Kühlluftzufuhr / 4
air inlet segments for
cooling air supply
Befestigungsflansch
8 * M6 auf Teilkreis
70mm / Mounting
flange 8 * M6 on
pitch circle 70mm
