3.2 Mechanical side stops

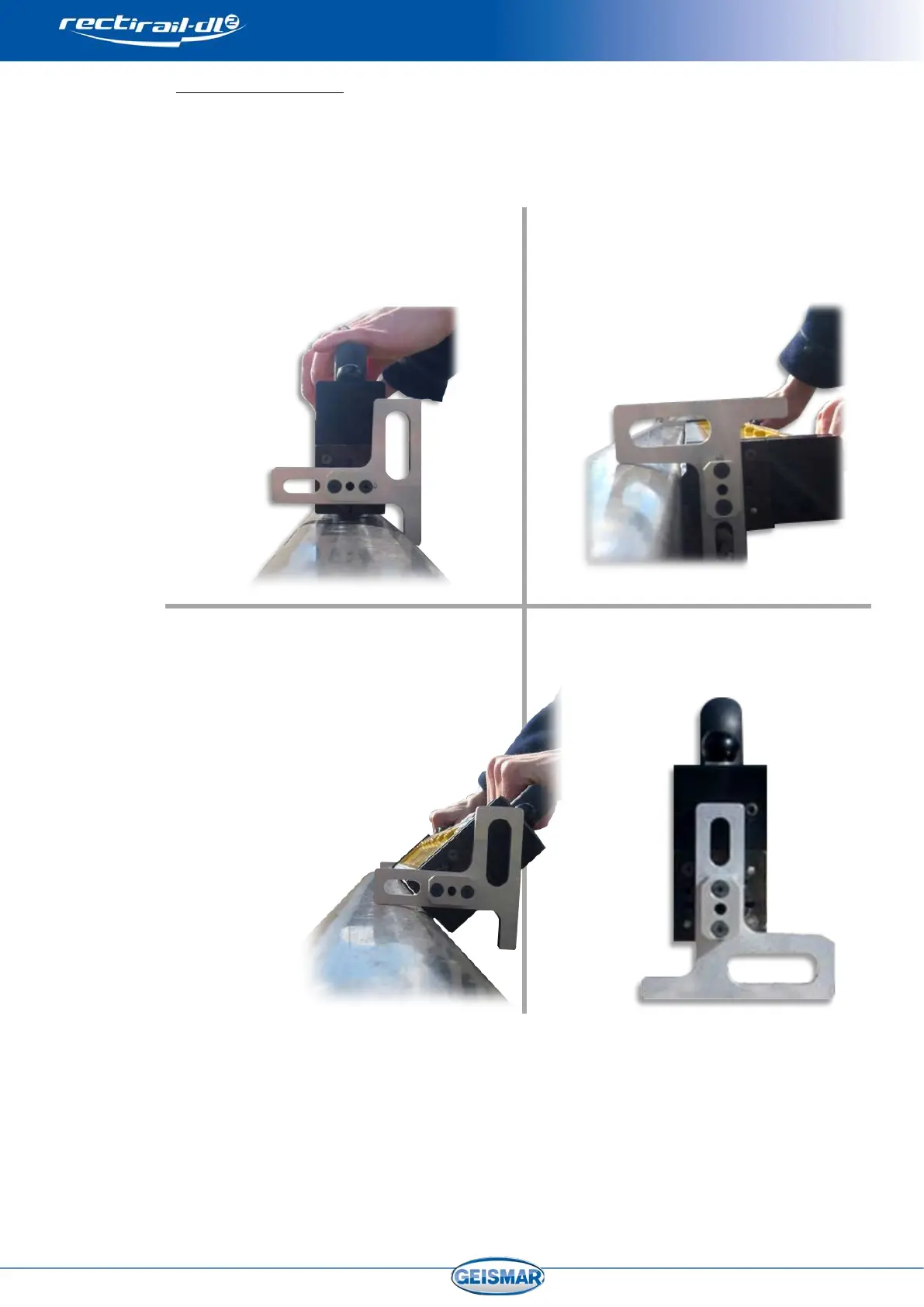

These stops have 4 indexed positions. To choose their position,
pull them outside and rotate them until the required configuration is reached.
Rail profile measurement
(head)
Rail route measurement
(side)
(0° position)
(90° position)
Fillet measurement at 45°
(45° position)
Ground installation.
Rest position.
Note: According to the measurement mode and the chosen settings, you will be asked
to identify rule position before taking a measurement (grouped mode or simple mode
with choice of position, see §0. 5.5.4 ).
