OptiGun GA04-E Assembly / Connection
•
19
Assembly / Connection
Connecting the gun
The gun is delivered ready-to-use. Just a few cables and hoses must be
connected.
The compressed air must be free of oil and water!

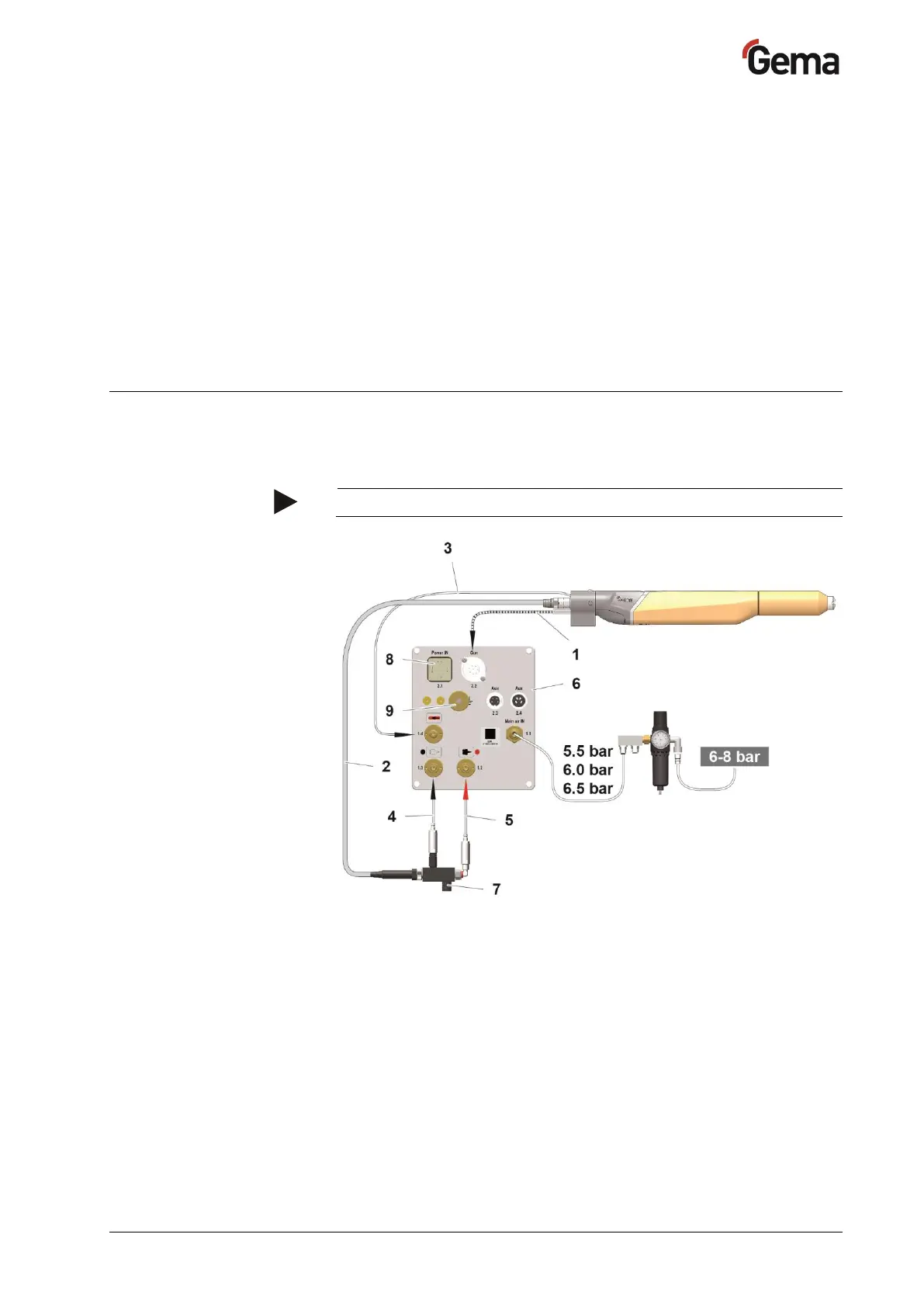

Fig.
7
: Connection instructions – overview
1 Gun cable
2 Powder hose
3 Electrode rinsing air hose
4 Supplementary air hose
5 Conveying air hose
6 OptiStar Control unit
7 Injector
8 Power supply
9 Grounding connection
