Spare parts list OptiGun GA04-E
OptiGun GA04-E – complete
Only parts were included in the spare parts list, which the user
can replace himself without problems!
– If the powder gun cable is defective, it is to be completely sent
in for repair!
OptiGun GA04-E Automatic gun – complete with flat jet nozzle, polarity negative,
incl. pos. 1-14 (without pos. 4, 5, 6)
1025 224
OptiGun GA04-E Automatic gun – complete with round jet nozzle, polarity
negative, incl. pos. 1-14 (without pos. 2, 3)
1025 223
1
Powder gun body OptiGun GA04-E – complete, polarity negative
1025 263
2
Flat jet nozzle – complete, see Spare parts list "Flat jet nozzles"
3
Threaded sleeve – complete, see Spare parts list "Flat jet nozzles"
4
Round jet nozzle – see Spare parts list "Round jet nozzles"
5
Threaded sleeve – complete, see Spare parts list "Round jet nozzles"
6
Deflector – see Spare parts list "Round jet nozzles"
Gun cable pack, complete – incl. pos. 7 and 8
Gun cable pack 20 m
1025 302
Gun cable pack 30 m
1025 303
7
Gun cable complete – see Spare parts list "Gun cable"
8
Electrode rinsing air hose – Ø 6/4 mm (not shown)
103 144*
9
Gun fixture
1008 711
10
Cleaning brush – Ø 12 mm (not shown)
389 765
Parts kit (pos. 11-14)
11
Cylinder screw – M8x50 mm
235 113
12
Washer – Ø 8.4/20x2 mm
215 880
13
Quick release connection – NW5, Ø 6 mm, for pos. 8
200 840
14
Cable tie with Velcro closure (8x) (not shown)
303 070
15
Powder hose – Ø 16/11 mm (not shown)
103 012*#
* Please indicate length # Wearing part

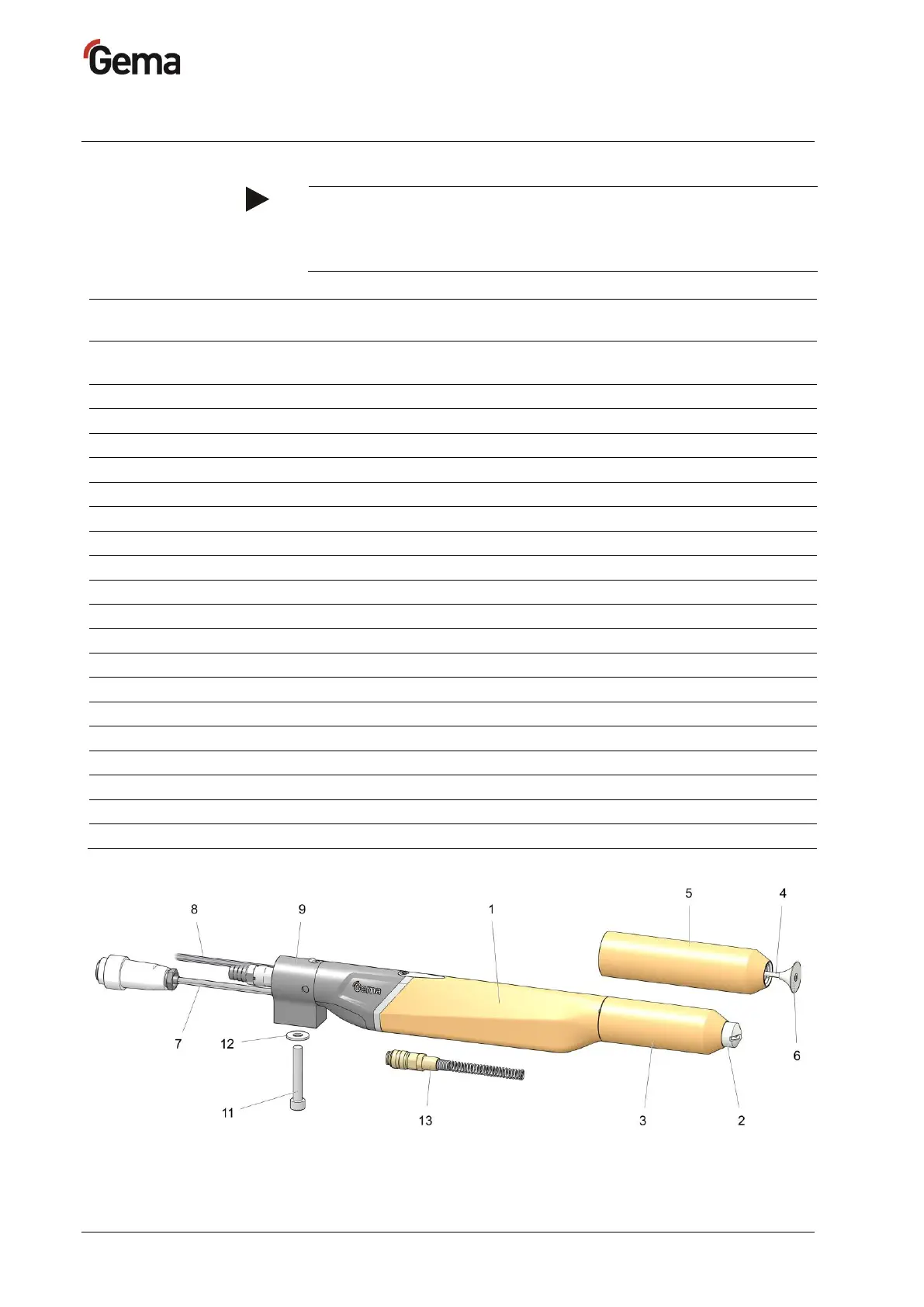

Fig.
10
: OptiGun GA04-E – complete
