Gema OptiGun GA04-E - Round Jet Nozzles; Gun Extensions

Rev. 00 12/23
OptiGun GA04-E Spare parts list
•
51

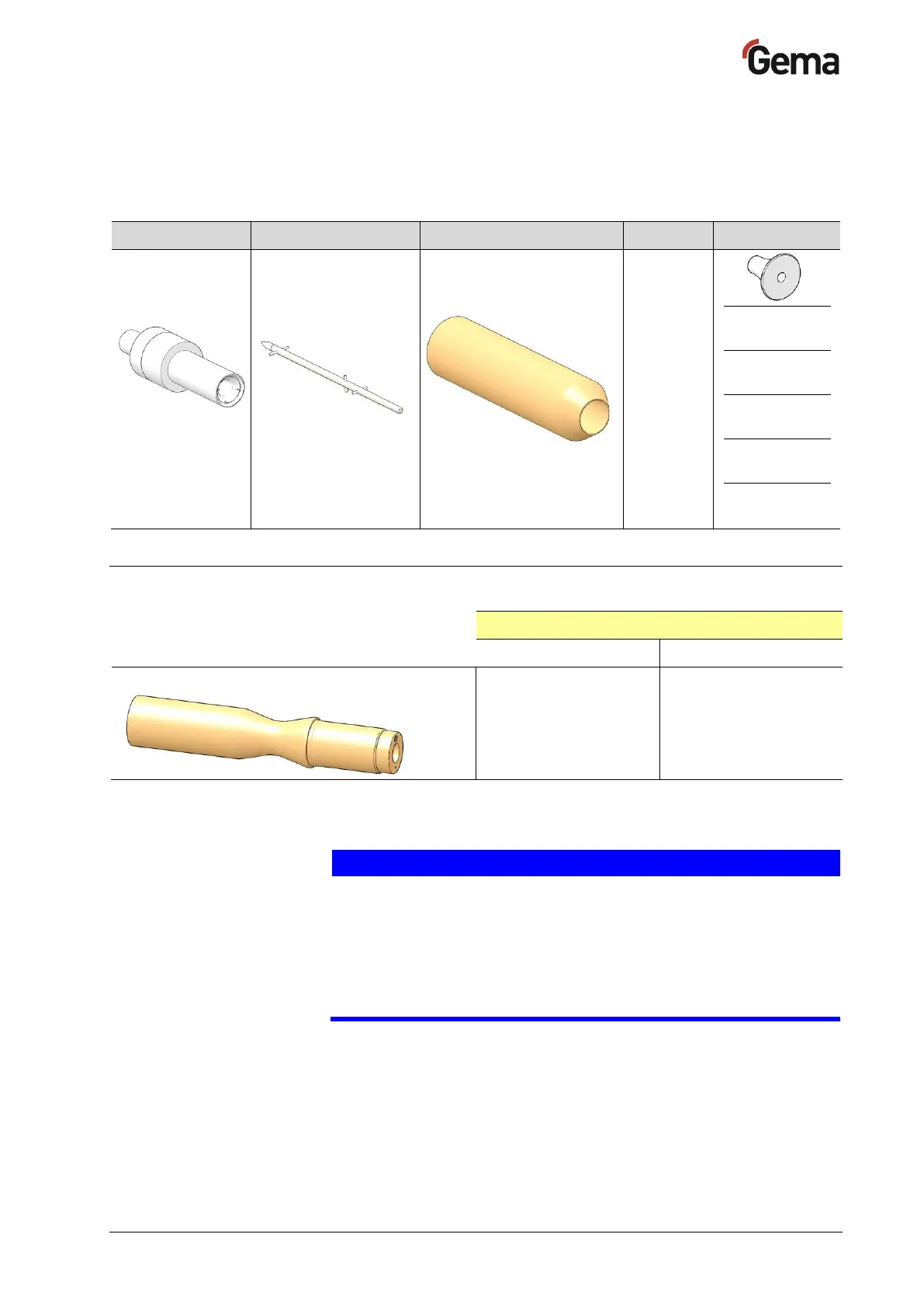

Round jet nozzles
Round jet nozzle NS11-E
A
B
Threaded sleeve (C)
A + B + C
Deflectors
NS11-E
1009 439
1002 249
405 736
NS11-E
1010 922
Ø 15 mm
400 262
Ø 24 mm
400 181
Ø 28 mm
400 254
Ø 32 mm
400 238
Ø 50 mm
400 246
Gun extensions
Gun extension
150 mm
300 mm
Extension without nozzle
1
1010 501
1010 502
1
available nozzles: see chapter "Nozzle combinations – overview
(wearing parts)" on page 50
ATTENTION
When coupling extensions, leverage forces are created.
Lever forces when coupling more than two extensions can damage
the gun.
► The extensions (150 mm/300 mm) may be connected TO ONLY
ONE ADDITONAL extension (150 mm/300 mm).
► The coupling of more than two extensions is not subject to
approval.
