Gema OptiGun GA04-E - Angled Nozzles

Rev. 00 12/23
OptiGun GA04-E Spare parts list
•
49
Angled nozzles
A
Angled nozzle PA03-E-90° – complete (pos. 1, 4, 5)
1013 470 #
B
Angled nozzle PA03-E-60° – complete (pos. 2, 4, 5)
1010 480 #
C
Angled nozzle PA03-E-45° – complete (pos. 3, 4, 5)
1013 670 #
1
PA03-E-90° knee piece – complete
1013 465 #
2
PA03-E-60° knee piece – complete
1010 479 #
3
PA03-E-45° knee piece – complete
1013 669 #
4
Threaded sleeve
1010 476
5
Flat jet nozzle – See chapter "Flat jet nozzles" on page 50.
# Wearing part
A
B
C

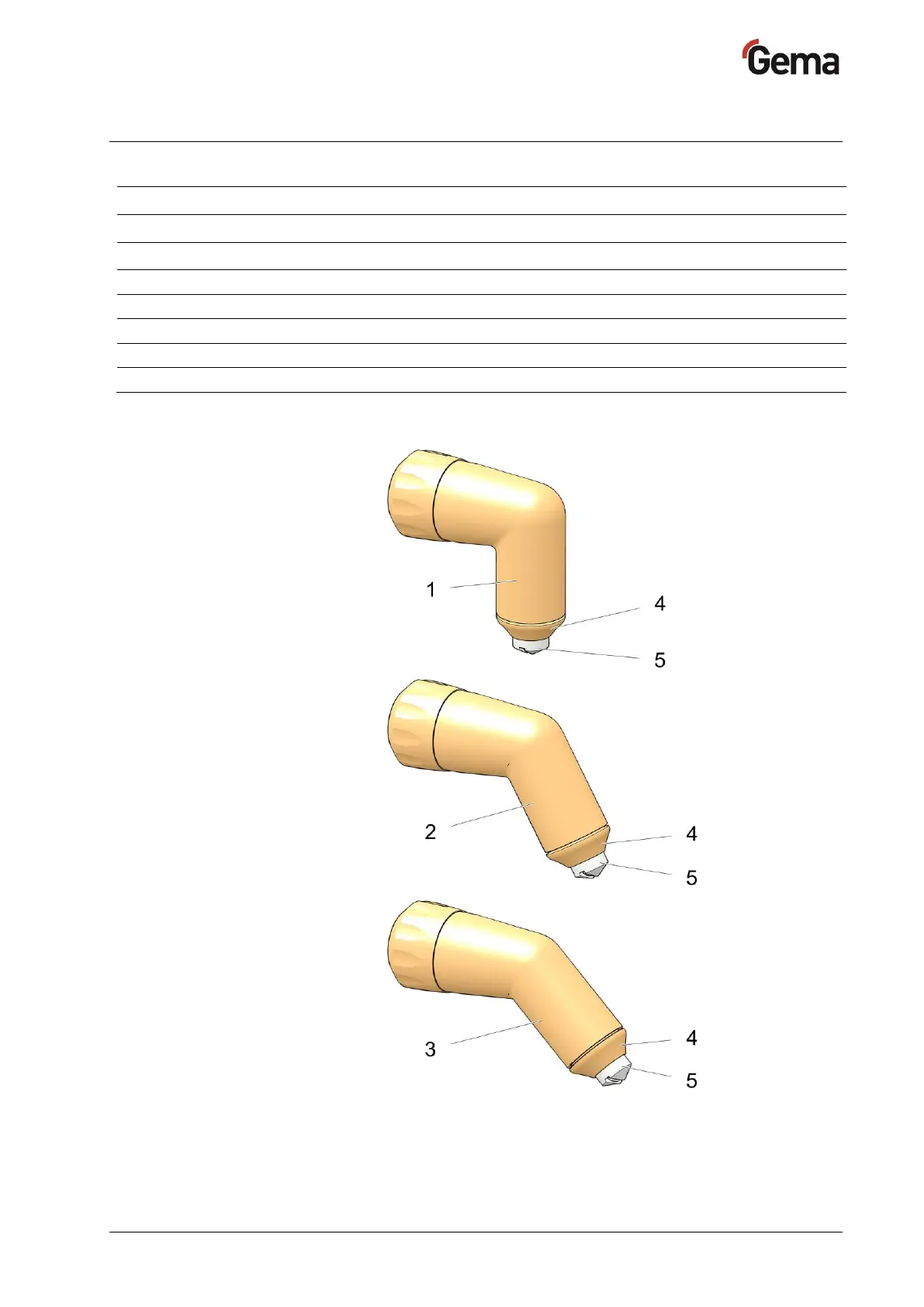

Fig.
16
: Angled nozzles
