Gema OptiGun GA04-E - Supercorona

Rev. 00 12/23
48
•
Spare parts list OptiGun GA04-E
SuperCorona
A
SuperCorona for flat jet nozzle – complete
L=224 mm – without extension
1025 141#
L=374 mm – for extension 150 mm
1025 143#
L=524 mm – for extension 300 mm
1025 145#
B
SuperCorona for round jet nozzle – complete
L=244 mm – without extension
1025 142#
L=394 mm – for extension 150 mm
1025 144#
L=544 mm – for extension 300 mm
1025 146#
SuperCorona connection – complete (pos. 1-3)
1025 130
1
SuperCorona connection
1025 150
2
Screw – M4x14 mm
1025 161
3
Retaining washer – M4
1025 111
# Wearing part

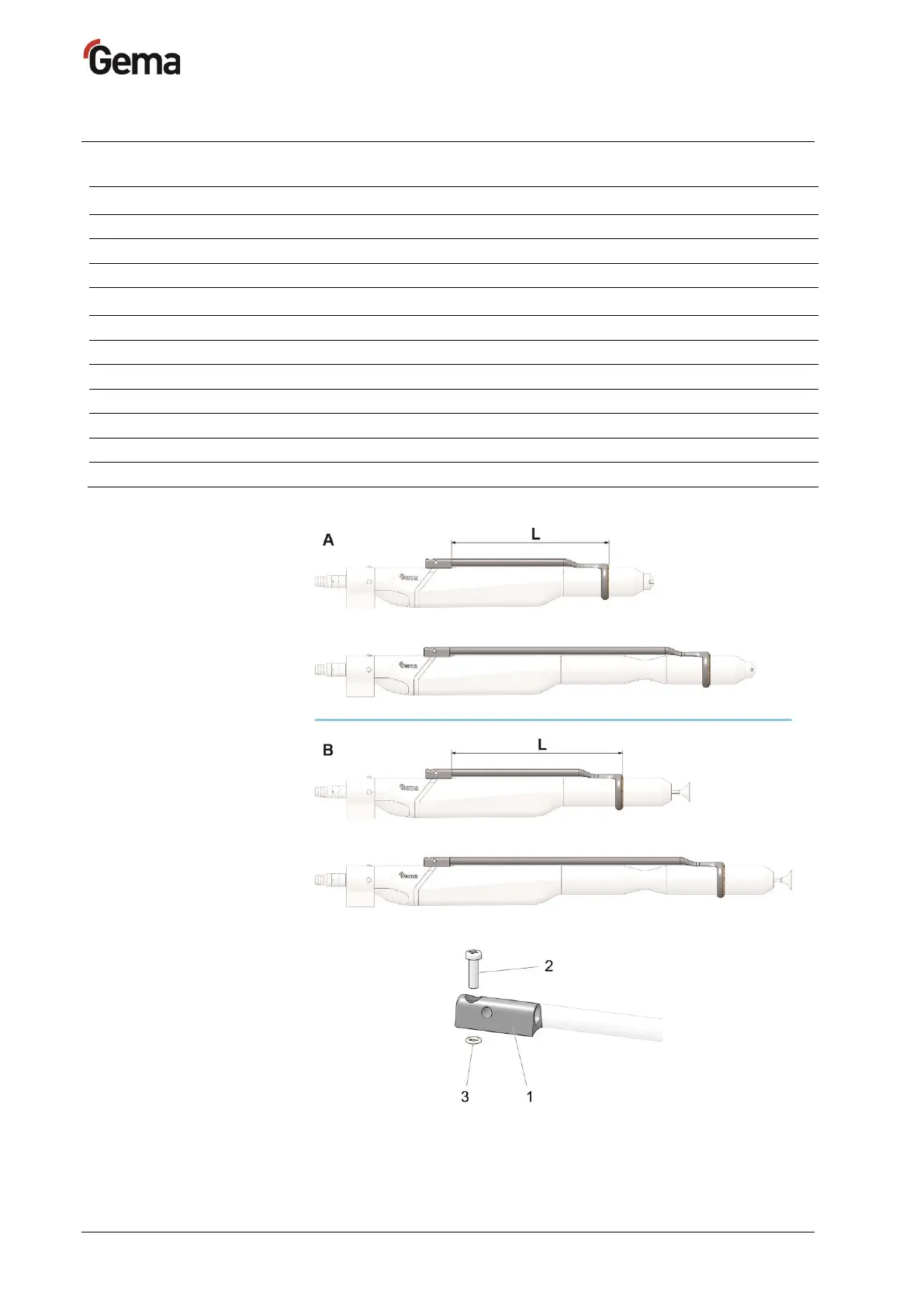

Fig.
14
: SuperCorona
Fig.
15
: SuperCorona – connection
