Gema OptiGun GA04-E - Gun Rear Piece

Rev. 00 12/23
46
•
Spare parts list OptiGun GA04-E
Gun rear piece
1
Gun rear piece – incl. pos. 1-4
1025 105
2
Screw-in nipple – M7-Ø 6 mm
1020 731
3
Lock knob
382 833
4
Screw – M3x3 mm
266 795
5
Rear piece cover – complete, incl. pos. 6 and 7
1025 109
6
Screw – M4x6 mm
214 639
7
Retaining washer – M4
1025 111
8
Sealing piece
1025 100
9
Gasket
1025 102
10
Gasket (cascade)
1025 101
11
Ground plate
1025 282
12
Screw – M4x5 mm
1025 163
13
Threaded bolt – complete, incl. pos. 14
1025 182
14
O-ring – Ø 4x1.5 mm
1025 168
Fig.
12

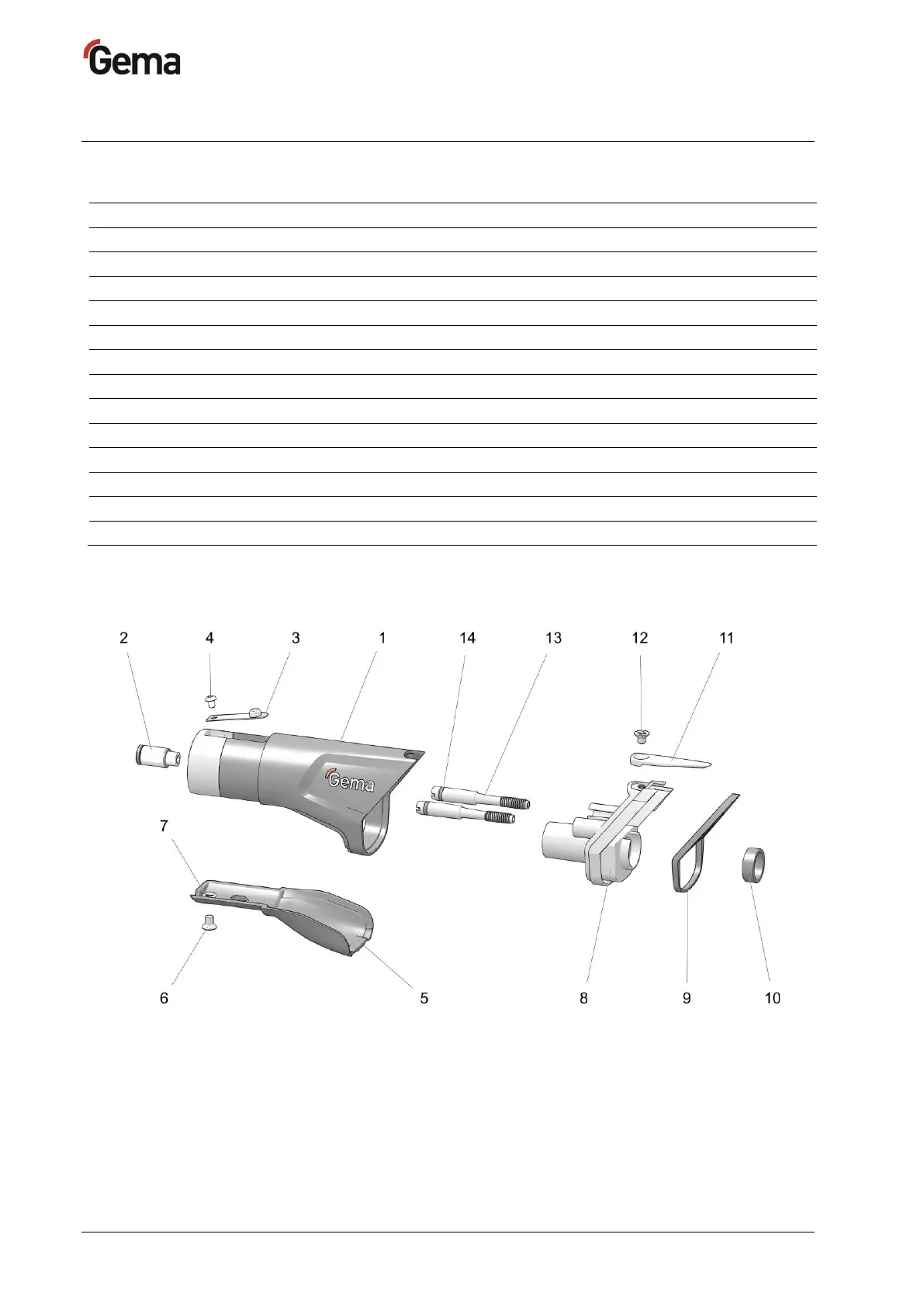

: Gun rear piece
