Gema OptiGun GA04-E - Setting the Electrode Rinsing Air

Rev. 00 12/23
OptiGun GA04-E Operation
•
27

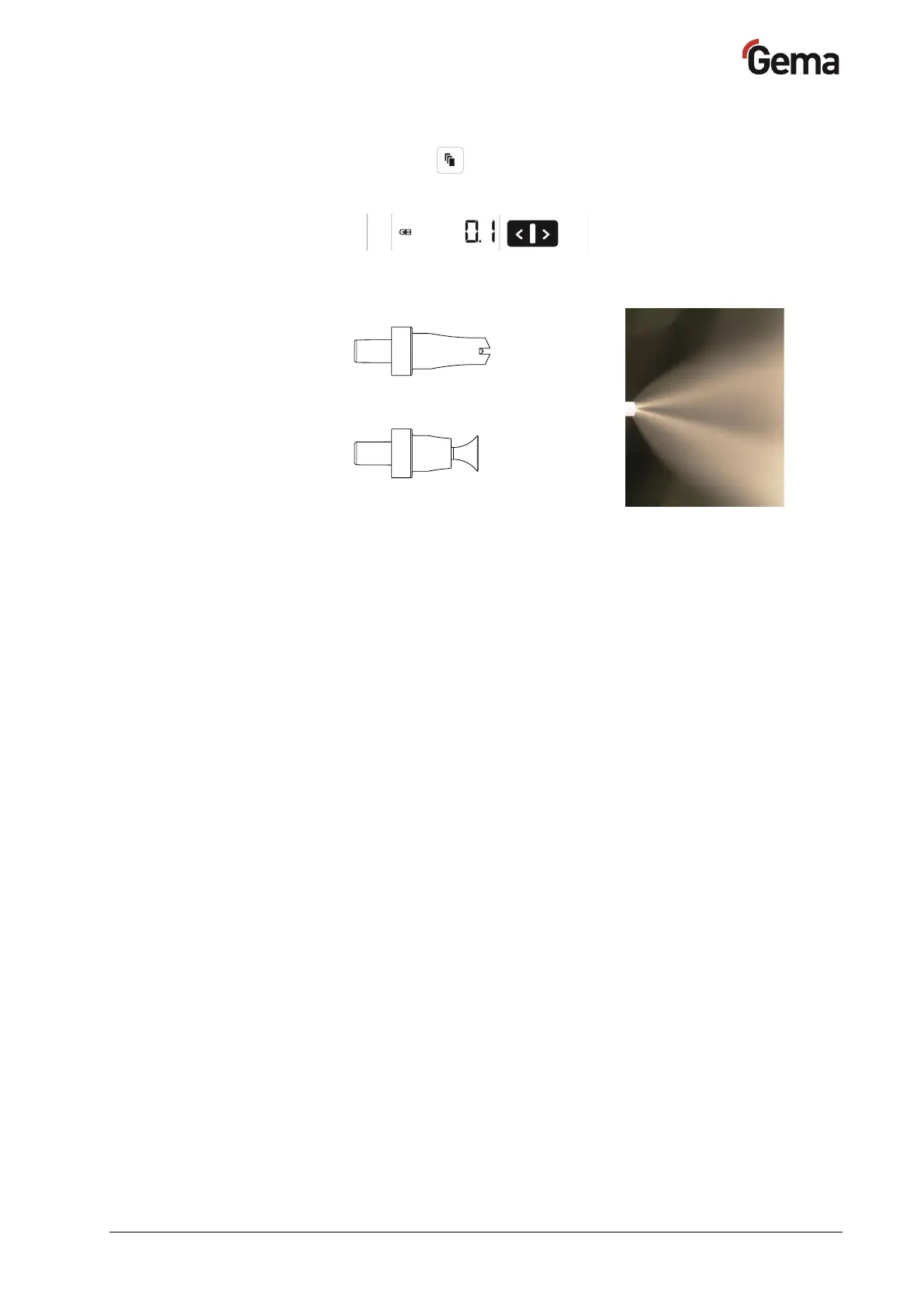

Setting the electrode rinsing air
1. Press the key.
The second display level will be shown.
2.
Adjust the correct electrode rinsing air according to the applied
nozzles (deflector plate, flat jet nozzle)
≈ 0.1 Nm³/h
≈ 0.5 Nm³/h
too much electrode rinsing air
3. If in this display level is no operation for 3 seconds, the dispay will
automatically switch back to main default display level.
