Gema OptiGun GA04-E - Gun Cable

Rev. 00 12/23
OptiGun GA04-E Spare parts list
•
47
Gun cable
If the powder gun cable is defective, the entire cable is to be sent
to an authorized service center for repair!
Gun cable – complete, 20 m
1025 173
Gun cable – complete, 30 m
1025 174
1
Screw – M4x6 mm
1008 639
2
O-ring – Ø 9.5x1.5 mm
1025 166#
3
O-ring – Ø 7.5x1.5 mm
1025 165#

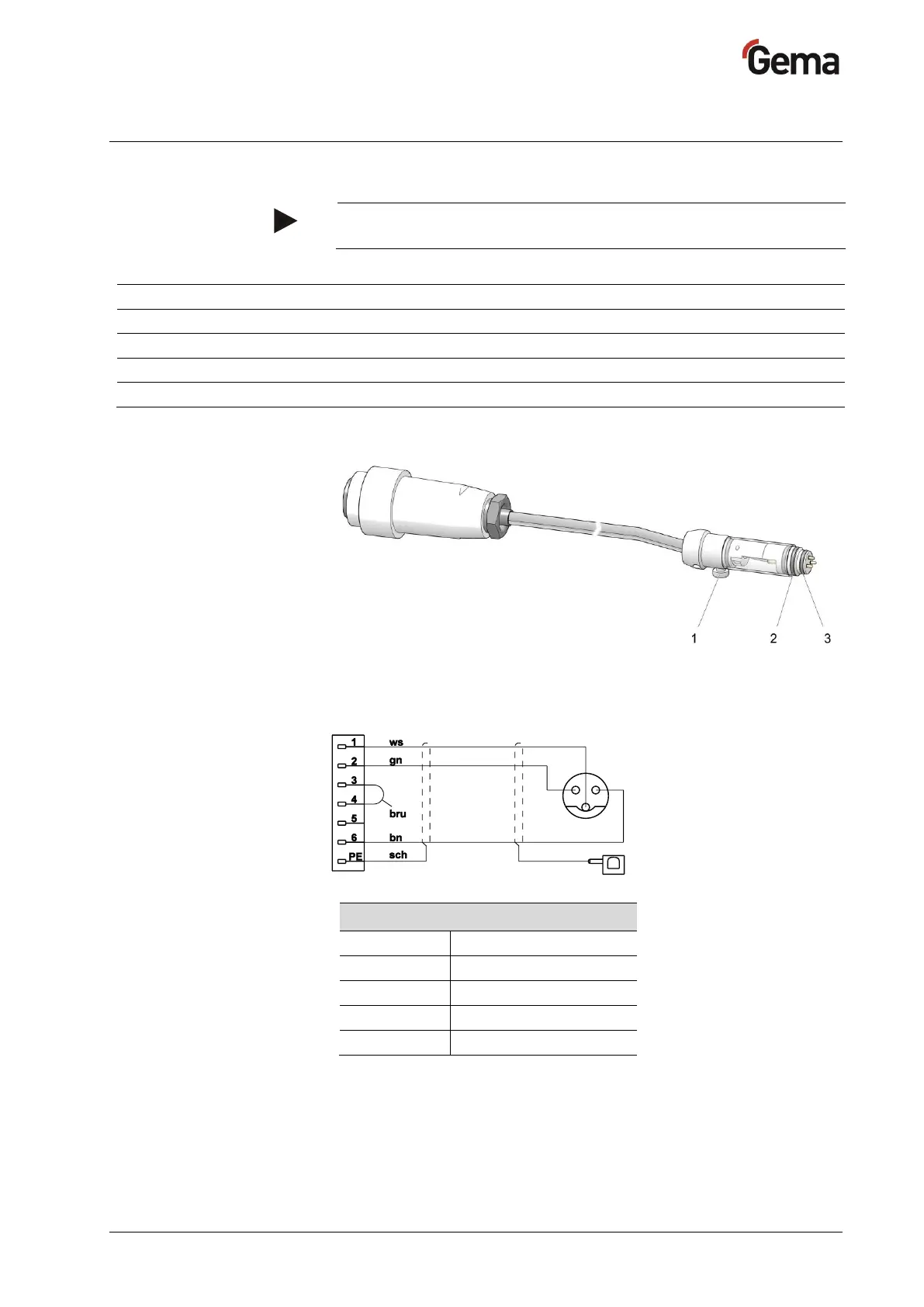

Fig.
13
: Gun cable (complete)
Pin allocation
ws
white
gn
green
bru
Bridge
bn
brown
sc
Shield
