Generac Power Systems Power Zone Pro User Manual

Owner’s Manual for Power Zone Pro Main Controller 5
General Information
Dimensions
009649
A
B
C
H
J
K
D
E
F
G
I

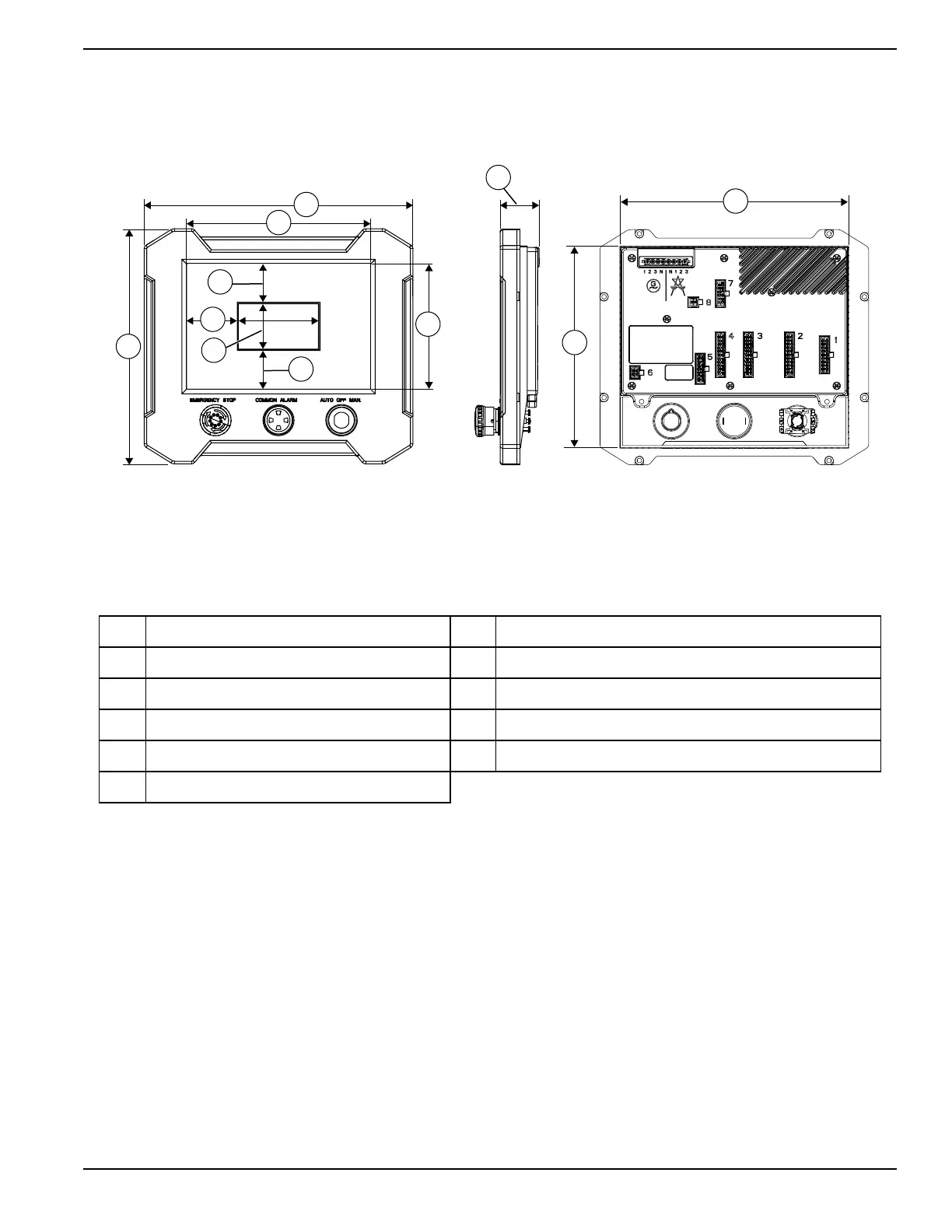

Figure 2-2. Controller Assembly Dimensions
A 11.02 in (280.0 mm) G 1.52 in (38.5 mm)
B 12.60 in (320.0 mm) H 5.91 in (150.0 mm)
C 8.66 in (220.0 mm) I 1.27 in (32.2 mm)
D 1.72 in (43.7 mm) J 9.45 in (240.0 mm)
E 2.24 in (57.0 mm) K 10.71 in (272.1 mm)
F 2.67 in (67.7 mm)
NOTE: Dimensions shown are for reference only, and may vary depending on generator size and application.

Generac Power Systems Power Zone Pro Specifications

General

Brand	Generac Power Systems
Model	Power Zone Pro
Category	Controller
Language	English
