Model 4802A
30
5.4.4 A1 Alarm Options
Next, the A1 LED will be flashing while the Energized/De-energized option is displayed
(Figure 53). The display will indicate the current selection, (En or dE). Press the
Mode/Select Switch to toggle the selection. De-Energized is the factory default for this
selection.

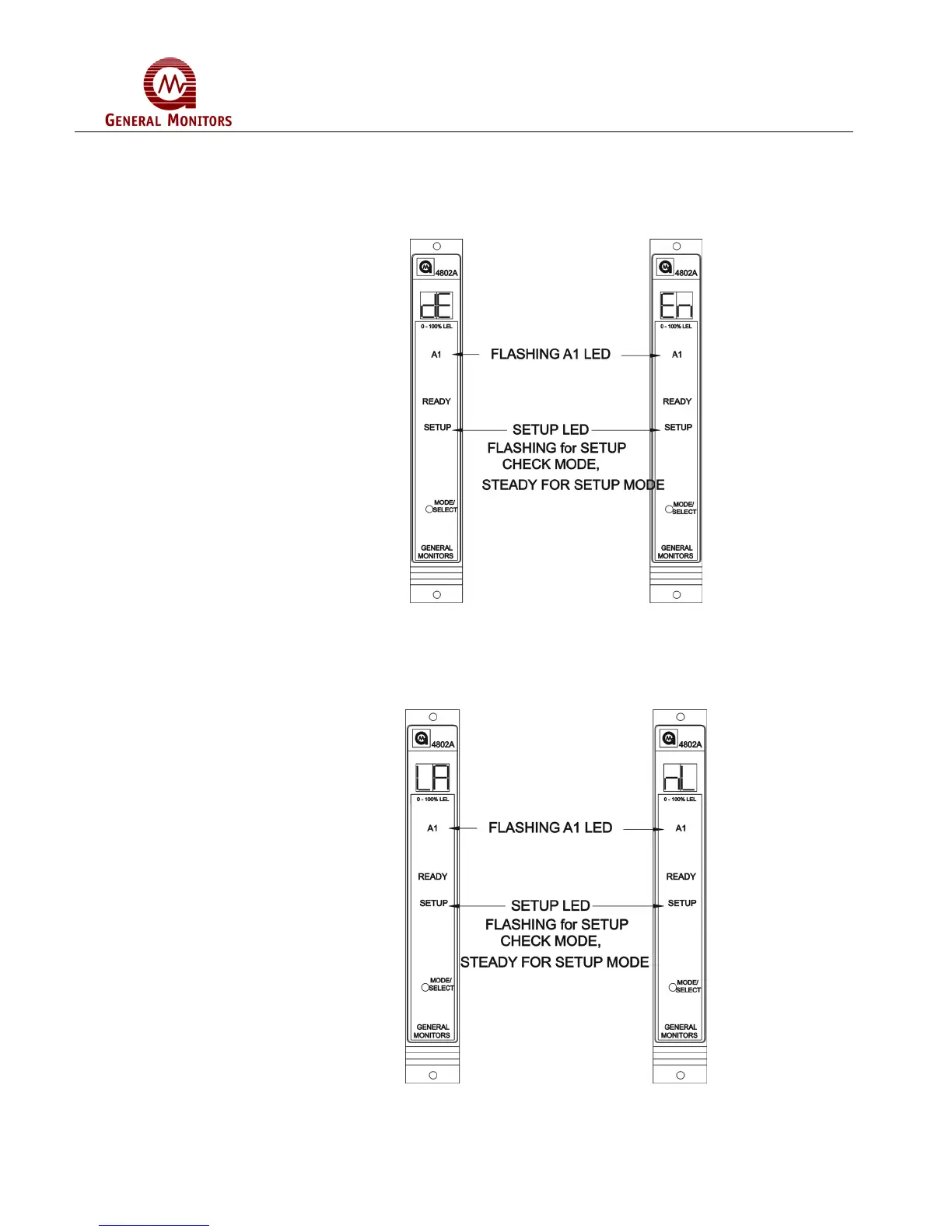

Figure 53 – A1 Energized-De-Energized Alarm Option
The A1 LED on the front panel will be flashing while the latching/non-latching option is
displayed (Figure 54). The display will indicate the current selection, (nL or LA). Press
the Mode/Select Switch to toggle the selection. Non-Latching is the factory default for
this selection.
Figure 54 – A1 Latching/Non-Latching Alarm Option
