Model 4802A
32
5.4.6 Fault/Inhibit Option
Next, the user will select the Fault/Inhibit option. The FAULT LED on the front panel will
be flashing while the display indicates Ac or nA (Figure 57). An Ac selection specifies
that the Model 4802A will activate the Fault circuit while the unit is in the Inhibit Mode. A
nA selection specifies that the Model 4802A will not activate its Fault circuit when the
unit is placed in the Inhibit Mode. A nA selection will not disable the Fault circuit,
therefore, if a Fault occurs during the Inhibit Mode, the unit will activate the Fault
circuit. Not Active is the factory default for this selection.

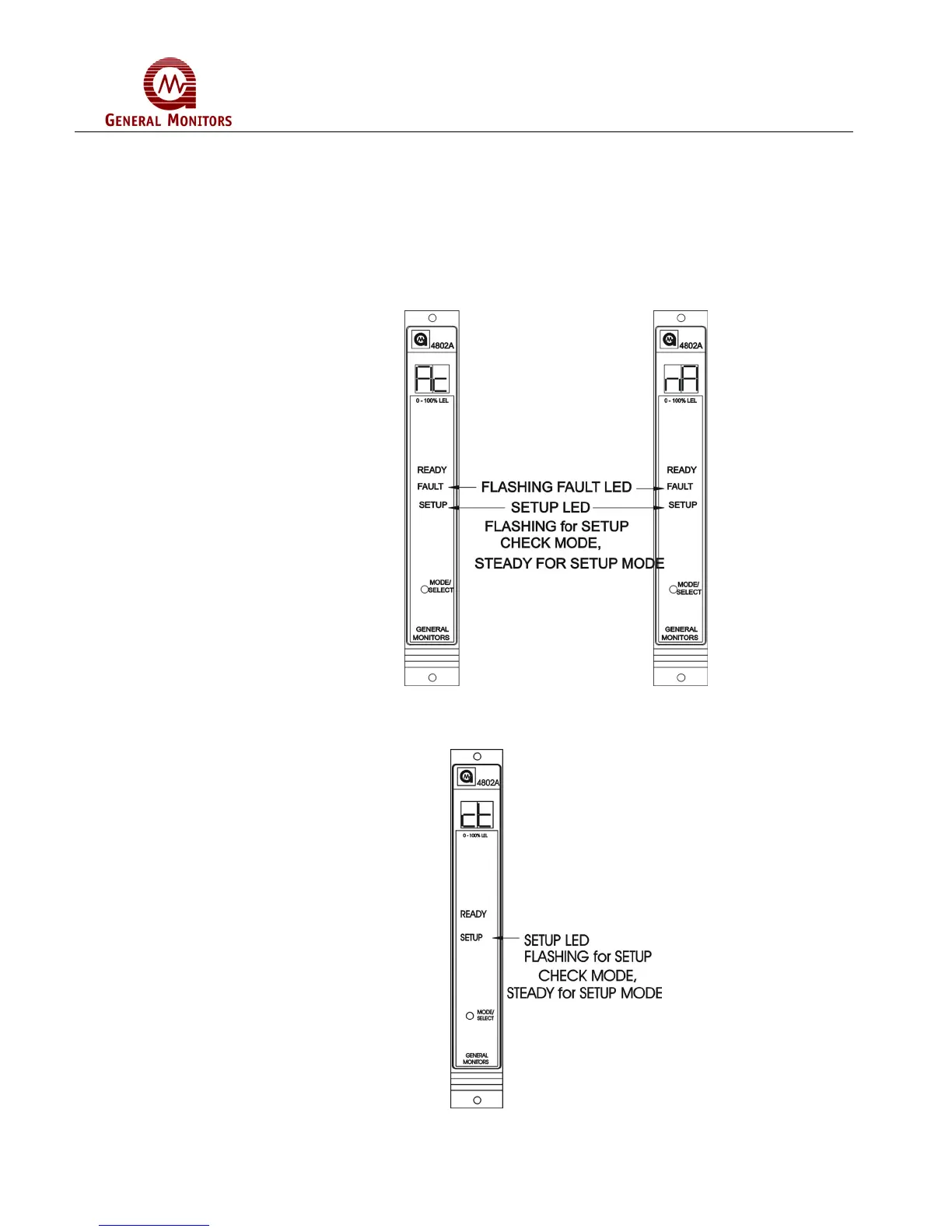

Figure 57 – Fault / Inhibit Option
Figure 58 – Entering Card Test Options
