Instrument cluster
4-6

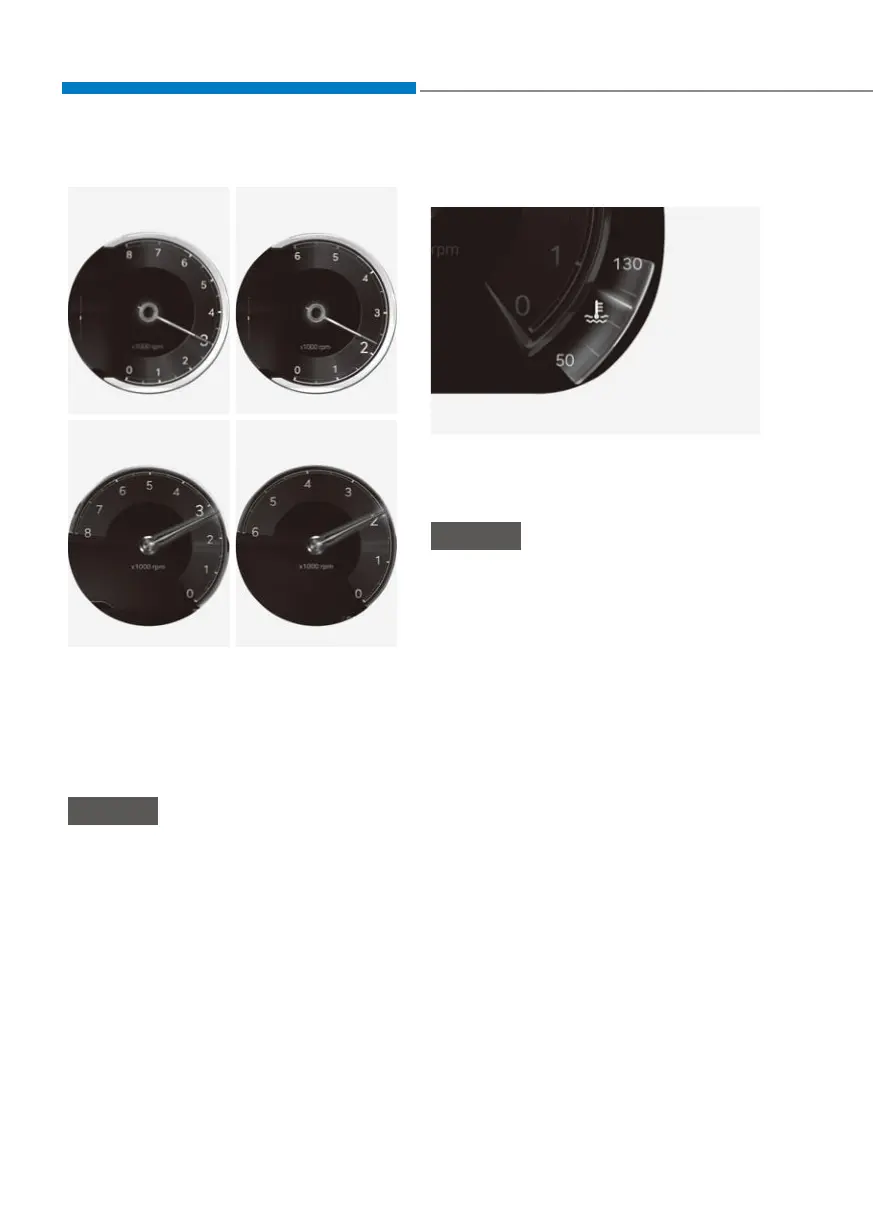

Tachometer
8-inch8-inch
•• Petrol enginePetrol engine •• Diesel engineDiesel engine
OJX1049031LOJX1049031L OJX1049031OJX1049031
12.3-inch 3D12.3-inch 3D
•• Petrol enginePetrol engine •• Diesel engineDiesel engine
OJX1049041LOJX1049041L OJX1049041OJX1049041
The tachometer indicates the
approximate number of engine
revolutions per minute (rpm).
Use the tachometer to select the correct
shift points and to prevent lugging and/
or over-revving the engine.
NOTICE
Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.
Engine coolant temperature gauge
(for 12.3-inch 3D cluster)
OJX1049043LOJX1049043L
This gauge indicates the temperature
of the engine coolant when the Engine
Start/Stop button is in the ON position.
NOTICE
If the gauge pointer moves beyond
the normal range area toward the
“H (Hot) or 130” position, it indicates
overheating that may damage the
engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” section in chapter 8.
