09
9-63
Information
Traffic Change (For Europe)
The low beam light distribution is
asymmetric. If you go abroad to a country
with opposite traffic direction, this
asymmetric part will dazzle oncoming car
driver. To prevent dazzle, ECE regulation
demand several technical solutions (ex.
automatic change system, adhesive
sheet, down aiming). This headlamps are
designed not to dazzle opposite drivers. So,
you need not change your headlamps in a
country with opposite traffic direction.

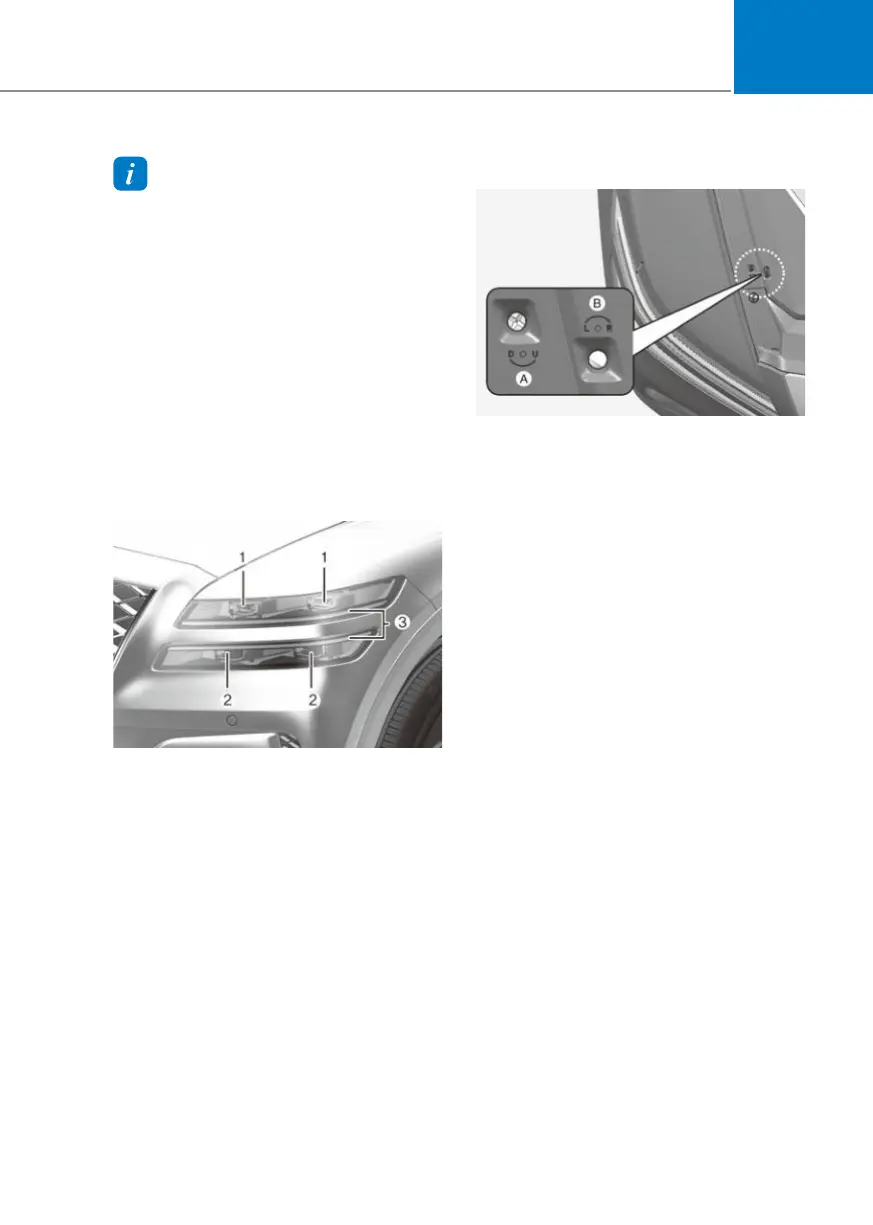

Headlamp, parking lamp, turn
signal lamp, Daytime Running
Light (DRL) replacement
OJX1099028OJX1099028
(1) Headlamp (Low)
(2) Headlamp (High/Low beam assist
(3) Parking lamp/Daytime running light/
Turn signal lamp
If the LED lamp does not operate,
we recommend that the system be
inspected by an authorised Retailer of
Genesis Branded Products.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Headlamp aiming (For Europe)
OJX1099062LOJX1099062L
[A] : Low beam and high beam vertical aiming
[B] : Low beam and high beam horizontal aiming
1. Inflate the tyres to the specified
pressure and remove any loads from
the vehicle except the driver, spare
tyre, and tools.
2. The vehicle should be placed on a flat
floor.
3. Draw vertical lines (Vertical lines
passing through respective head
lamp centres) and a horizontal line
(Horizontal line passing through
centre of head lamps) on the screen.
4. With the headlamp and battery in
normal condition, aim the headlamps
so the brightest portion falls on the
horizontal and vertical lines.
5. To aim the low beam and high beam
left or right, turn the driver clockwise
or counterclockwise.
To aim the low beam and high beam
up or down, turn the driver clockwise
or counterclockwise.
