2-7
02

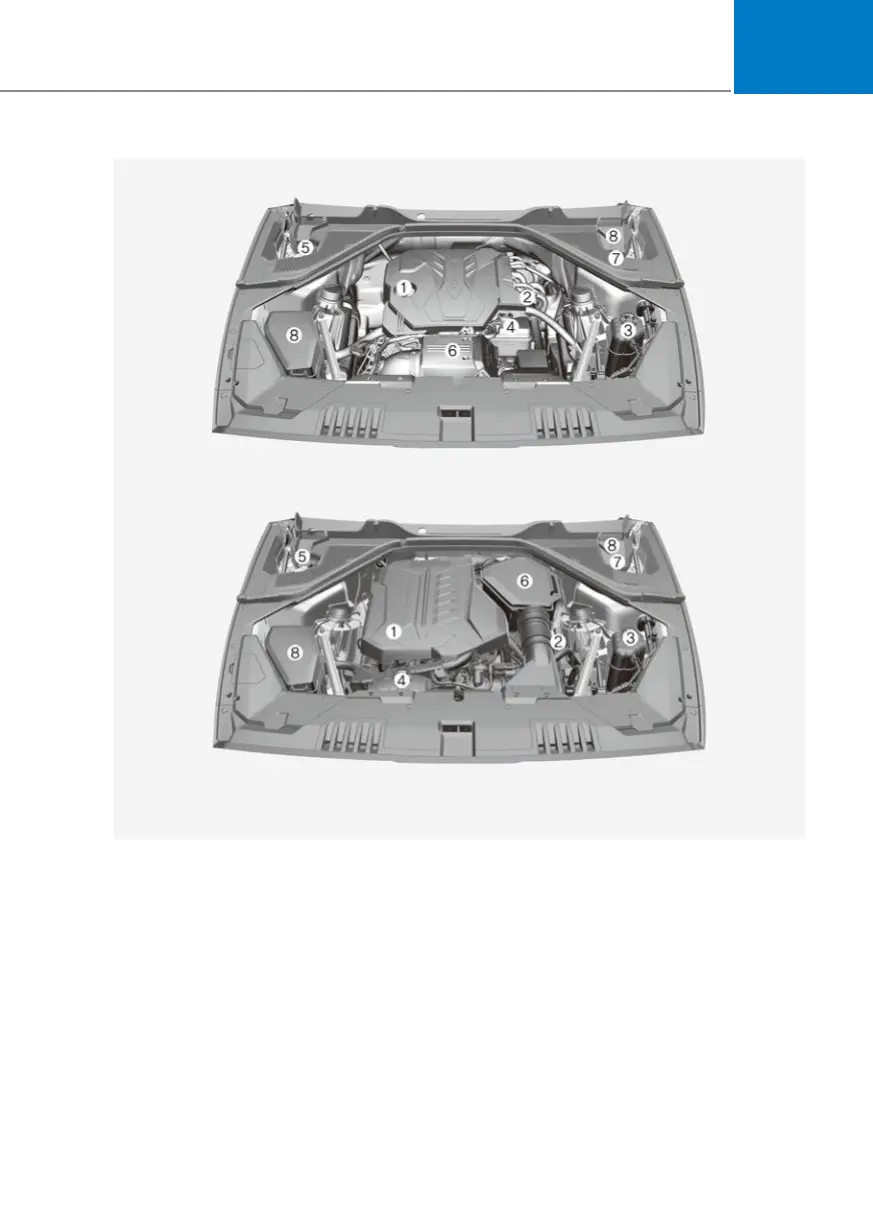

2.5L T-GDI2.5L T-GDI
3.0L TCI3.0L TCI
The actual engine room in the vehicle may differ from the illustration.
OJX1090054R/OJX1090001R OJX1090054R/OJX1090001R
1. Engine oil filler cap ................................ 9-17
2. Engine oil dipstick .................................9-16
3. Engine coolant reservoir .......................9-19
4. Water-cooled intercooler coolant
reservoir .................................................9-19
5. Brake fluid reservoir ............................. 9-22
6. Air cleaner ............................................. 9-24
7. Windscreen washer fluid reservoir ...... 9-25
8. Fuse box ................................................9-44
ENGINE ROOM
