05
5-109

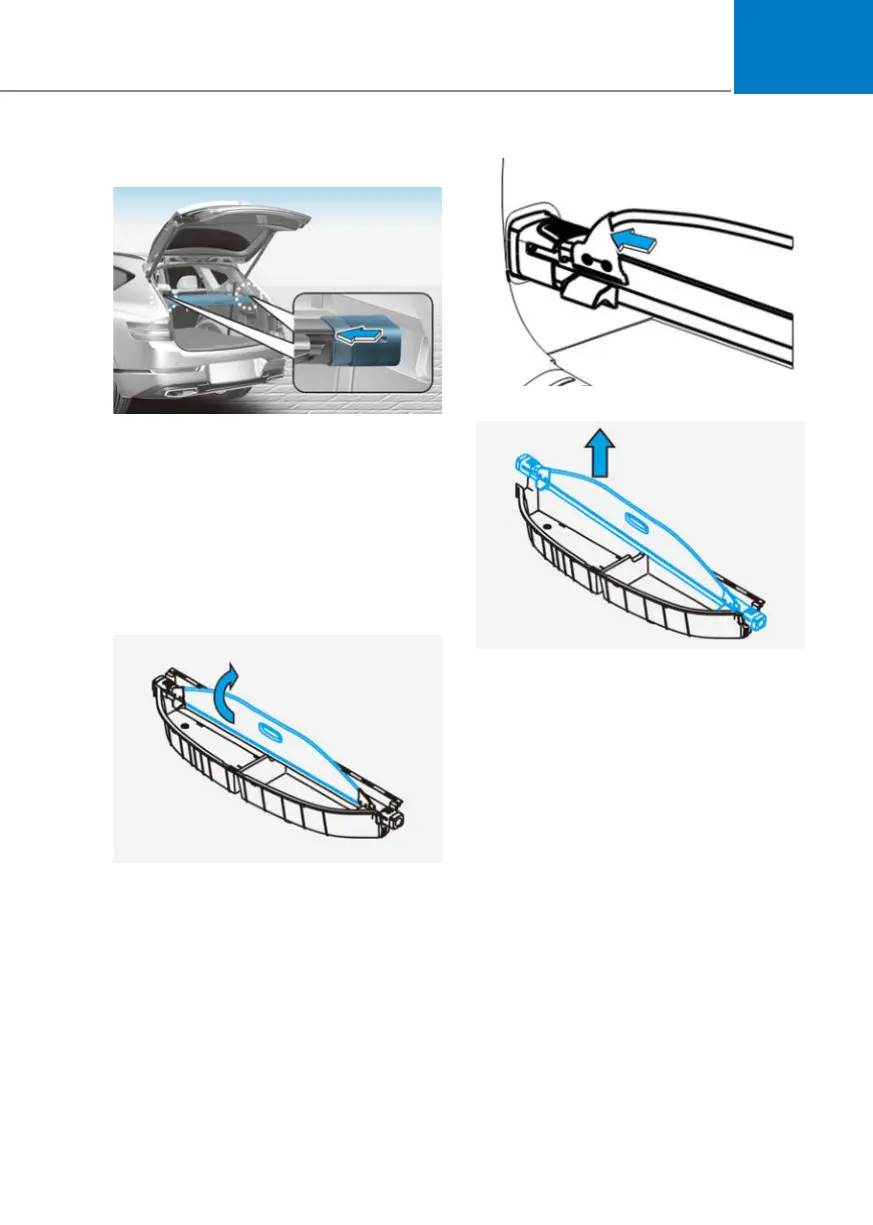

Removing the cargo security screen
OJX1059265LOJX1059265L
1. Push one side of the cargo screen
inward to compress the spring and
release the screen from the vehicle.
2. Whilst the spring is compressed, pull
out the cargo security screen.
3. Open the luggage tray and keep the
cargo security screen in the tray.
Removing the cargo security screen
from the luggage tray
OJX1059271LOJX1059271L
1. Pull up the screen board.
OJX1050272NOJX1050272N
2. Push in the guide pin.
OJX1059273LOJX1059273L
3. Whilst pushing the guide pin, pull out
the cargo security screen.
