09
9-65

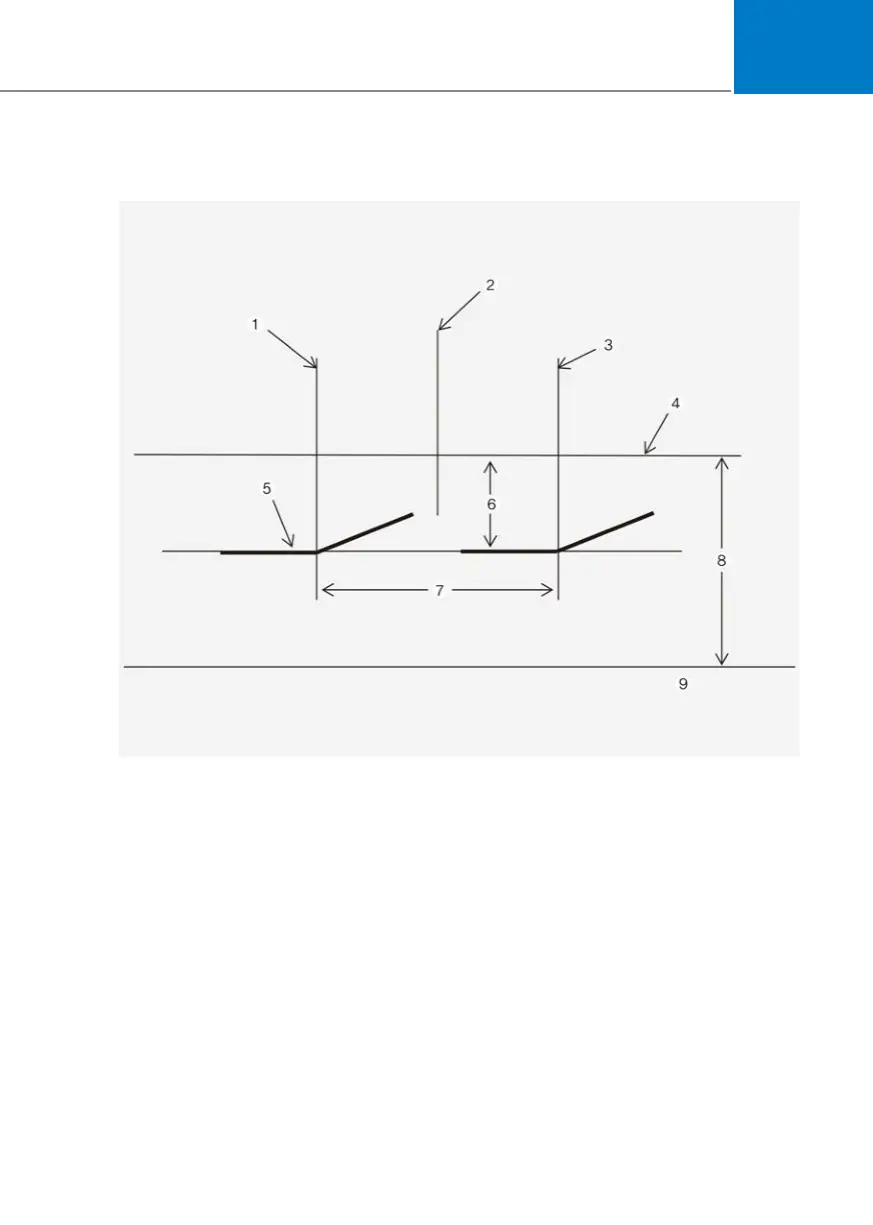

Headlamp low beam
Based on 10m screenBased on 10m screen
OJX1099064LOJX1099064L
[1] : Vertical line of the left headlamp bulb centre
[2] : Car axis
[3] : Vertical line of the right headlamp bulb centre
[4] : Horizontal line of headlamp bulb centre
[5] : Cut-off line
[6] : 100
[7] : W1 (Low beam)
[8] : H1 (Low beam)
[9] : Ground
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the
horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp levelling device
switch to “0”.
ÃThe high beam is aimed simultaneously when aiming the low beam.
