January 2012Section 4 • Repair Procedures
4 - 90 GS-30 • GS-32 • GS-46 • GS-47 Part No. 228901

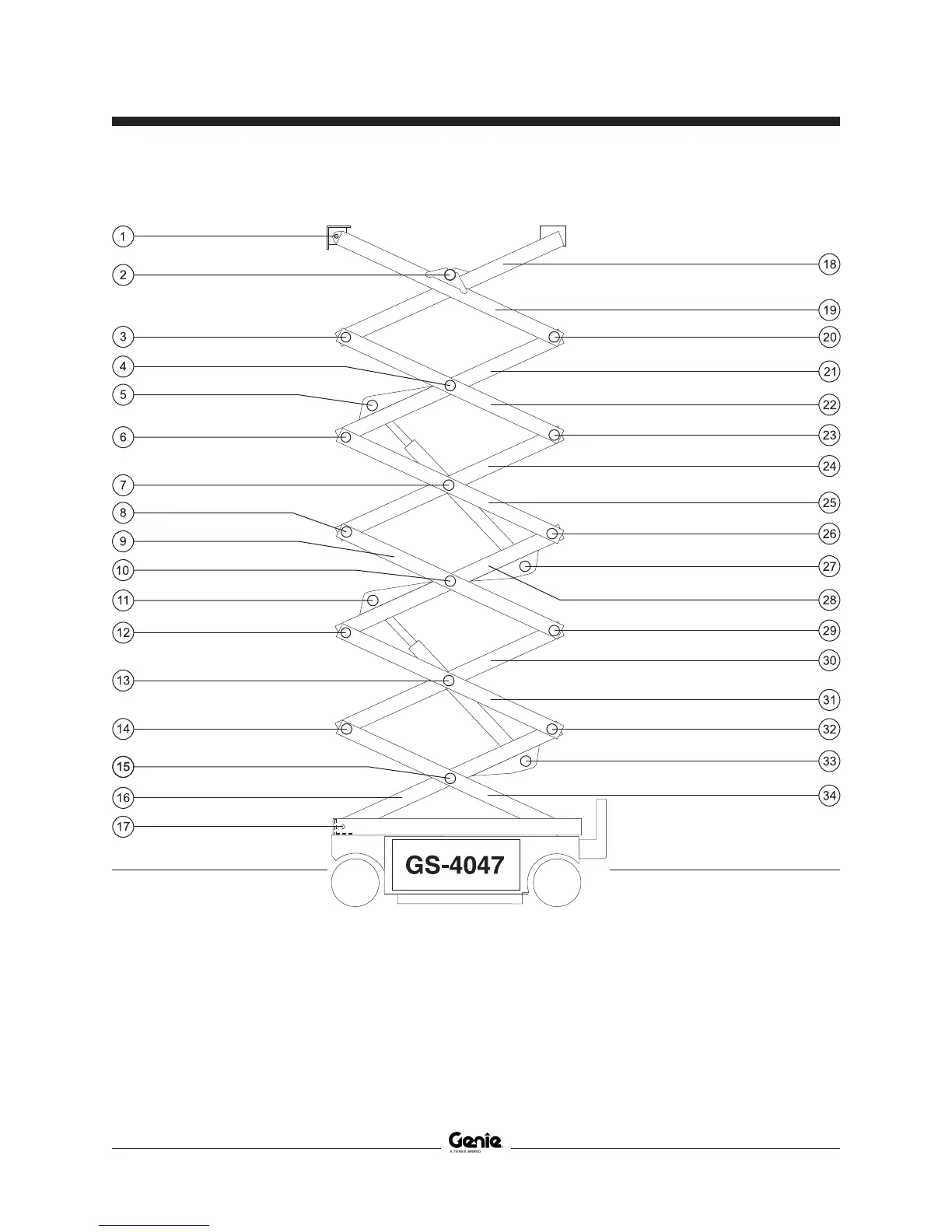

SCISSOR COMPONENTS
Non-steer endSteer end
1 Number 7 pivot pin
2 Number 6 cylinder pivot pin (2 pins)
3 Number 6 pivot pin (steer end)
4 Number 5 center pivot pin
5 Upper lift cylinder rod-end pivot pin
6 Number 5 pivot pin (steer end)
7 Number 4 center pivot pin (2 pins)
8 Number 4 pivot pin (steer end)
9 Number 3 outer arm
10 Number 3 center pivot pin (2 pins)
11 Lower lift cylinder rod-end pivot pin
12 Number 3 pivot pin (steer end)
23 Number 5 pivot pin (non-steer end)
24 Number 4 inner arm
25 Number 4 outer arm
26 Number 4 pivot pin (non-steer end)
27 Upper lift cylinder barrel-end pivot pin
28 Number 3 inner arm
29 Number 3 pivot pin (non-steer end)
30 Number 2 inner arm
31 Number 2 outer arm
32 Number 2 pivot pin (non-steer end)
33 Lower lift cylinder barrel-end pivot pin
34 Number 1 outer arm
13 Number 2 center pivot pin (2 pins)
14 Number 2 pivot pin (steer end)
15 Number 1 center pivot pin (2 pins)
16 Number 1 inner arm
17 Number 1 pivot pin (steer end) (2 pins)
18 Number 6 inner arm
19 Number 6 outer arm
20 Number 6 pivot pin (non-steer end)
21 Number 5 inner arm
22 Number 5 outer arm
