Section 6 • Schematics
January 2012
P
ar
t No
.
228901
GS-30 • GS-32 • GS-46 • GS-47
6 - 59

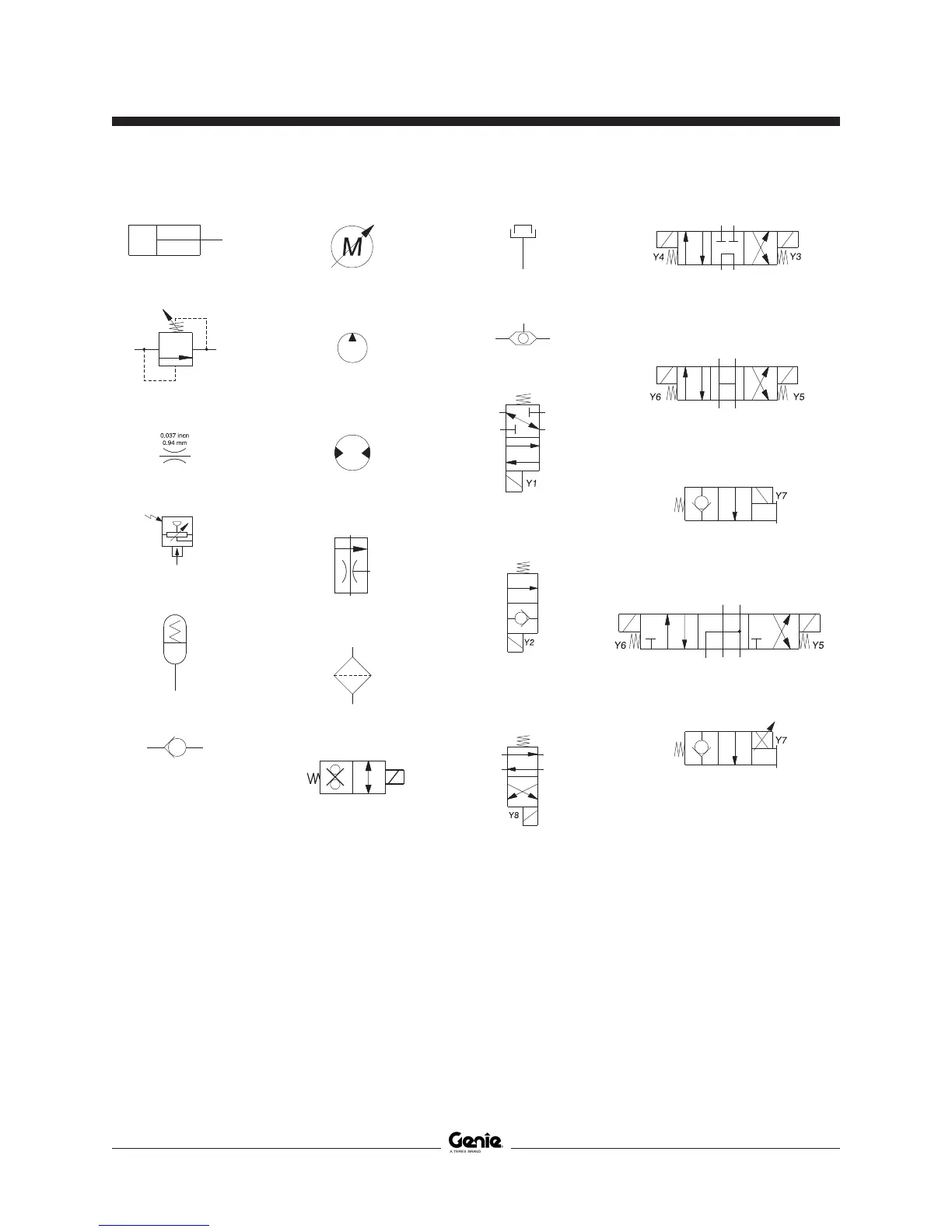

Component Reference and
Hydraulic Symbols Leg
end
Hydraulic cylinder
Variable speed
motor
Brake
Shuttle valve
Fixed displacement pump
Relief valve
Orifice
with size
Pressure transducer
Accumulator
Check valve
Filter
Priority flow regulator
Solenoid operated
2 position 4 way
directional valve
Solenoid operated
2 position 2 way
directional valve
normally closed
Solenoid operated
3 position 4 way
directional valve
Solenoid operated
2 position 4 way
directional valve
Bi-directional motor
Proportional solenoid-operated
2 position 2 way
directional valve
normally closed
Solenoid operated
3 position 5 way
directional valve
Solenoid-operated
2 position 2 way
blocking valve
normally open
Solenoid operated
2 position 2 way valve
normally closed
262
264
