Section 4 • Repair ProceduresJanuary 2012
Part No. 228901 GS-30 • GS-32 • GS-46 • GS-47 4 - 37
6-3
Steer Bellcrank
How to Remove the Steer
Bellcrank
1 Remove the steer cylinder. See 6-2,
How to
Remove the Steer Cylinder.
2 Remove the retaining fasteners from the steer
links at each end of the bellcrank.
Note: While removing the retaining fasteners, take
note of the quantity and location of the spacers
between the bellcrank and the steer links.
3 Center a lifting jack under the drive chassis at
the steer end.
4 Raise the machine approximately
14 inches / 36 cm. Place blocks under the
chassis for support.
Crushing hazard. The chassis
could fall if not properly supported.
5 Turn the yokes to the side so the bellcrank can
be removed.
6 Remove the bellcrank from the machine.
Note: While removing the bellcrank from the
machine, take note of the quantity and location of
the spacers between the bellcrank and the steer
links.

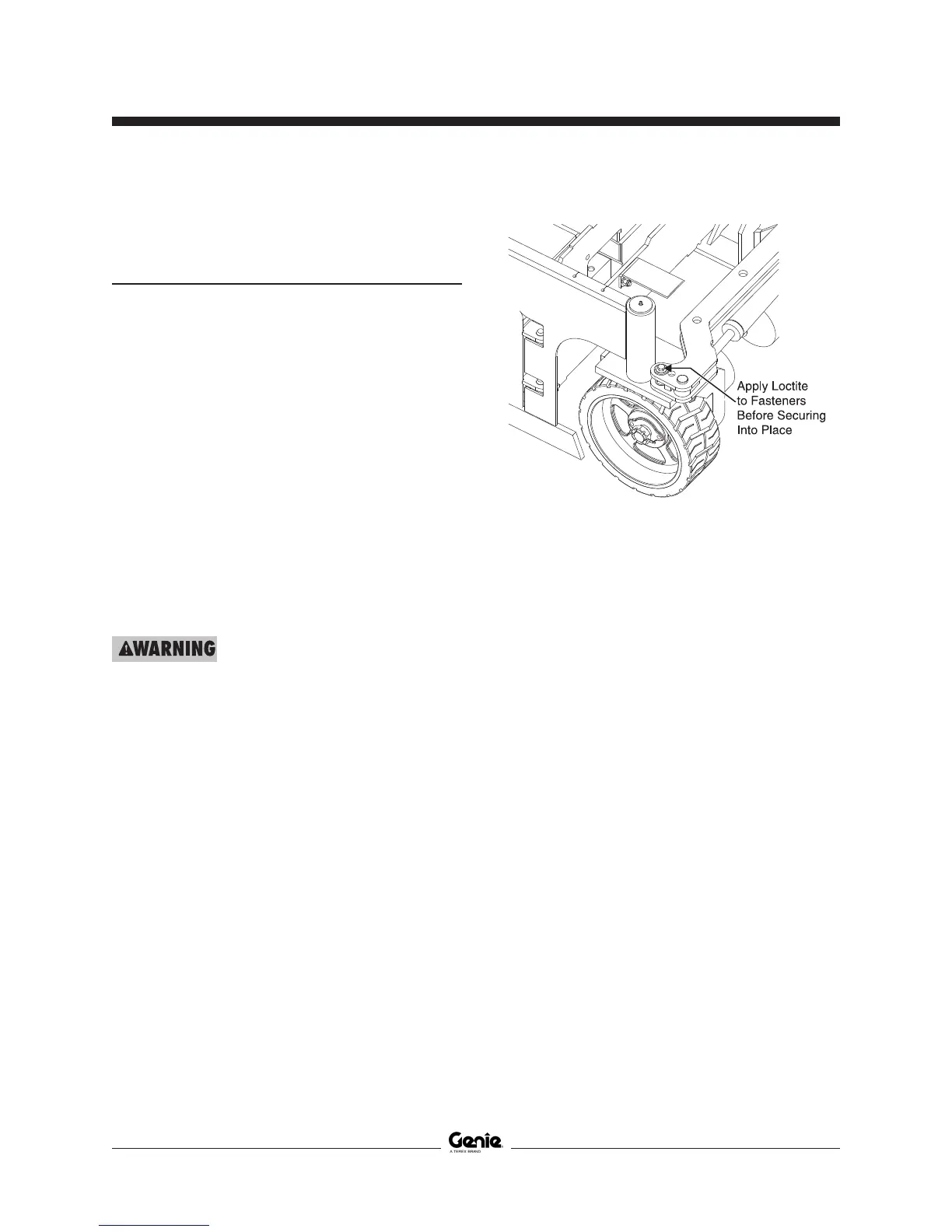

Note: Before re-installing the steer bellcrank onto
the machine, apply a small amount of Loctite onto
the threads of the fasteners. Torque the fasteners
to 31 ft-lbs / 42 Nm.
