January 2012Section 4 • Repair Procedures
4 - 26 GS-30 • GS-32 • GS-46 • GS-47 Part No. 228901
INSIDE
COIL
OUTSIDE
COIL
1
2
Y39
Y40
Note: 'alpha-numeric' callouts
refer to corresponding notes
on the electrical schematic
Note: 'alpha' callouts refer
to corresponding notes on
the hydraulic schematic
BA
BB
MANIFOLDS
5-6

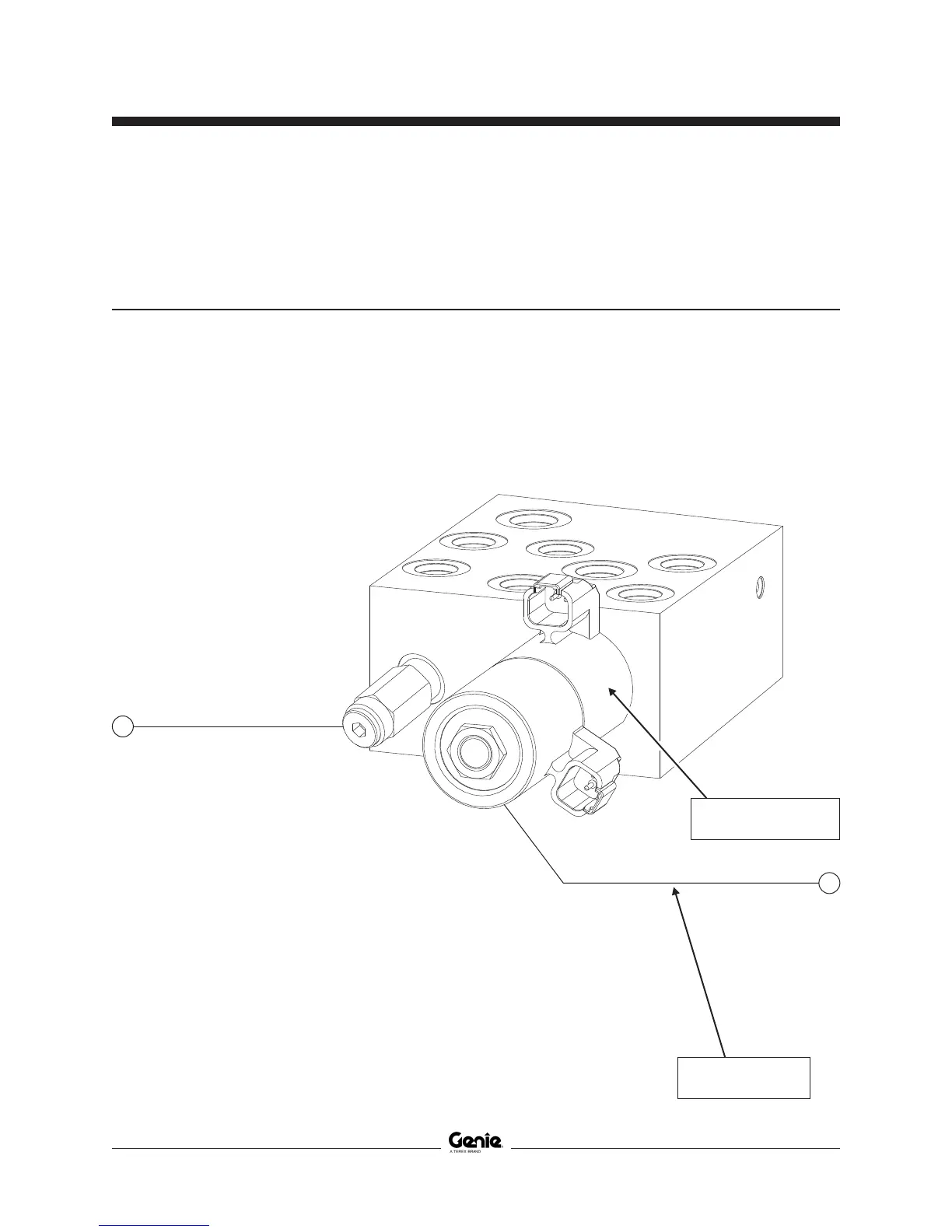

Outrigger Function Manifold Components -
GS-3232
The outrigger function manifold is mounted behind an inspection door on the battery side of the machine.
How to Install a Valve Cartridge
1 Dip the cartridge in clean oil to lube the O-rings.
2 Screw the cartridge in by hand until the top
O-ring is met, then torque to specification.
3 If required, install the valve coil(s) onto the
valve stem. Install the coil nut onto the valve
stem and torque to specification.
Index Schematic
No. Description Item Function Torque
— Coil nut (item BA) ................................................................................................................. 4-5 ft-lbs / 5-7 Nm
1 Solenoid valve, 3 position 4 way ............... BA ...................... Outrigger extend/retract ......... 25 ft-lbs / 34 Nm
2 Relief valve,
3500 psi / 241 bar maximum ..................... BB ...................... Outrigger circuit ...................... 20 ft-lbs / 27 Nm
