16 Install the fasteners removed in 14 to the
number 1 inner arm pivot bracket and chassis.
Tip-over hazard. Failure to install
the fasteners securing the number
1 inner arm pivot bracket to the
chassis, could result in the
machine tipping over, causing
death or serious injury.
17 Connect the battery pack to the machine.
18 Turn the key switch to the ground control
position.
19 Press and hold the ground control scroll up and
scroll down buttons.
20 Pull out the red Emergency Stop button to the
on position at the ground controls.
21 Using the ground control menu buttons,
navigate to Service Override Mode. Select
Service Override Mode.
Note: The machine must be in Service Override
Mode to raise the platform. While in Service
Override Mode, only the GCON will operate with
limited functionality. The platform will raise a
predetermined amount of time and stop.
22 Raise the platform and return the safety arm to
the stowed position.
23 Fully lower the platform to the stowed position.

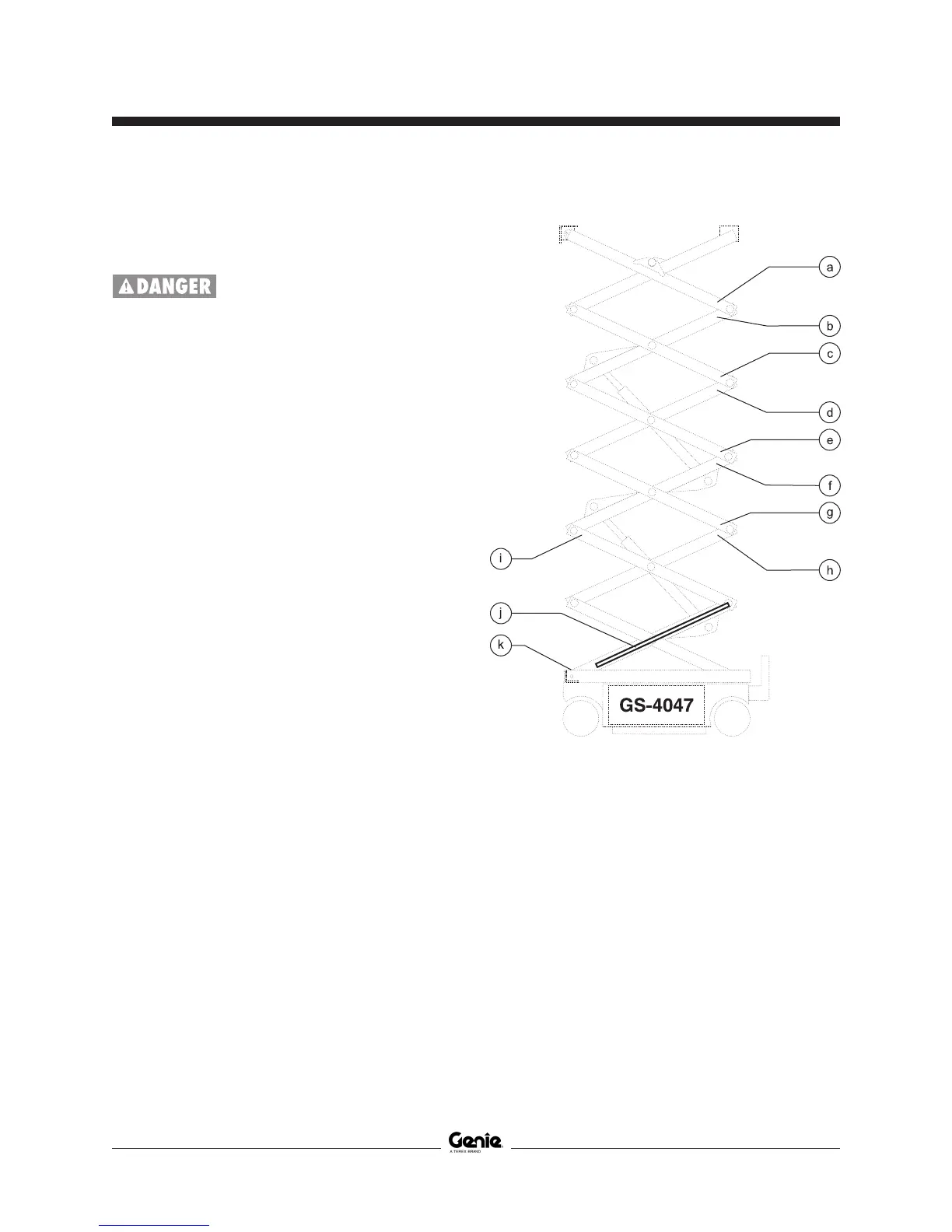

SCISSOR COMPONENTS
Links and platform height sensor legend
a number 6 outer link
b number 5 inner link
c number 5 outer link
d number 4 inner link
e number 4 outer link
f number 3 inner link
g number 3 outer link
h number 2 inner link
i number 2 outer link
j number 1 cable bridge
k platform height sensor
24 Remove the platform. See 10-1,
How to
Remove the Platform.
25 Remove the cables from links a, b and c.
26 Remove the retaining fasteners from the
number 7 pivot pin (index #1).
