January 2012Section 4 • Repair Procedures
4 - 102 GS-30 • GS-32 • GS-46 • GS-47 Part No. 228901
SCISSOR COMPONENTS
14 Remove the fasteners securing the platform
height sensor to the small platform height
sensor bracket.
15 Remove the platform height sensor from the
small angle sensor bracket.
16 Remove the plastic nut securing the squeeze
connector to the large platform height sensor
bracket.
17 Remove the squeeze connector from the large
platform height sensor bracket.

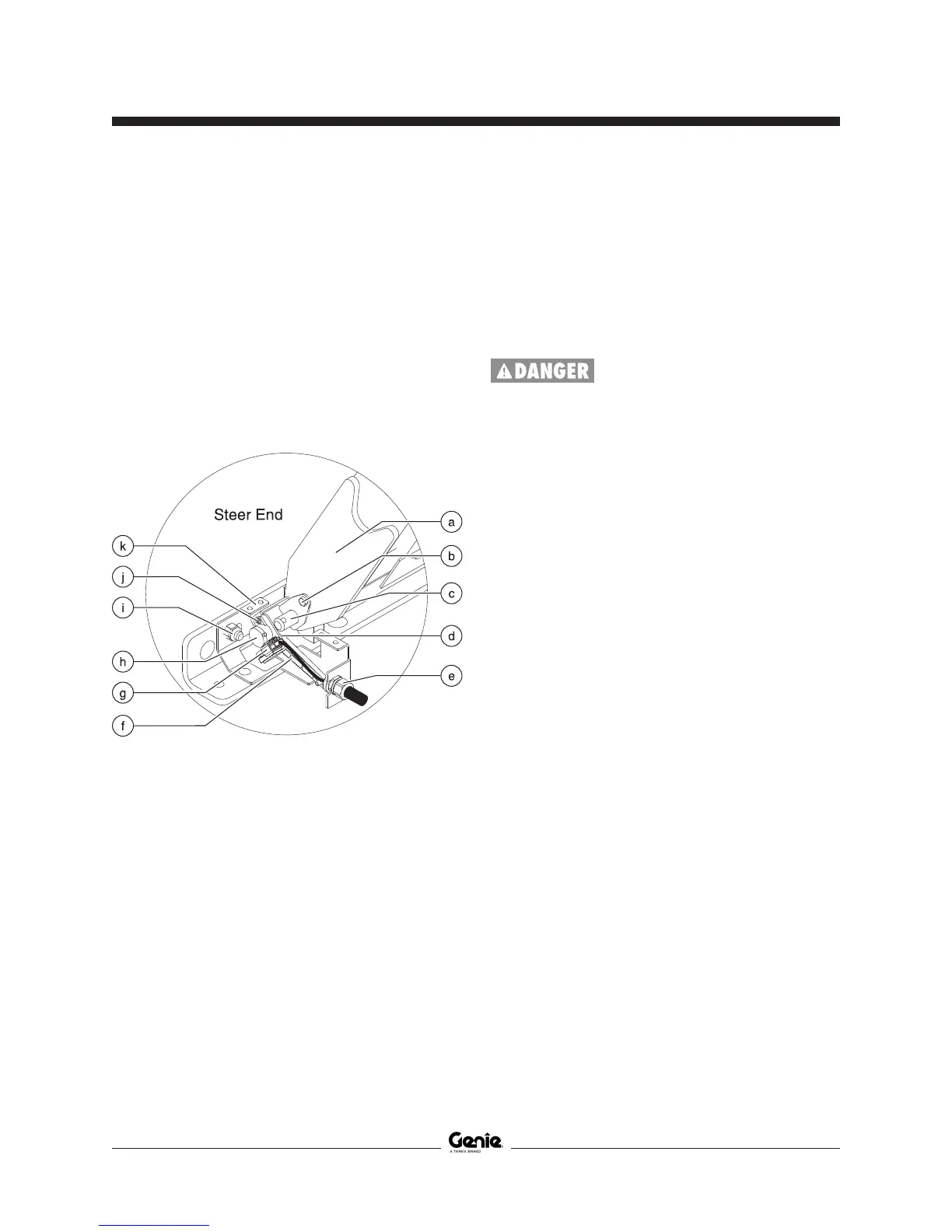

a number 1 inner arm
b fastener
(platform height sensor assembly)
c number 1 pivot pin
d lever arm retaining screw
e squeeze connector
f lever arm
g platform height sensor harness
connection
h platform height sensor
i fastener
(large platform height sensor bracket)
j fastener (platform height sensor)
k platform height sensor assembly
18 Remove the fasteners securing the large
platform height bracket to the number 1 inner
arm pivot bracket.
19 Remove the large platform height sensor
bracket from the number 1 inner arm pivot
bracket.
Tip-over hazard. Failure to install
the fasteners securing the large
platform height sensor bracket and
number 1 inner arm pivot bracket
to the chassis, could result in the
machine tipping over, causing
death or serious injury.
To Next Page
