Genie GC-1530 User Manual

Section 3 • Scheduled Maintenance ProceduresJune 2012
Part No. 228901 GS-30 • GS-32 • GS-46 • GS-47 3 - 29
CHECKLIST C PROCEDURES
GS-3232 and GS-4047
Result: The voltage reading of the pressure
transducer is between 0.2V and 6.25V. The
pressure transducer is functioning properly.
Result: The voltage reading of the pressure
transducer is between 0V and 0.2V or greater
than 6.25V. The pressure transducer is not
functioning properly. Replace the pressure
transducer. Refer to Repair Procedure 9-5,
How to Remove the Pressure Transducer (if
equipped).
11 At the ground control, turn the key switch to the
off position and push in the red Emergency
Stop button to the off position.
12 Remove the probes from the rubber boot of the
pressure transducer cable.
Platform Height Sensor
13 Working at platform height sensor assembly,
follow the platform height sensor cable to its
end point at the chassis deck.

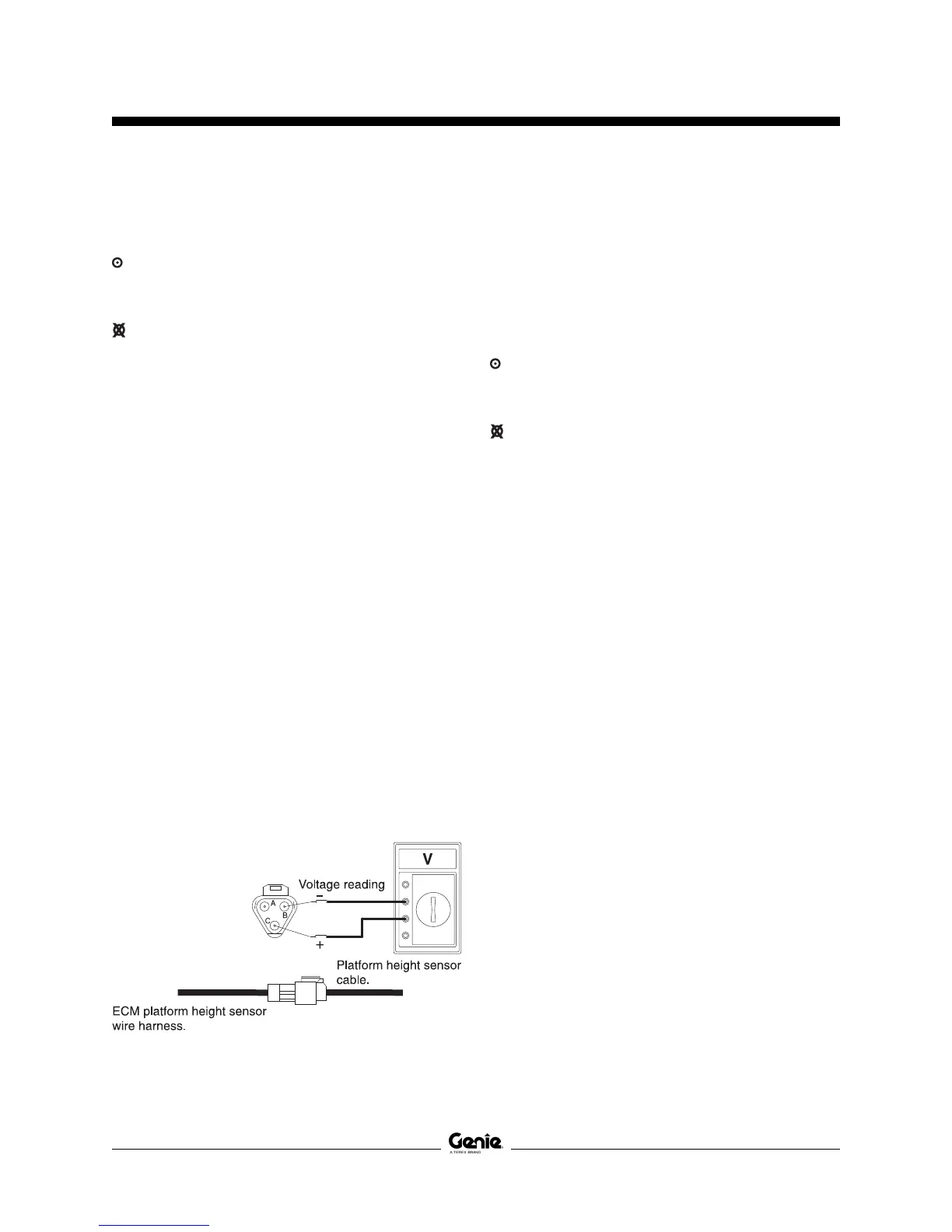

14 Using the positive post of a multimeter probe,
securely fit the post into pin C of the platform
height sensor cable rubber boot. Refer to the
illustration below.
15 Using the negative post of a multimeter probe,
securely fit the post into pin B of the platform
height sensor cable rubber boot. Refer to the
illustration below.
16 Turn the key switch to ground control and pull
out the red Emergency Stop button to the on
position.
17 Using the multimeter, measure the voltage
reading of the pressure transducer at pin
C and B.
Result: The voltage reading of the platform
height sensor is between 1V and 4V. The
platform height sensor is functioning properly.
Result: The voltage reading of the platform
height sensor is 0V or above 5V. The platform
height sensor is not functioning properly.
Replace the platform height sensor. Refer to
Repair Procedure 9-7, How to Disassemble the
Platform Height Sensor Assembly (if equipped).
18 At the ground control, turn the key switch to the
off position and push in the red Emergency
Stop button to the off position.
19 Remove the probes from the rubber boot of the
platform height sensor cable.
20 Turn the key switch to ground control and pull
out the red Emergency Stop button to the on
position.
21 Raise the platform 12 inches / 30.5 cm.
22 Return the safety arm to the stowed position.
23 Lower the platform to the stowed position.
24 Turn the key switch to the off position.
